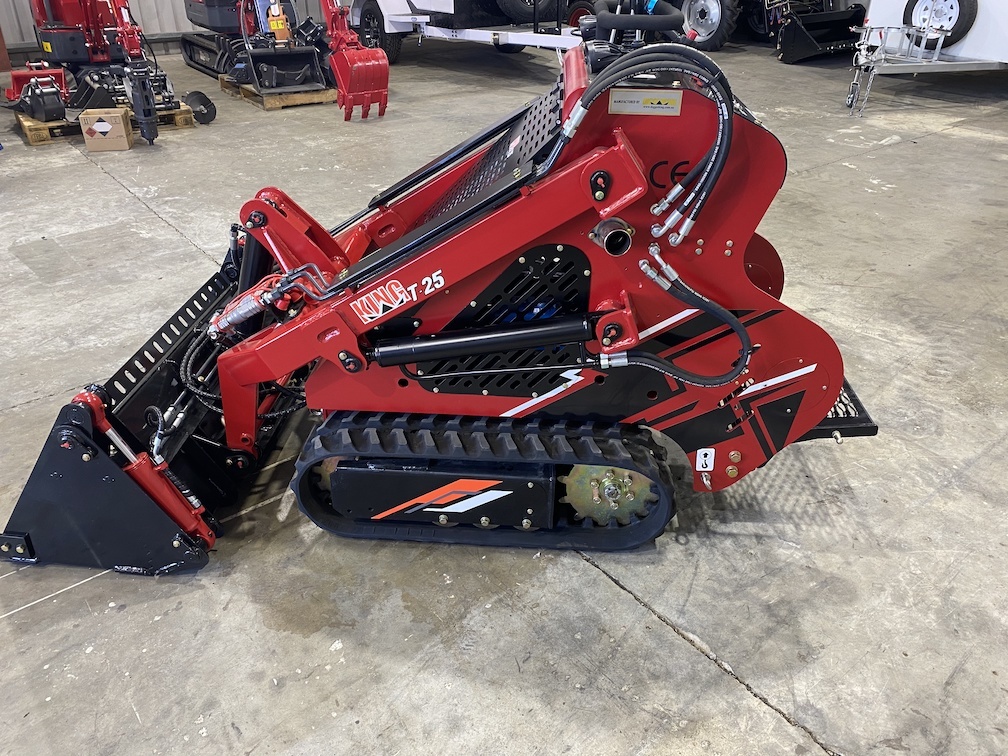

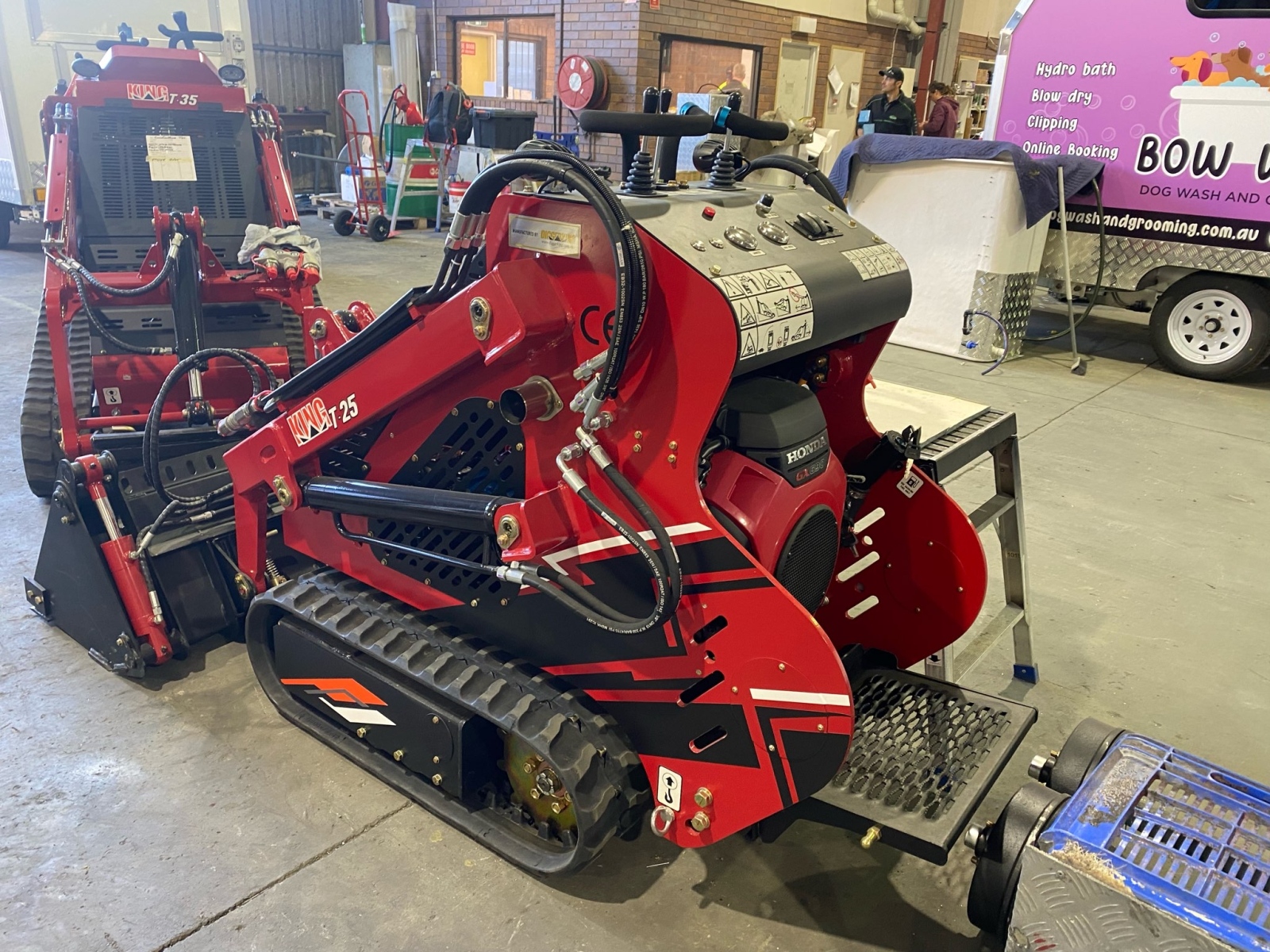

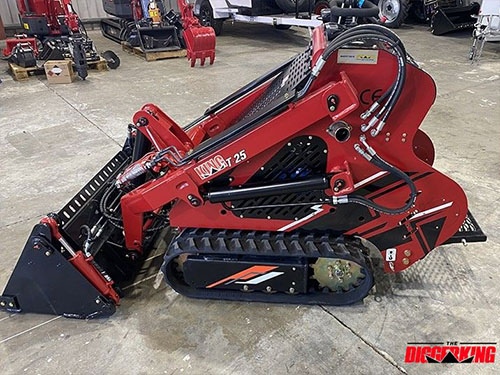

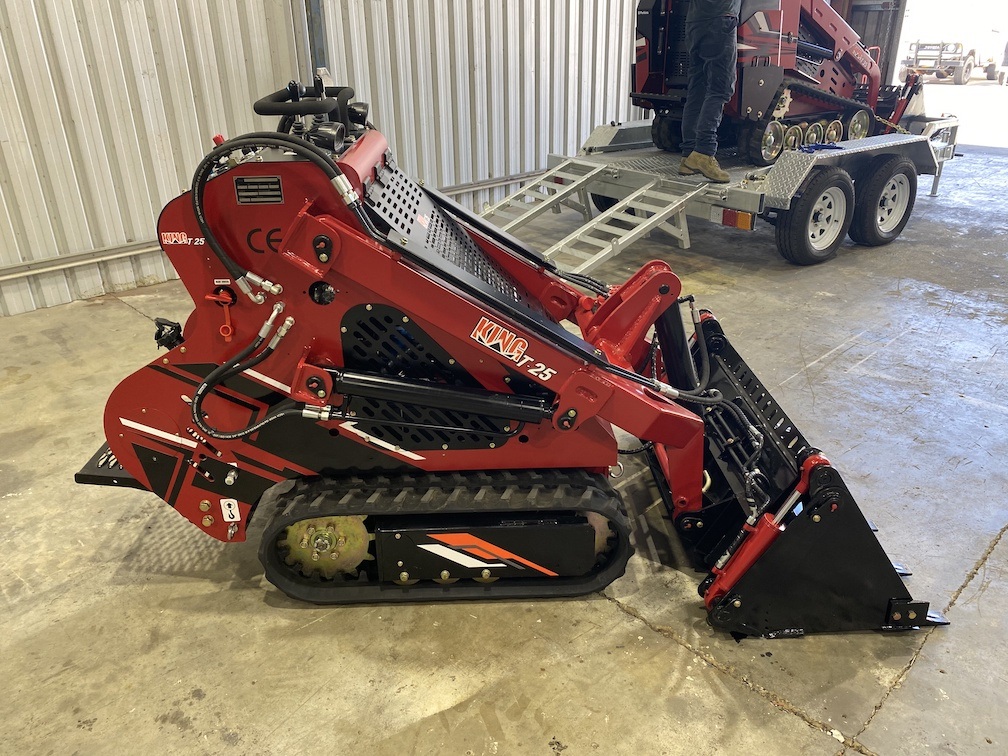

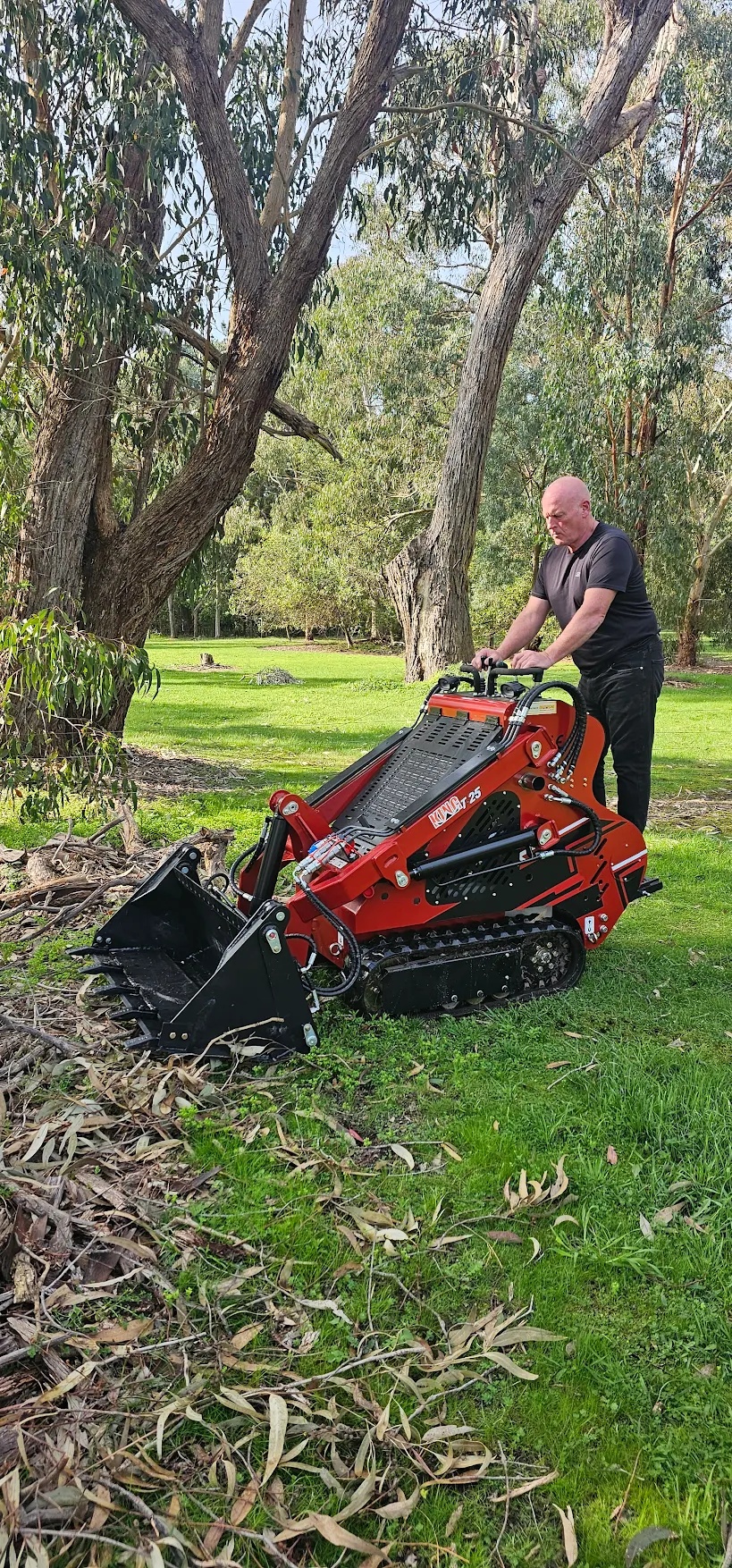

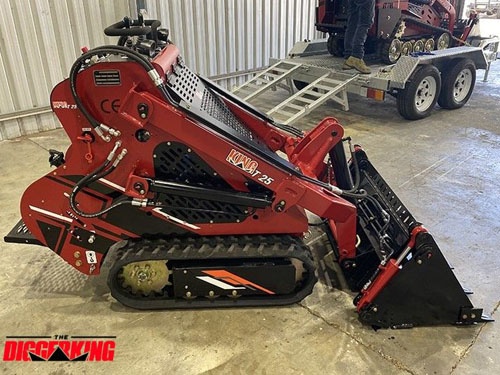

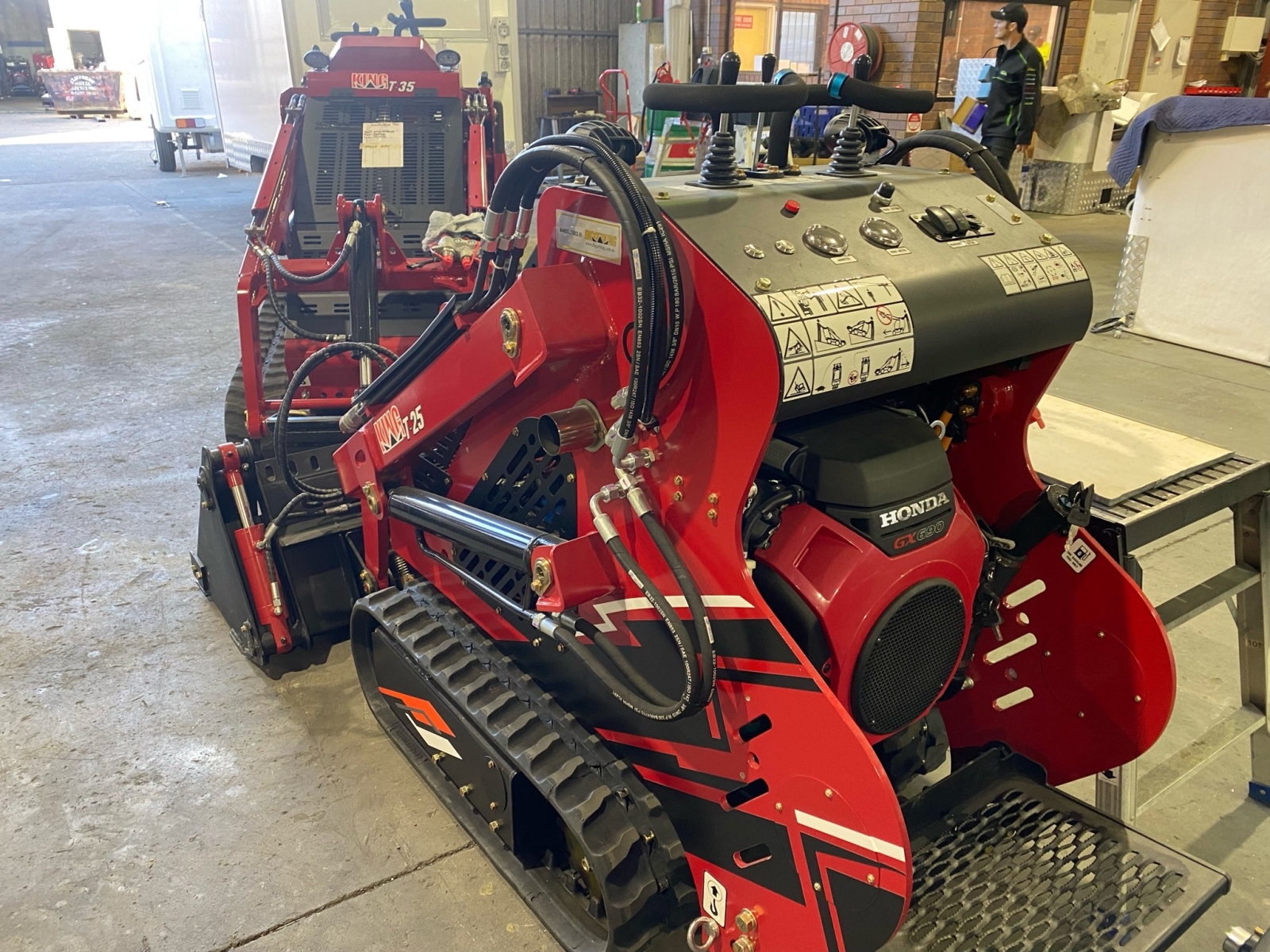

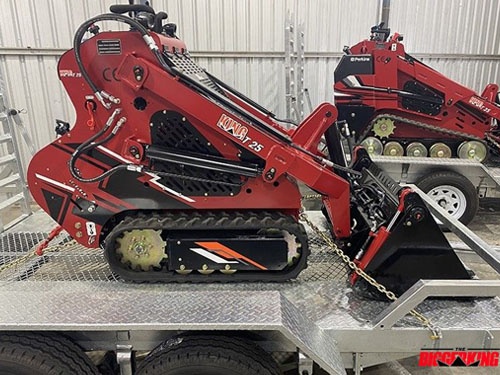

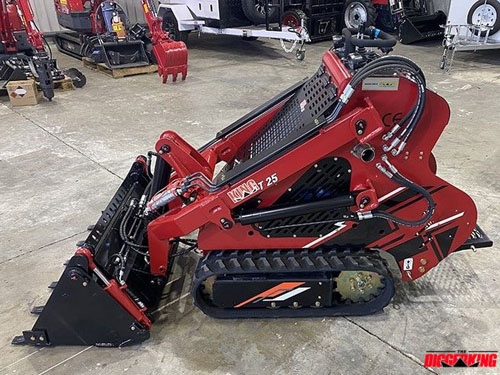

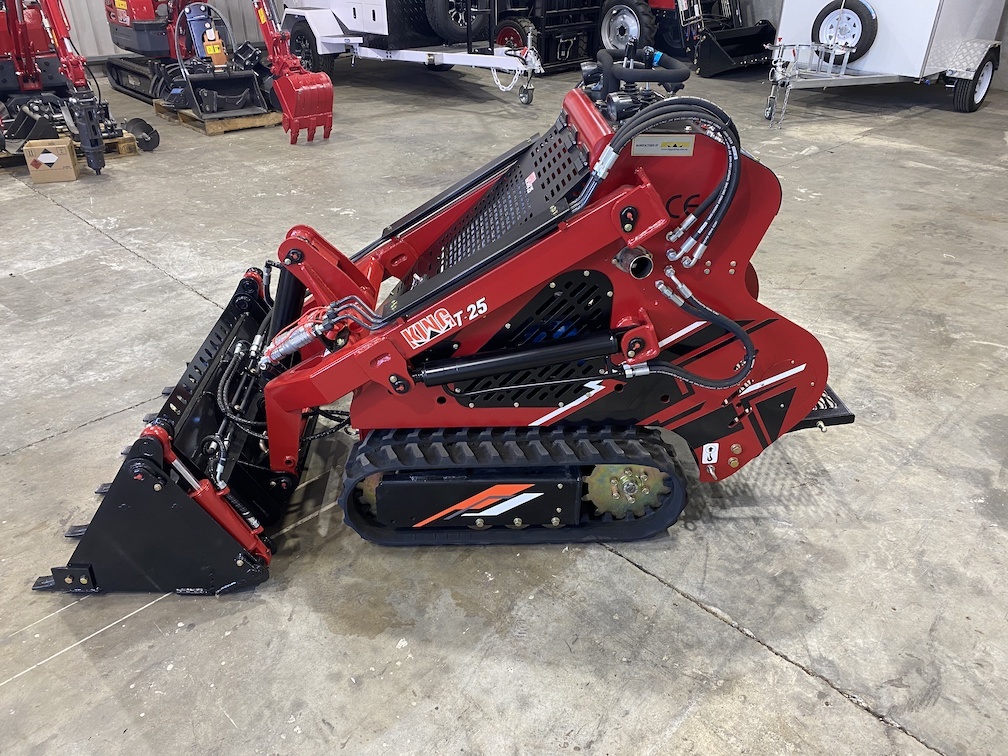

The Digger King Tracked 25 HP Mini Loader – 830mm Wide Mini Skid Steer Loader

At only $19,990 + GST including 4 in 1 bucket or around $99 per week, scroll down for all inclusions


Are you a contractor looking to speed your jobs up? Perhaps you already own another Digger King product such as the King 1.0 or King 1.7 and you want your own mini combo set up.

Well, maybe the Tracked 25 HP Mini Loader is just right for you. Priced affordably and available with the option to add a trailer, it is compliable with the digga range of attachments; meaning the jobs this machine can be used for is endless.

Not to mention how the Tracked 25 HP Mini Loader looks – this machine is a modern design and eye catching, you will be the envy of everyone who sees it, plus it puts your business in a new professional light.



It includes all of our standard features, plus everything you need to get started with your Tracked 25 HP Mini Loader with 4 in 1 bucket

  • Load capacity – 300 kg
     Weight – 890 kg
     Dimensions – 1740 mm (L) x 830mm (W) x 1370 mm (H)
     Warranty – 12 months parts and labour, 36 month parts warranty



Video Tour of Tracked 25 Machine and Implements

Time: 5min 14sec

Video Tour of Tracked 25 Premium Trailer Package

Time:3min 28sec



Tracked 25 HP Mini Loader Package Total Price Only $19,990 + GST or around $99 per week on finance

Tracked 25 HP Mini Loader Package Inclusions:

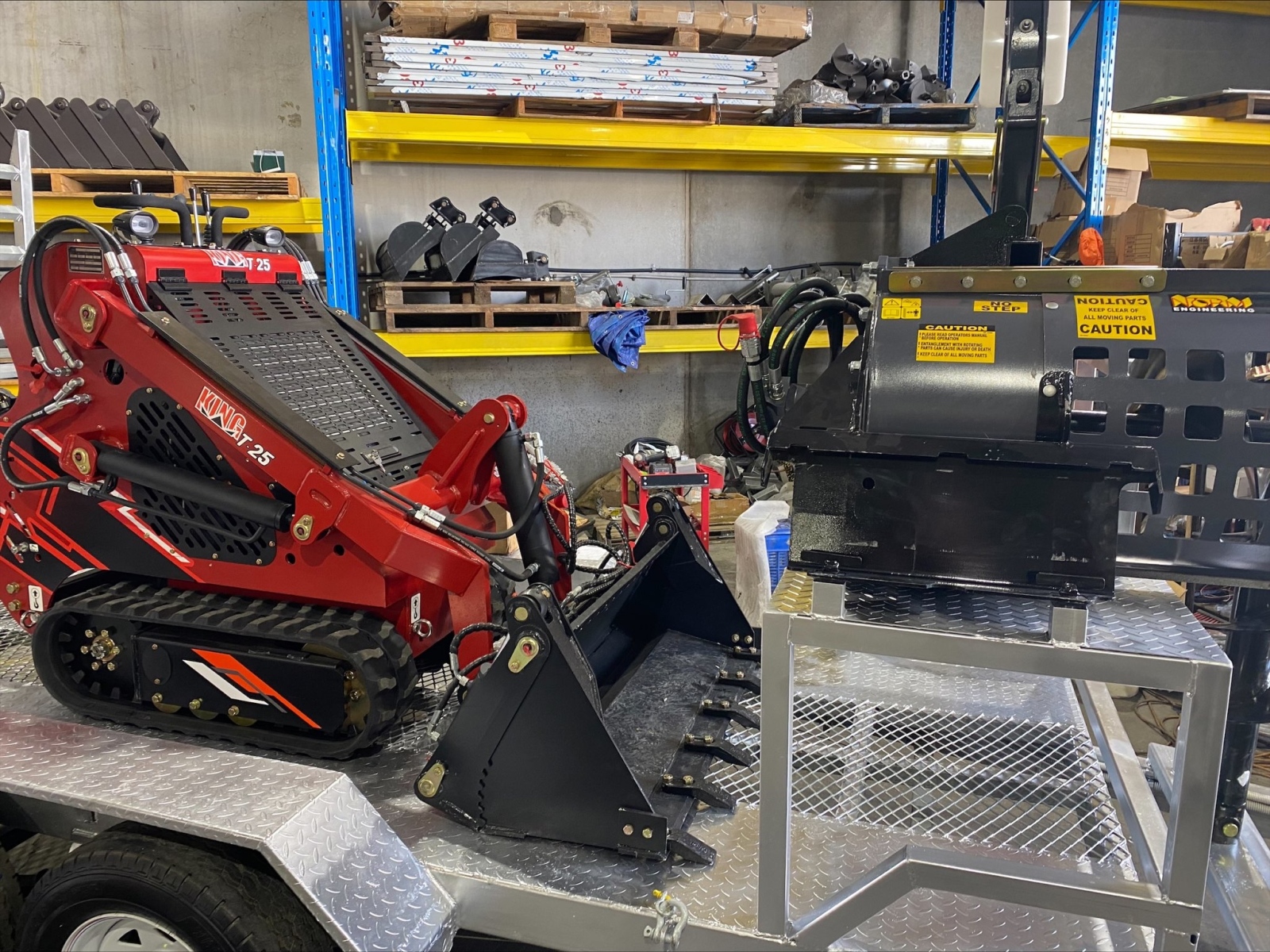

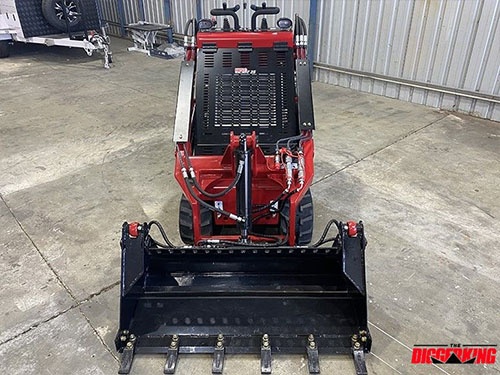

  •  4 in 1 Bucket – This allows your Tracked 25 HP Mini Loader to Doze, Dig, Dump, Carry, Clamp, Grab, Optional Teeth

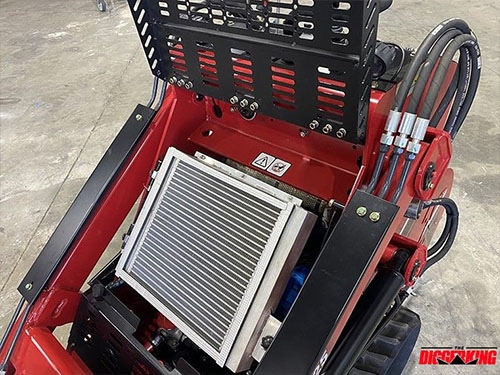

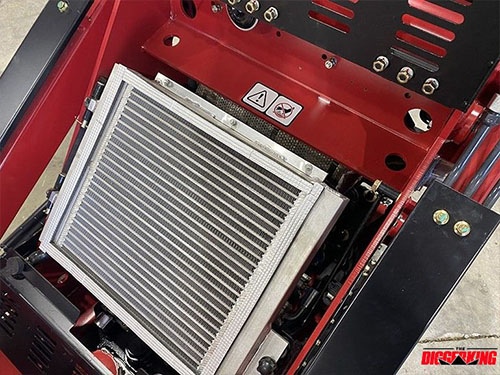

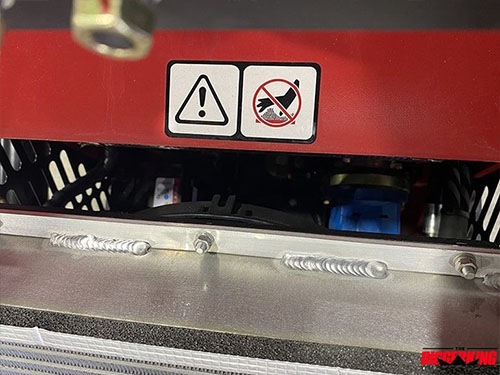

  •  Large Alloy Radiator with Cooling Fan – Efficient Cooling of Engine and Hydraulic Oil

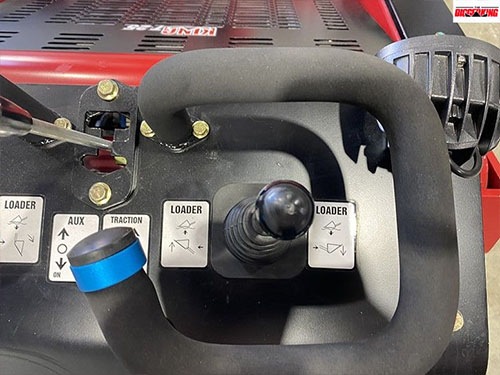

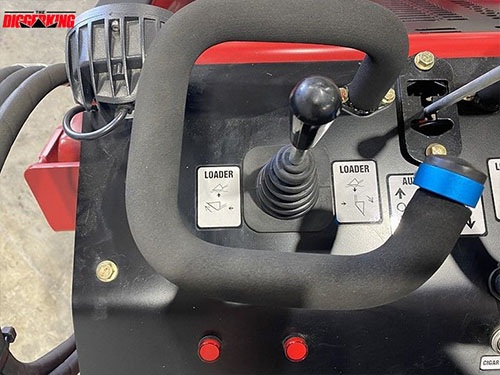

  •  Joystick Steering Control – Manual controls means it is easy to use and manage your Tracked 25 HP Mini Loader
  •  Hydraulic Oil Cooler – This means it keep oil temp lower allowing you to operate longer with no issues
  •  2 Stage Hydraulic Pump System – This means you have Efficient Separation of Power to Attachments, Bucket Controls, and Wheels with your Tracked 25 HP Mini Loader
  •  Auxiliary Hydraulic Outputs – This means you can add many options of external accessories to your Tracked 25 HP Mini Loader

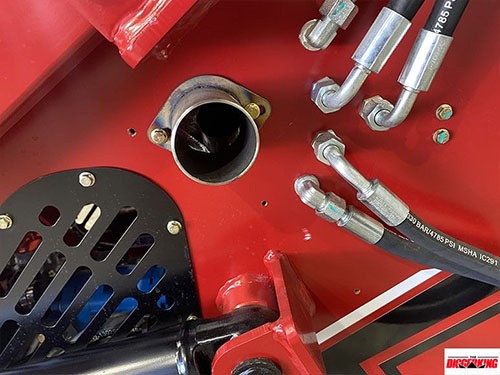

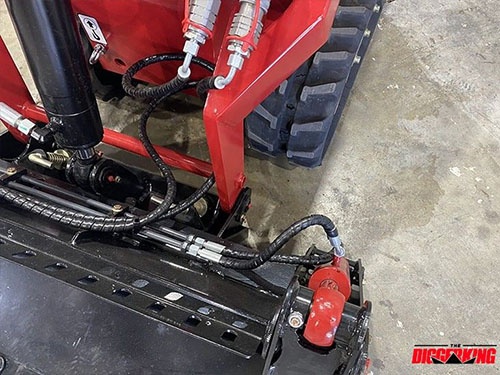

  •  Hose Quick Coupler Fittings – This means it eliminates the chance of dirt and other foreign objects getting into your Tracked 25 HP Mini Loader

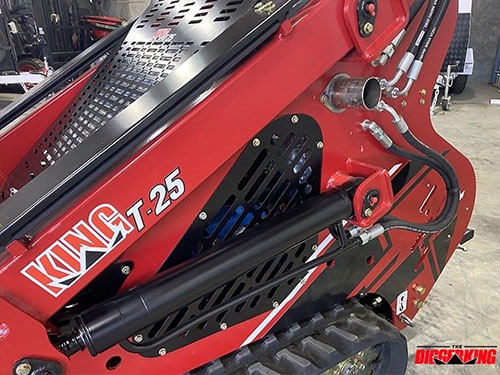

  •  Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows your Tracked 25 HP Mini Loader Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers
  •  CNC Manufacturing and Electrophoresis Paint Process – This gives you the unique Rust Protection and Excellent Finish
  •  Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – This means you get longer working hours between services of your Tracked 25 HP Mini Loader
  •  Muffler Insulation – This allows the engine to operate cooler allowing you to operate longer with your Tracked 25 HP Mini Loader
  •  Hydrostatic Drive Train System – This allows you to do jobs with your Tracked 25 HP Mini Loader easily as the hydraulic power is doing the work for you
  •  Japanese NSK Bearings and Grade 60H Chains – Your Tracked 25 HP Mini Loader is just like Toyota designed – to be unbreakable

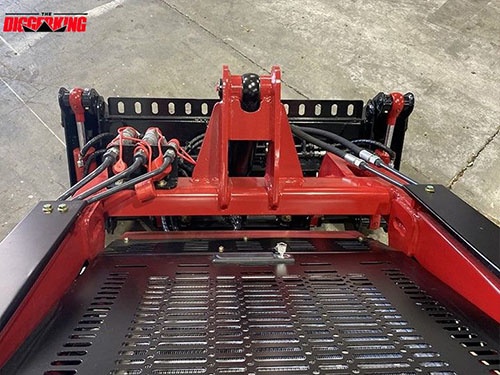

  •  Standard Attachment Mounting Plate – This means you can buy attachments anywhere you like for your Tracked 25 HP Mini Loader or use ones you may have already
  •  Operator Platform Suspension – This means when you are working on your Tracked 25 HP Mini Loader your comfort is number 1, allowing you to work longer and easier day in, day out
  •  Gauges and Warning Lights – These gauges point out if any issues meaning you can stop the machine and rectify before any damage is caused allowing your Tracked 25 HP Mini Loader machine a long, reliable service life.
  •  Service Kit and Tools – Included free is a tool box and service kit, this means you wont have to go digging for tools if you need to service or adjust something on your Tracked 25 HP Mini Loader

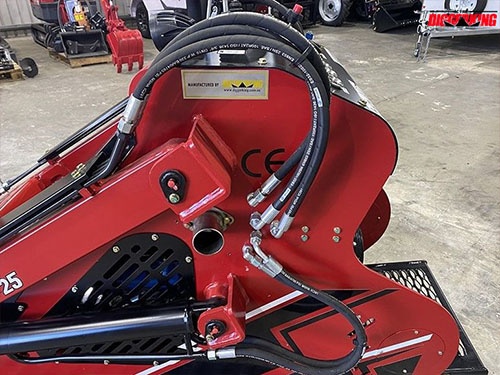

  •  Hose Protection Kevlar sleeving – This prevents burst in hoses once again extending the life of your Tracked 25 HP Mini Loader

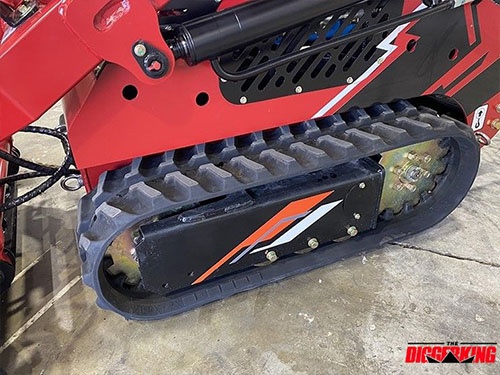

  •  Track Drive with Grease Tensioner and Heavy Duty Re-coil Spring – Tracked 25 HP Mini Loader design gives you better traction and lighter foot print, meaning go anywhere with almost no trace
  •  Engine Access Panel Hinged and Lockable – This gives you easy access to all your components of your Tracked 25 HP Mini Loader
  •  Heat-Treated Pins and Greaseable Bronze Bushes – This gives you longer life for your Tracked 25 HP Mini Loader
  •  Tie Down Locations – Safe Security for Transporting for your Tracked 25 HP Mini Loader
  •  Emergency Stop Switch – Quick and easy to hit in case of any issues while operating the machine, all standard on the Tracked 25 HP Mini Loader
  •  Lift Hook Locations – This means if you have to lift your machine onto a site via a crane etc it can be done easily without any risk to your Tracked 25 HP Mini Loader
  •  Lift Arm Safety Support – This means you are safe when using your Tracked 25 HP Mini Loader

Tracked 25 HP Mini Loader Package Total Price Only $19,990 + GST or around $99 per week on finance

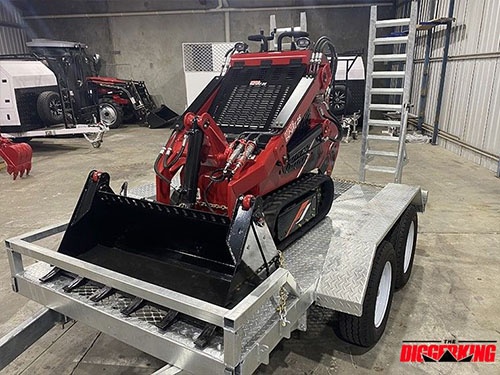

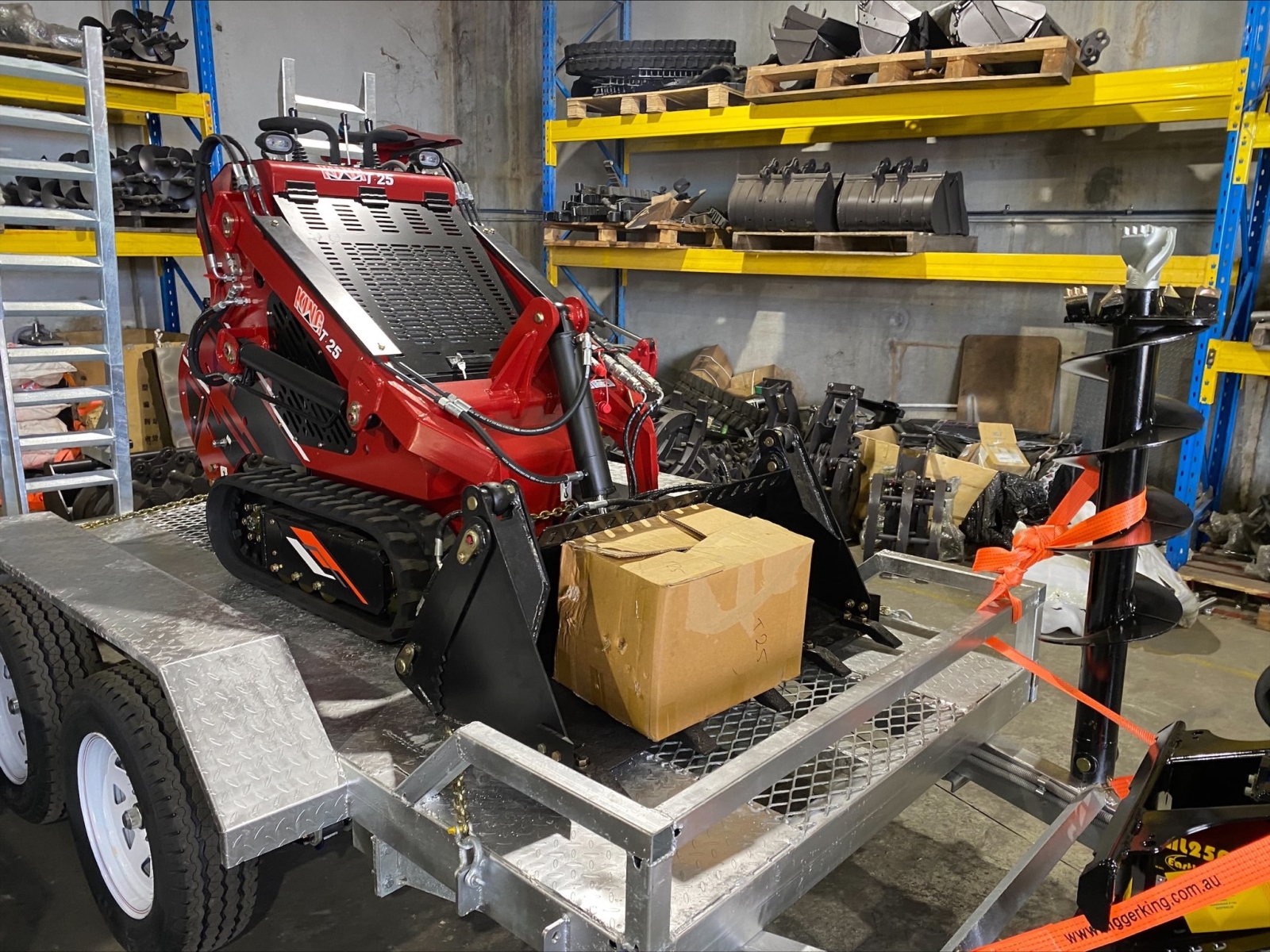

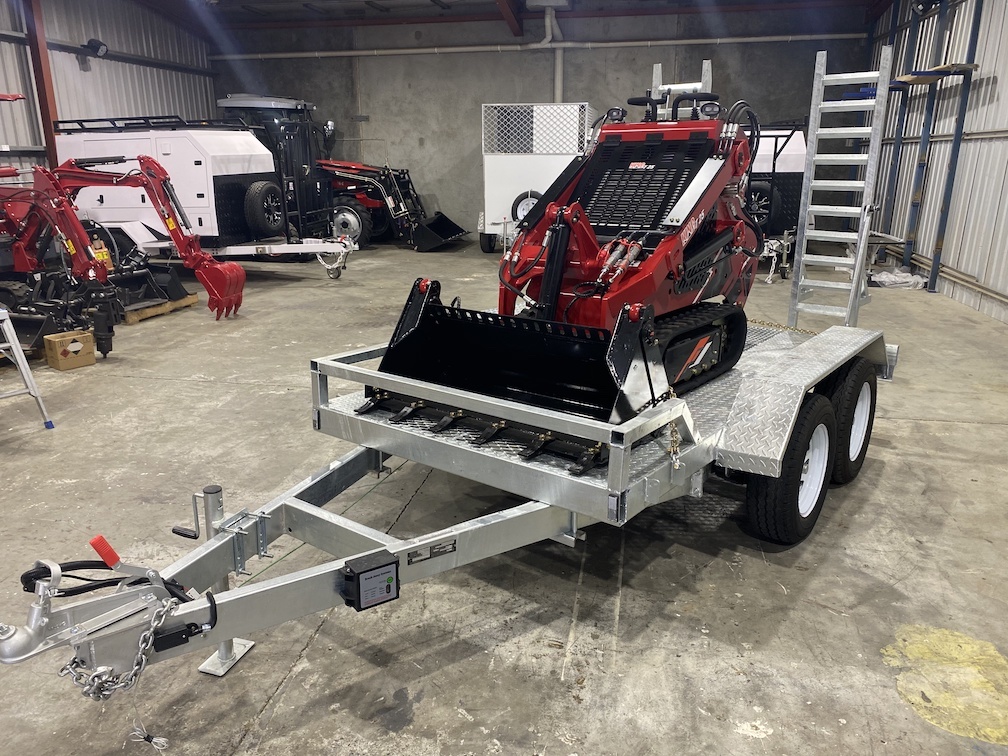

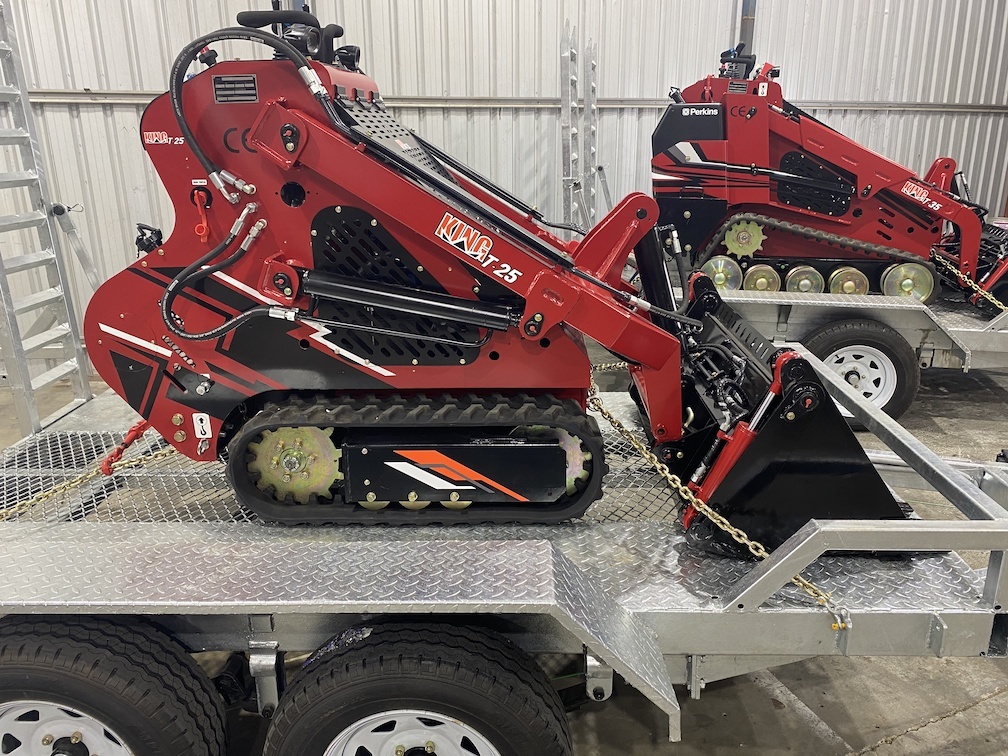

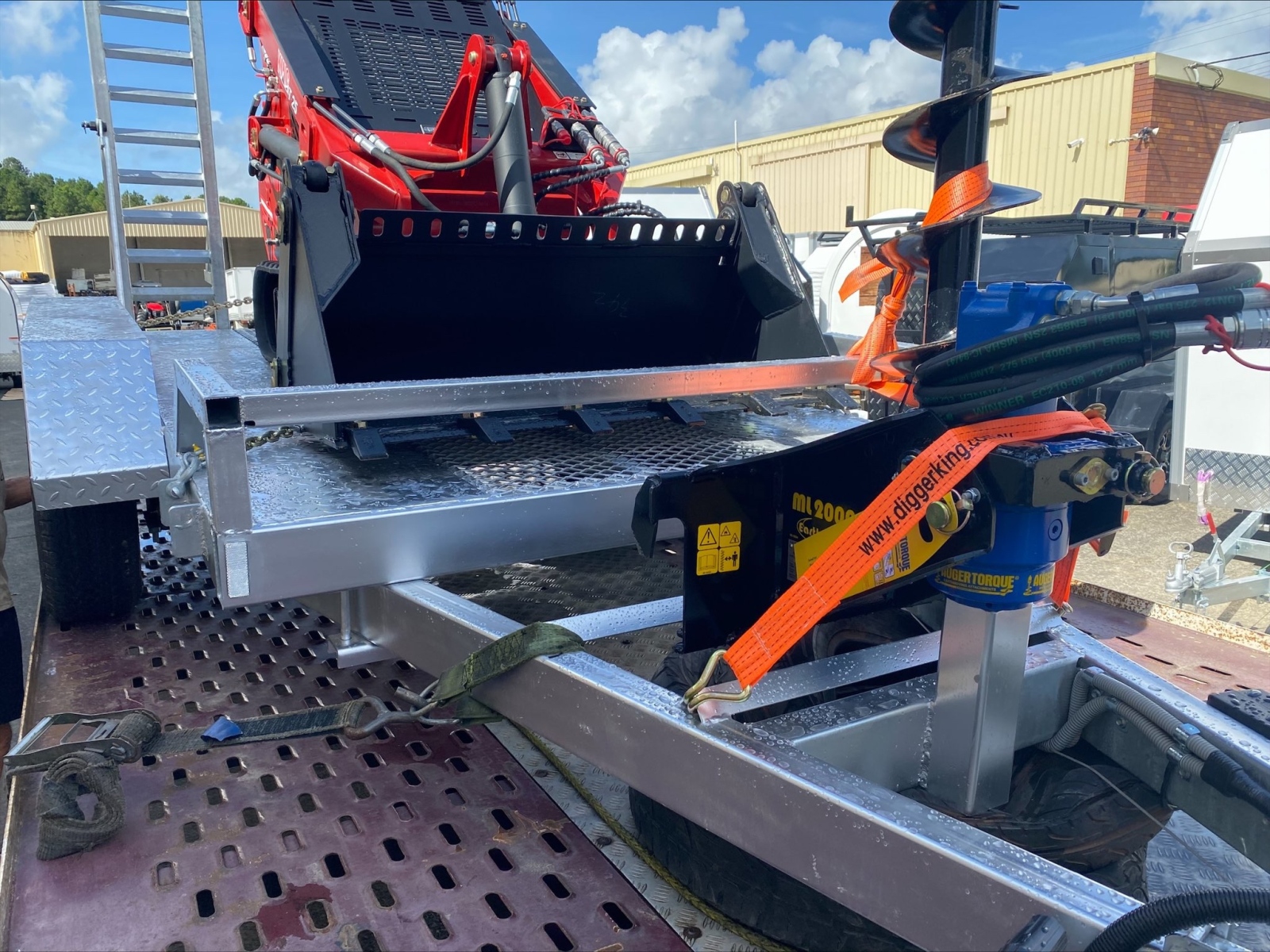

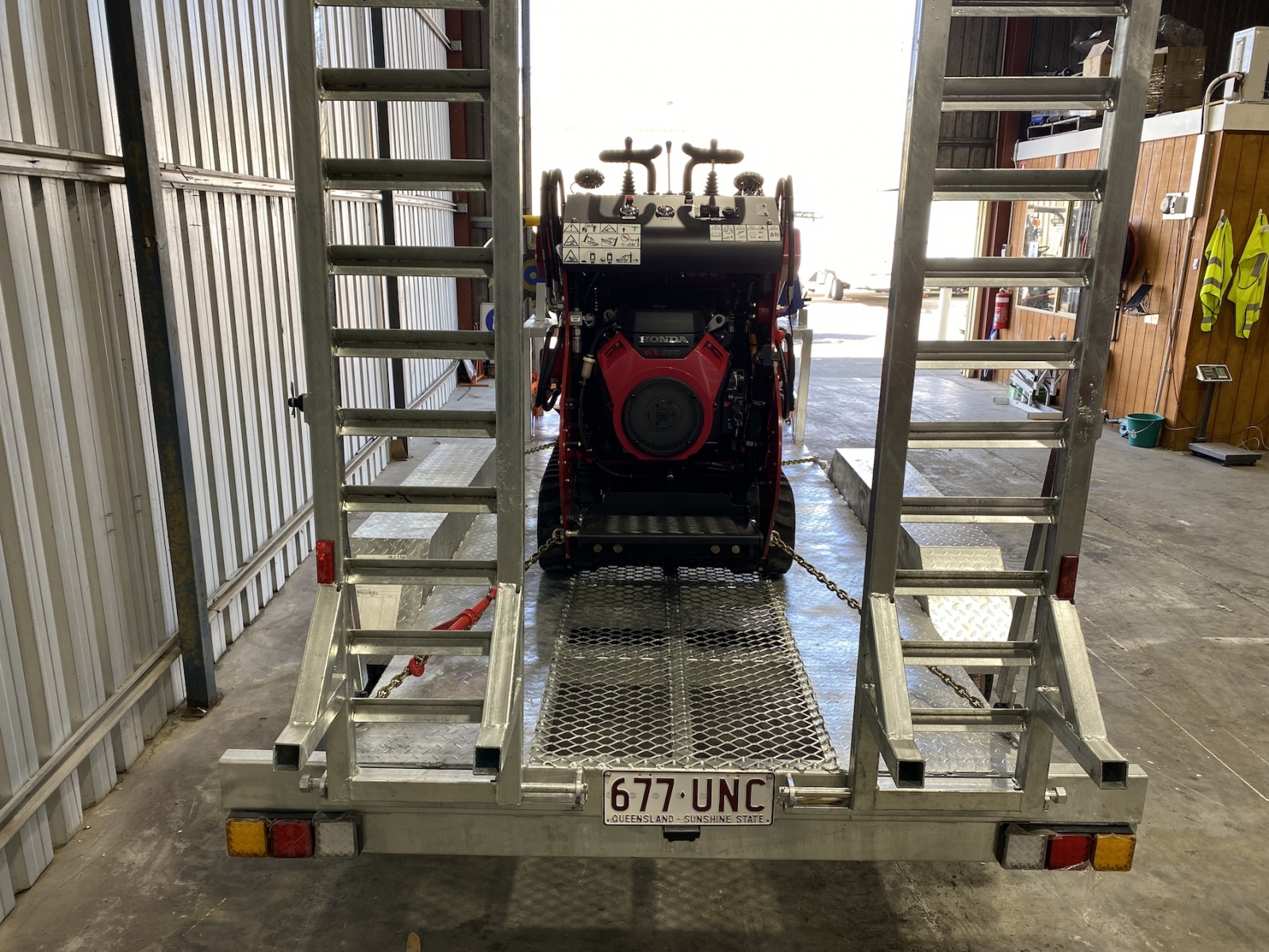

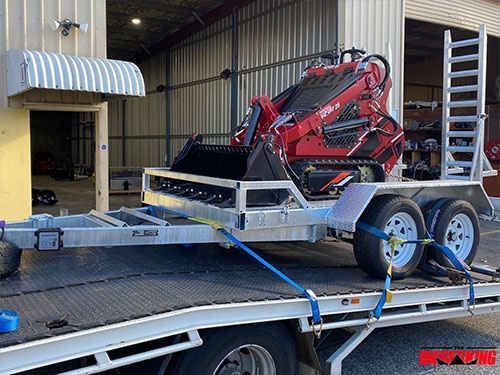

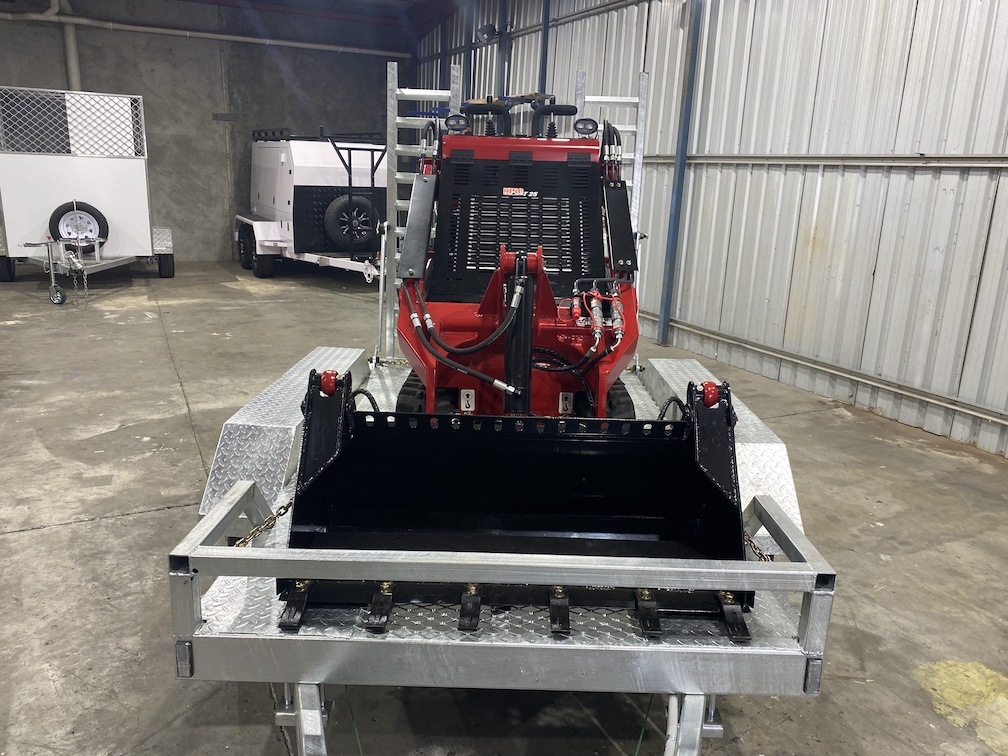

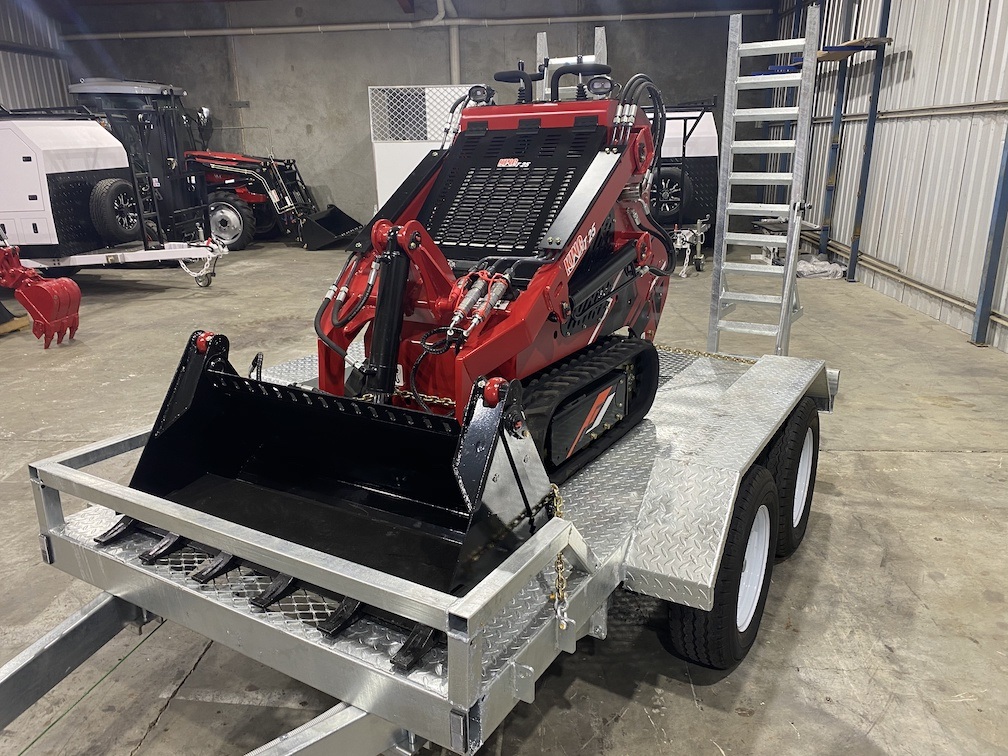

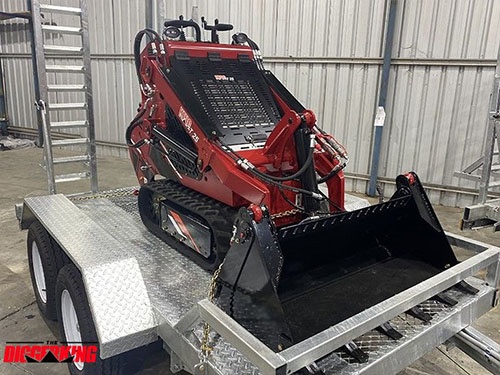

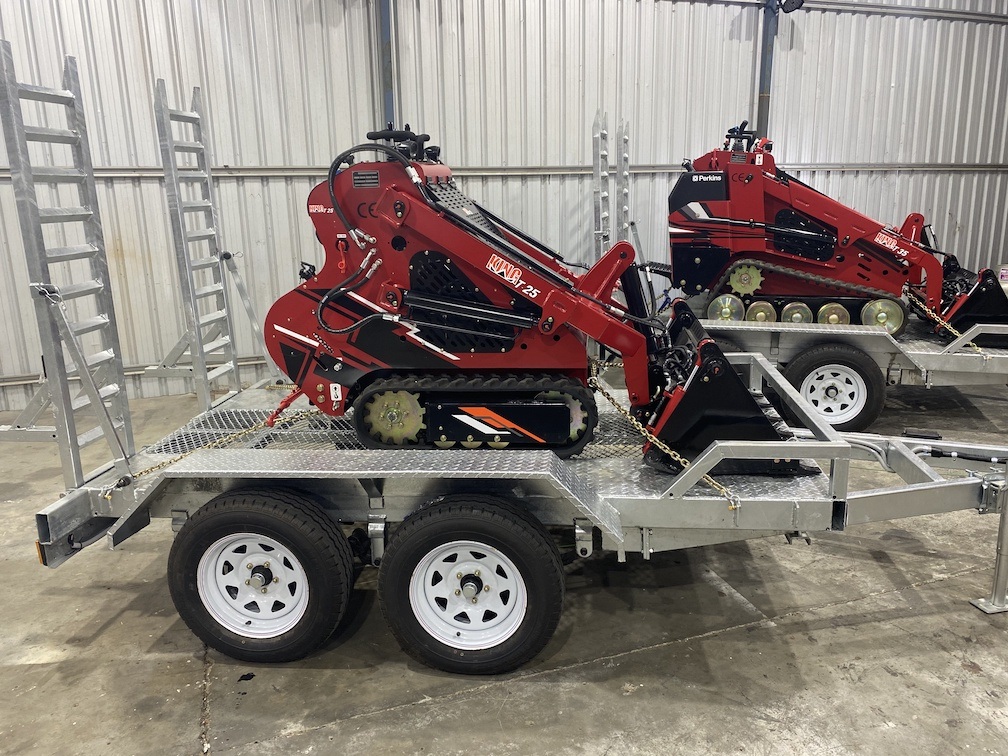

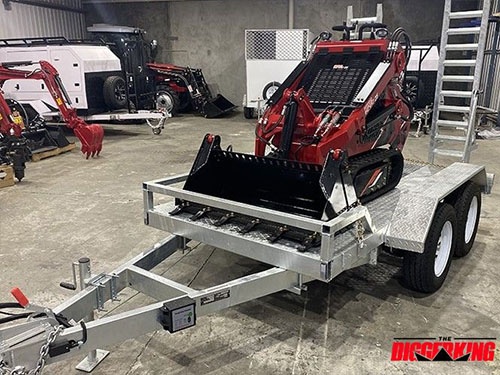

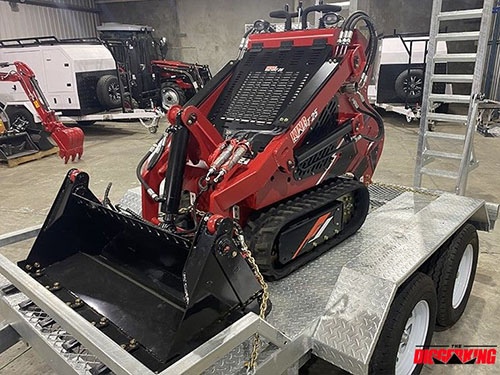

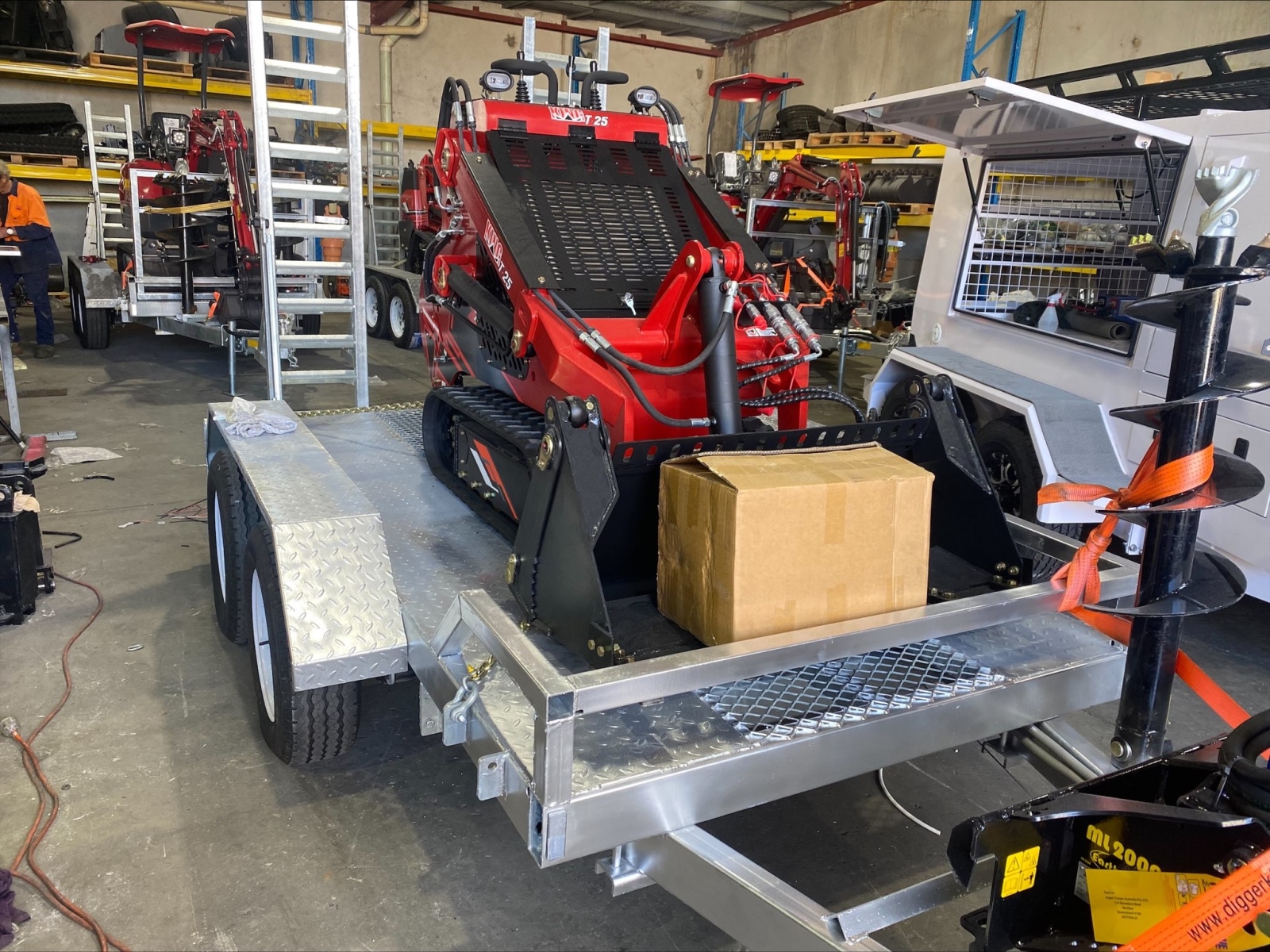

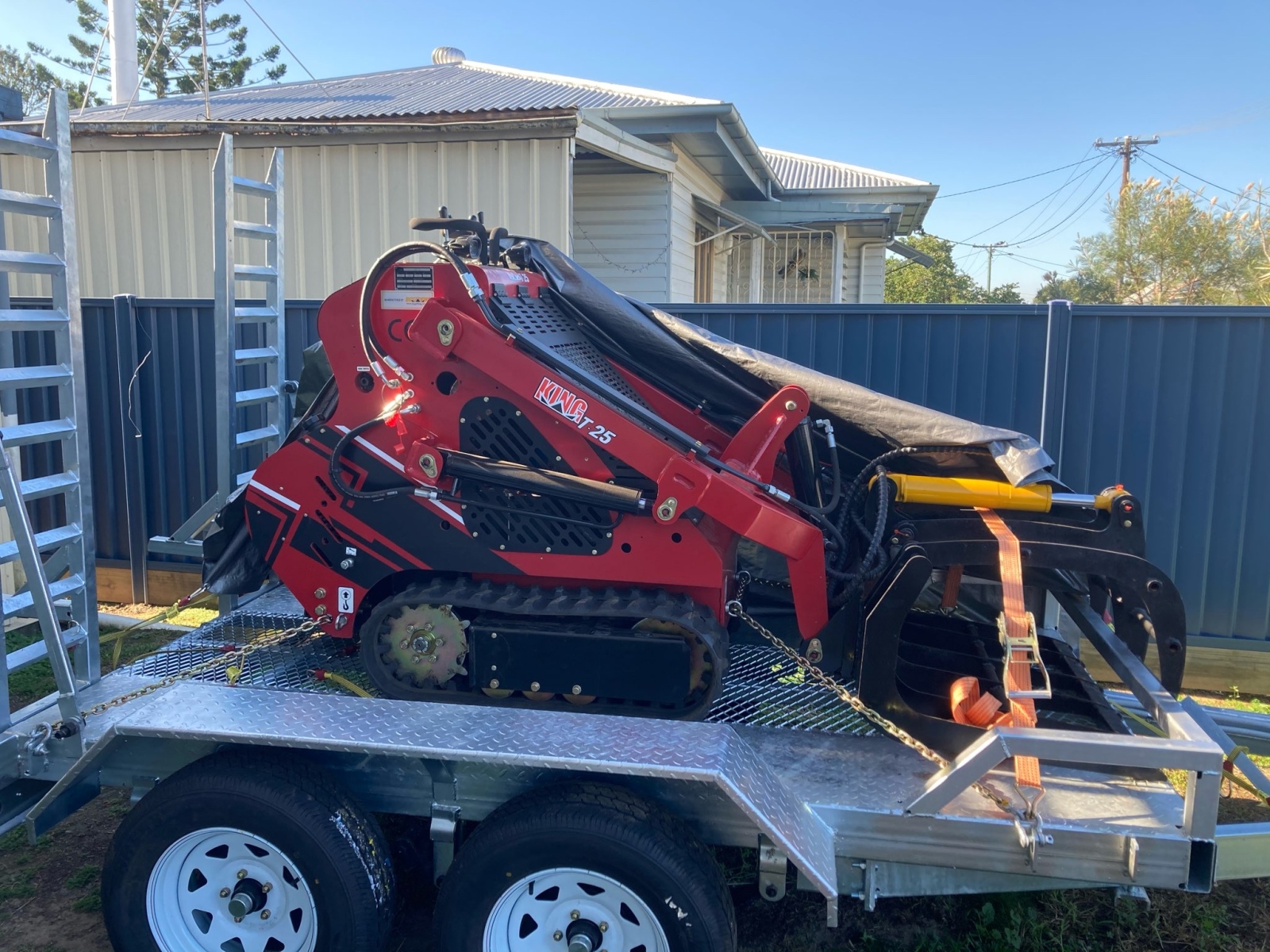

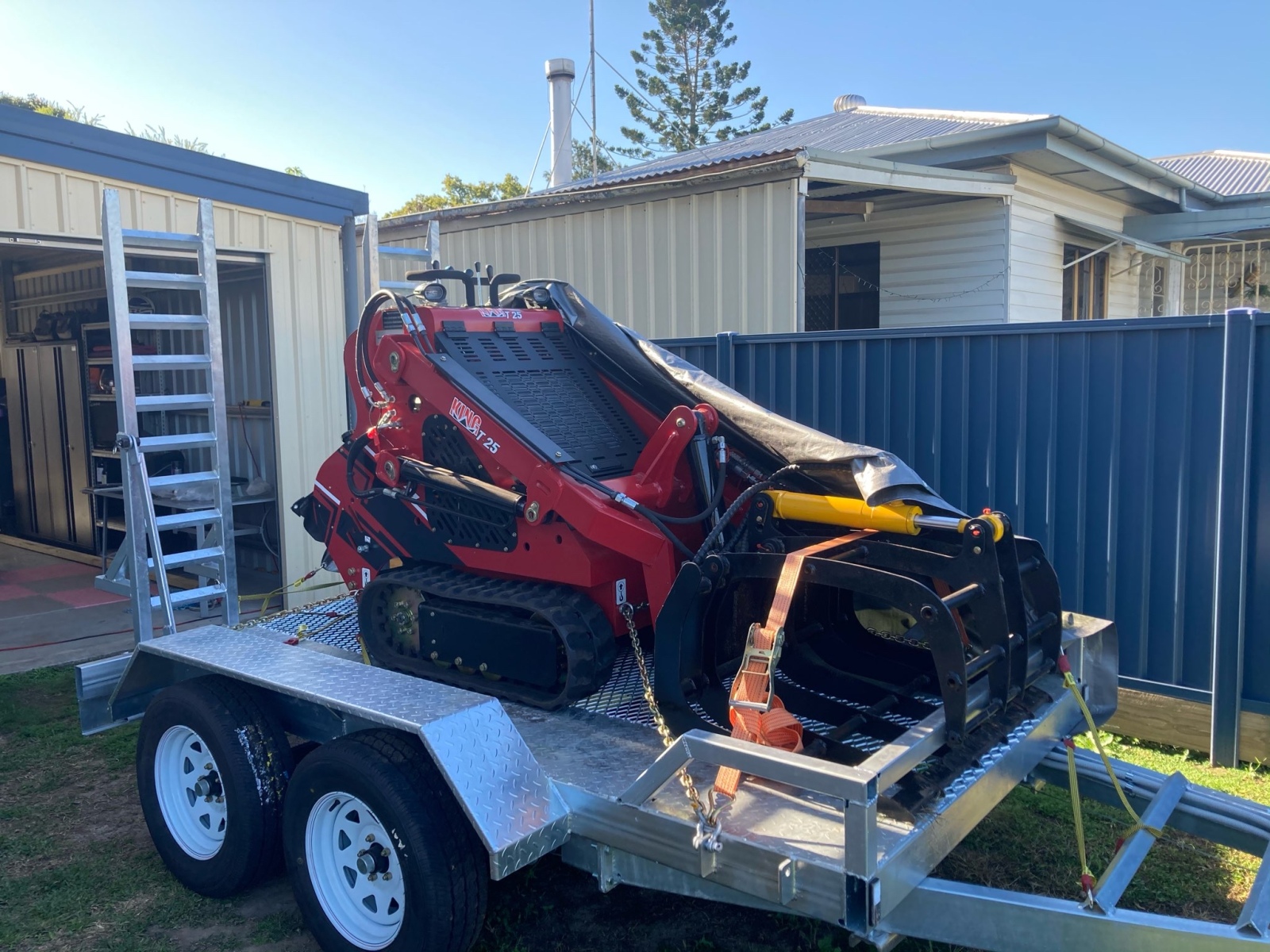

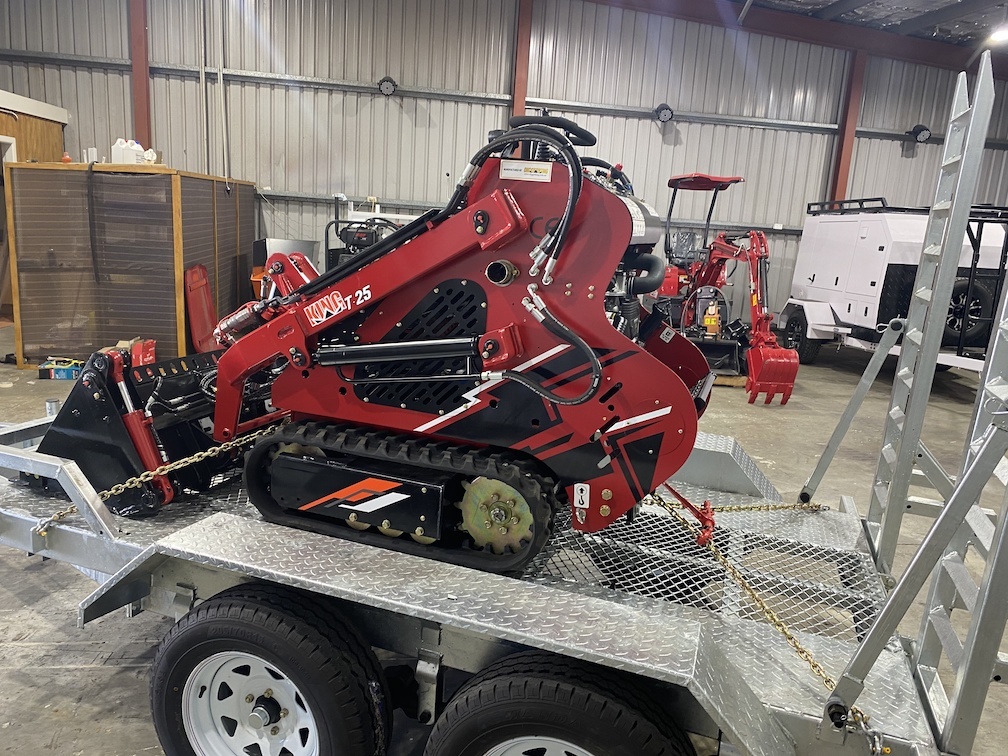

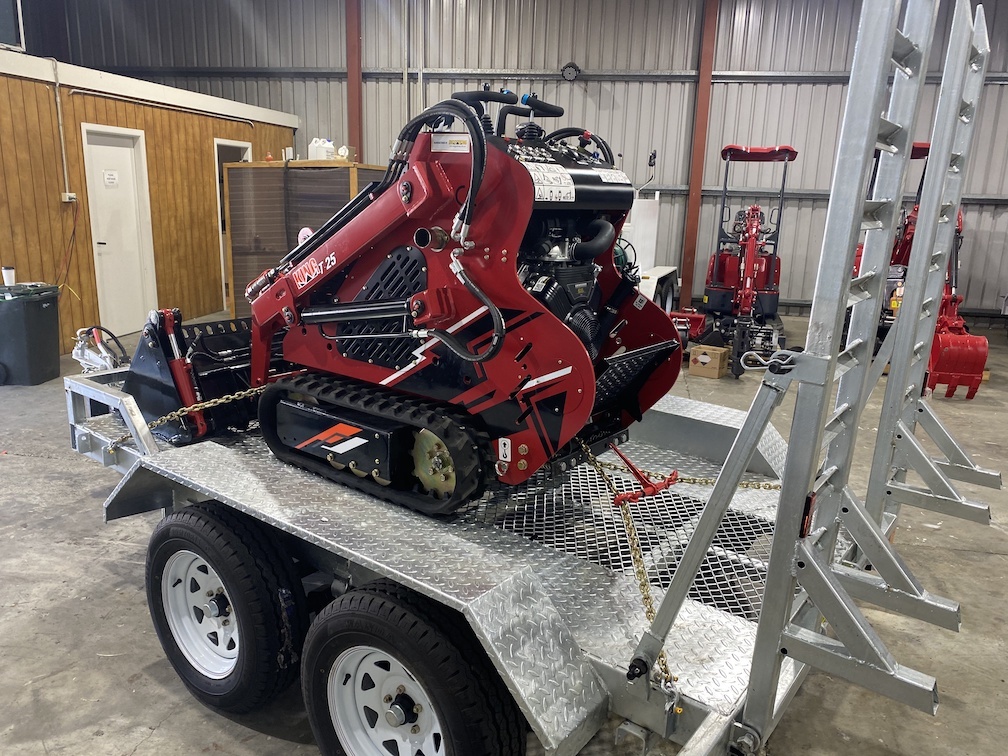

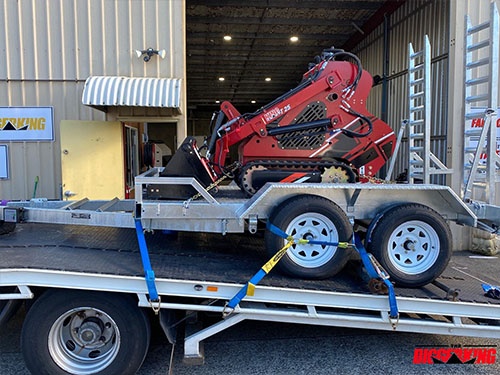

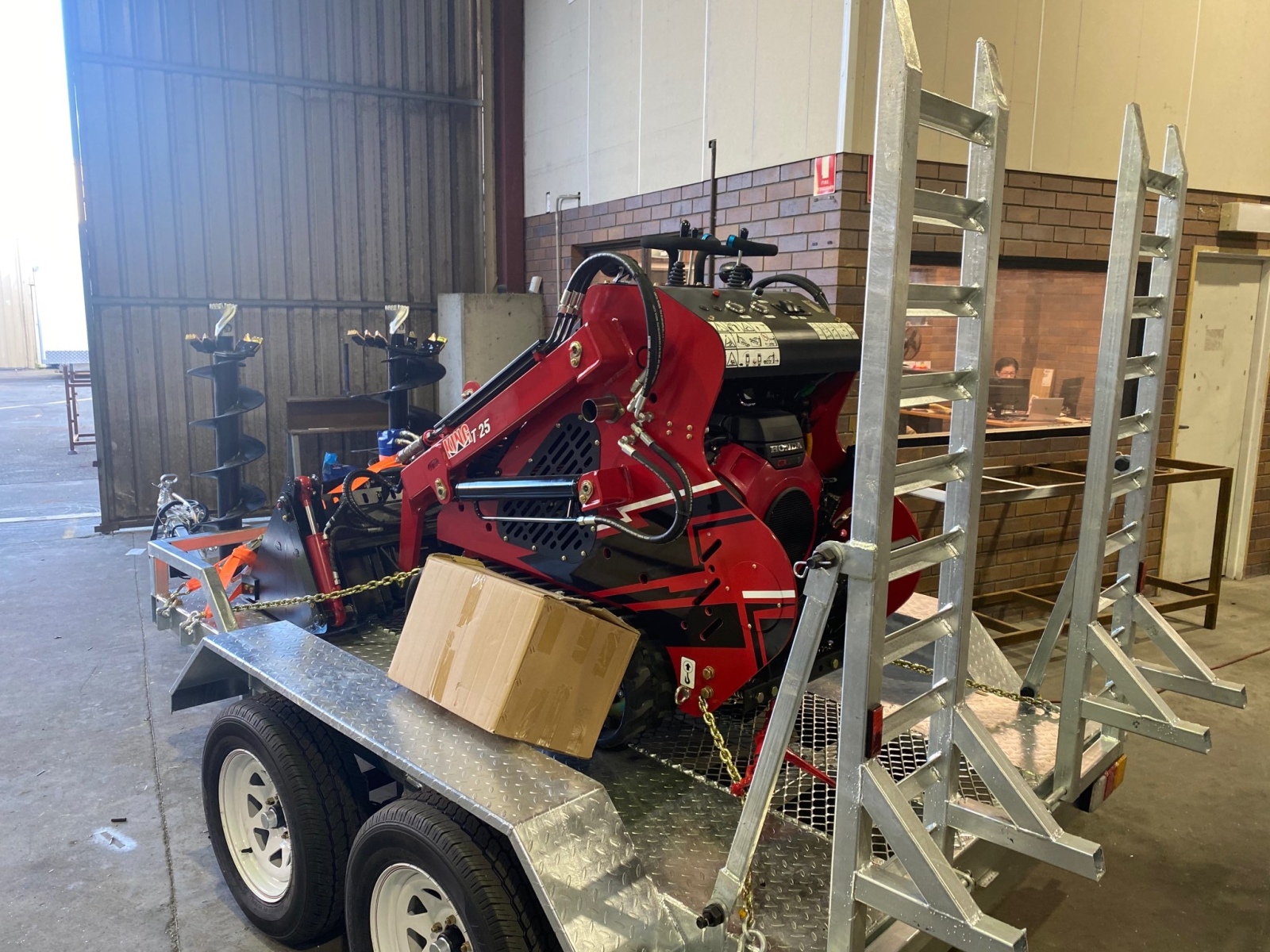

MOST POPULAR: Tracked 25 HP Mini Loader, Bucket and Trailer Premium Package Only $26,990+GST or around $139 per week on finance

Tracked 25 HP Mini Loader, Bucket and Trailer Premium Package Inclusions:

Everything in the standard Machine and Implements package, plus:

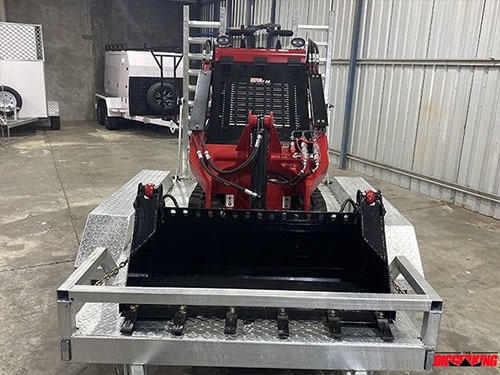

  •  Super Duty Trailer with 4 wheel electric brakes and easy fold down ramps
  •  Trailer dimensions – 2900 mm (L) plus 1400 for draw bar x 2025 wide x 505 mm (H)
  •  Implement rack
  •  Tie down straps
  •  All set up for you turnkey

Tracked 25 HP Mini Loader, Bucket and Trailer Premium Package Only $26,990+GST or around $139 per week on finance

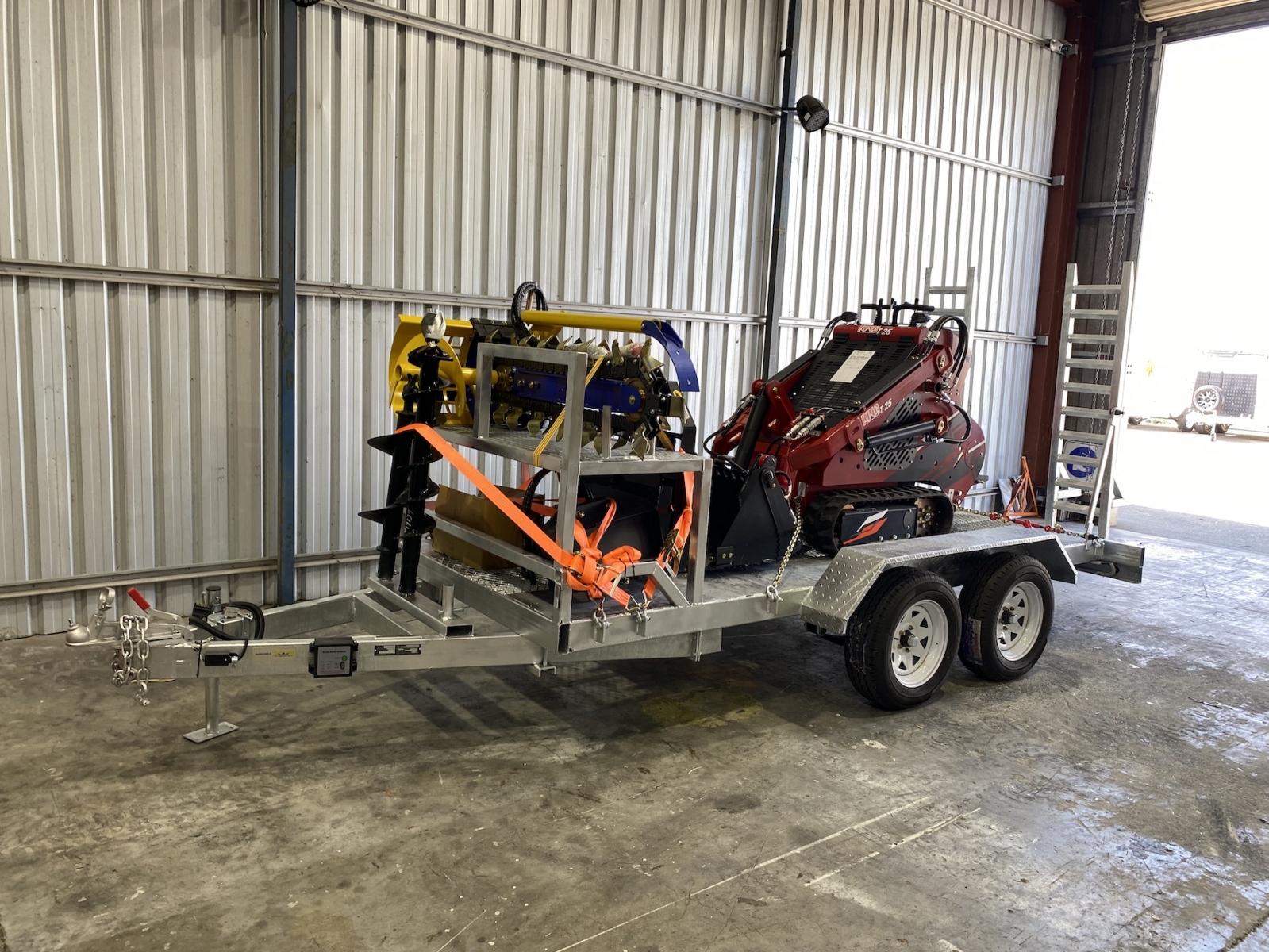

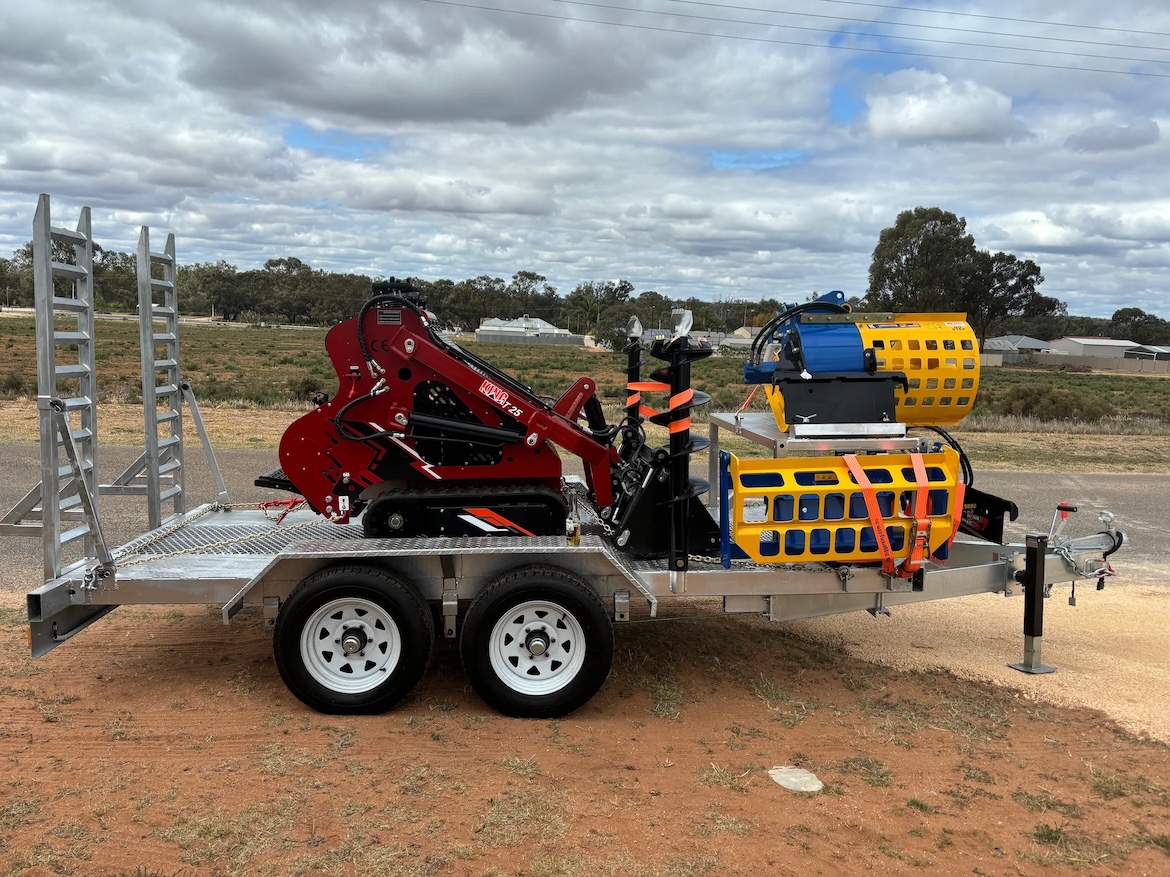

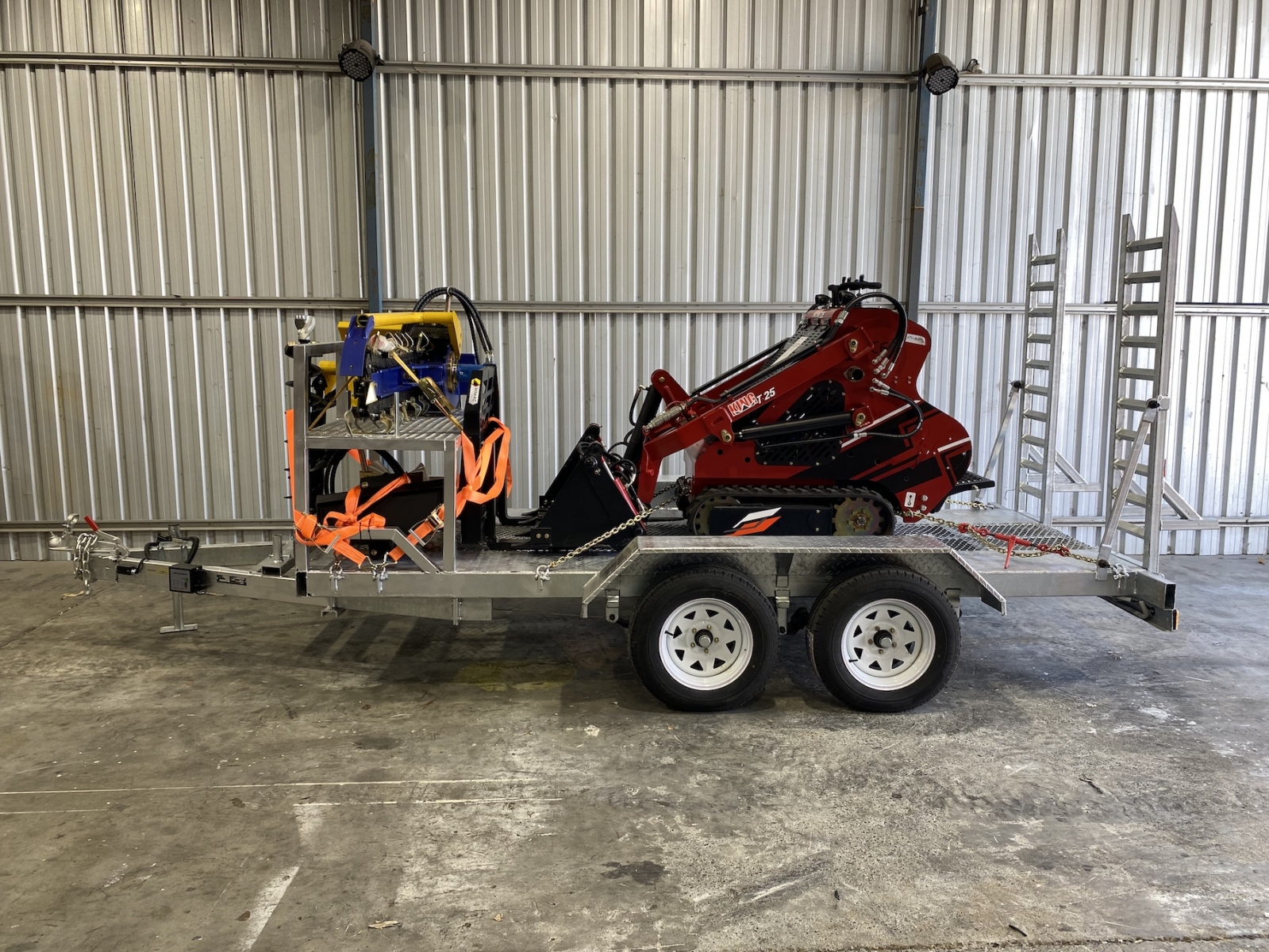

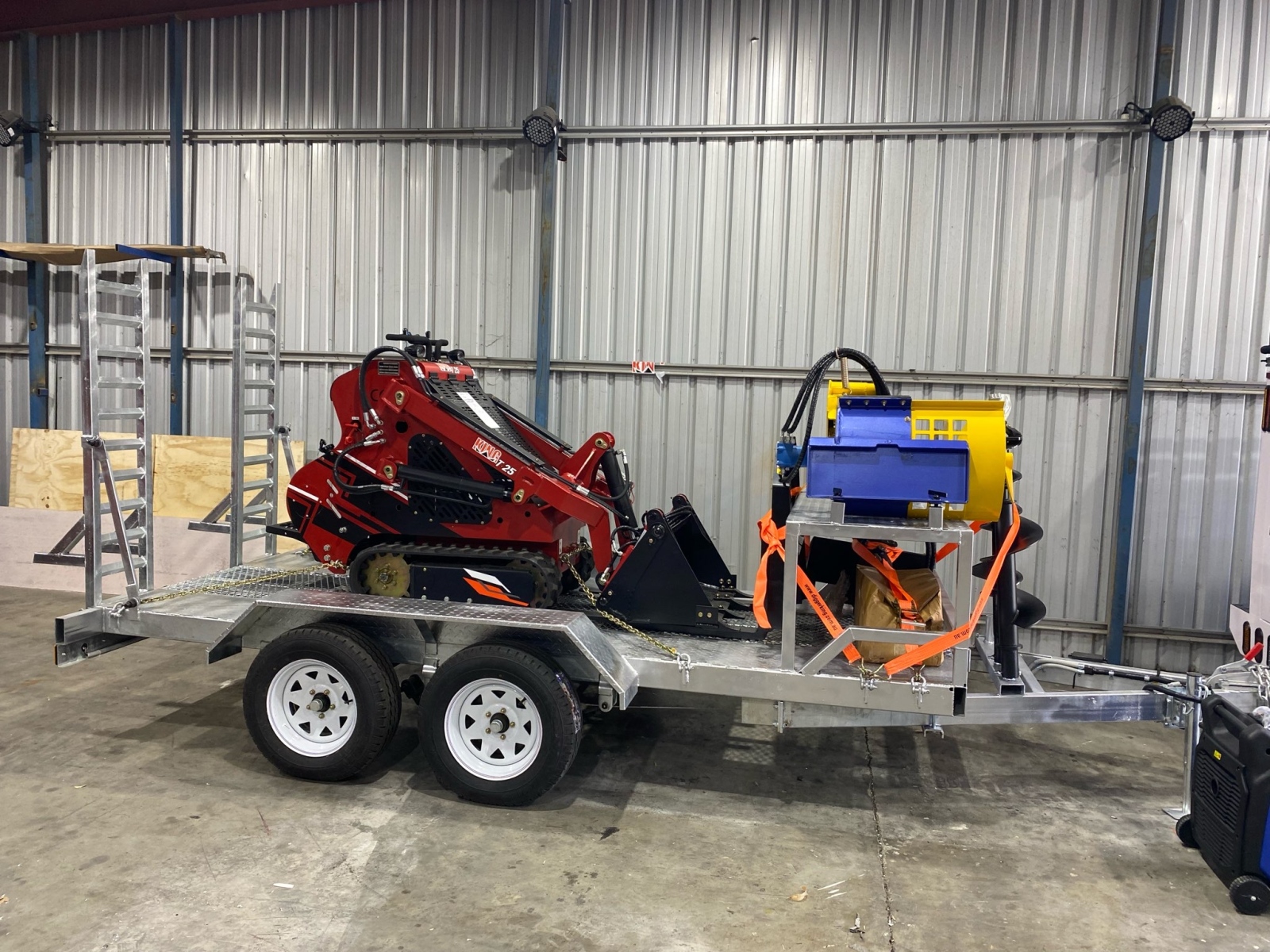

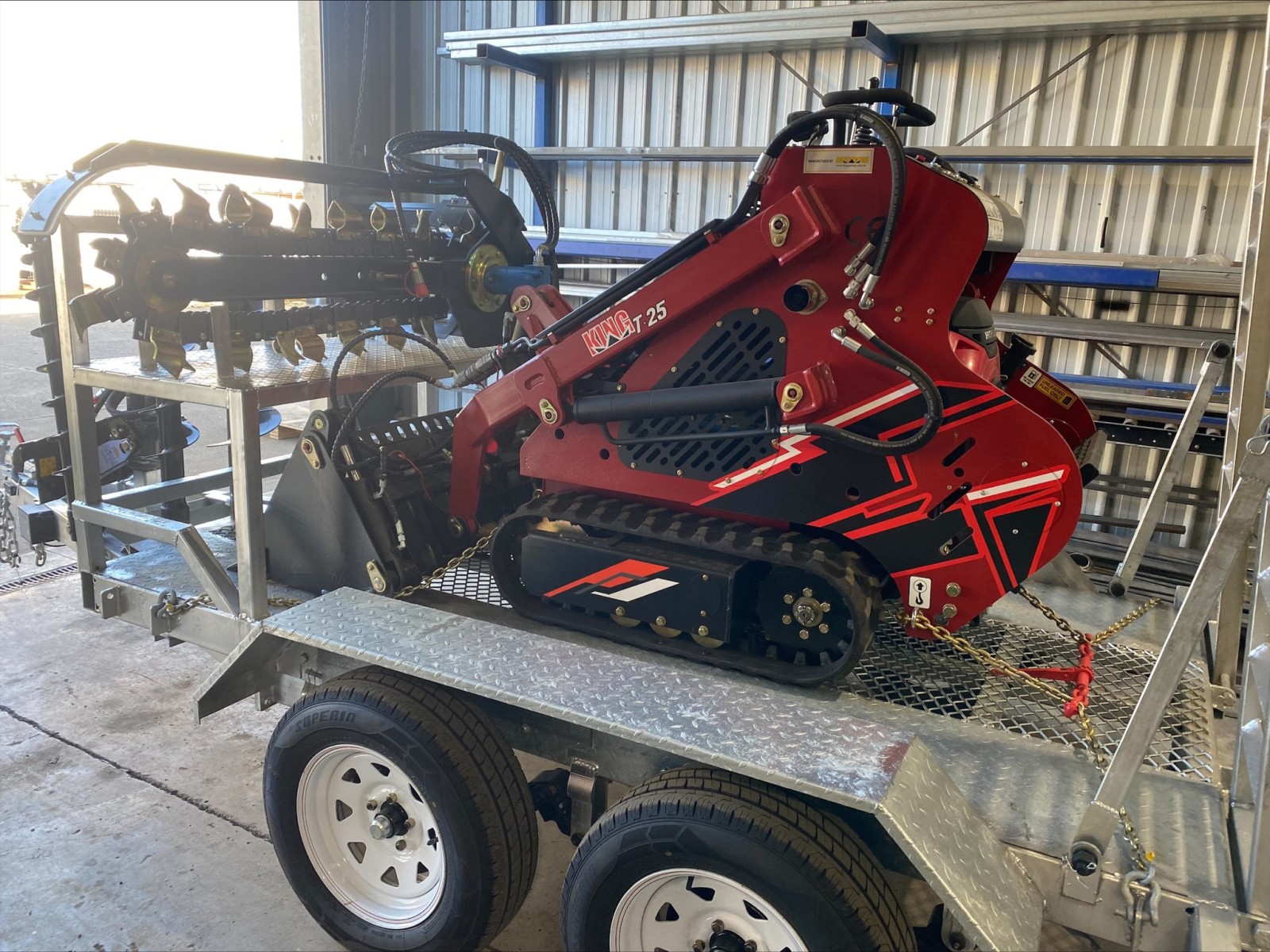

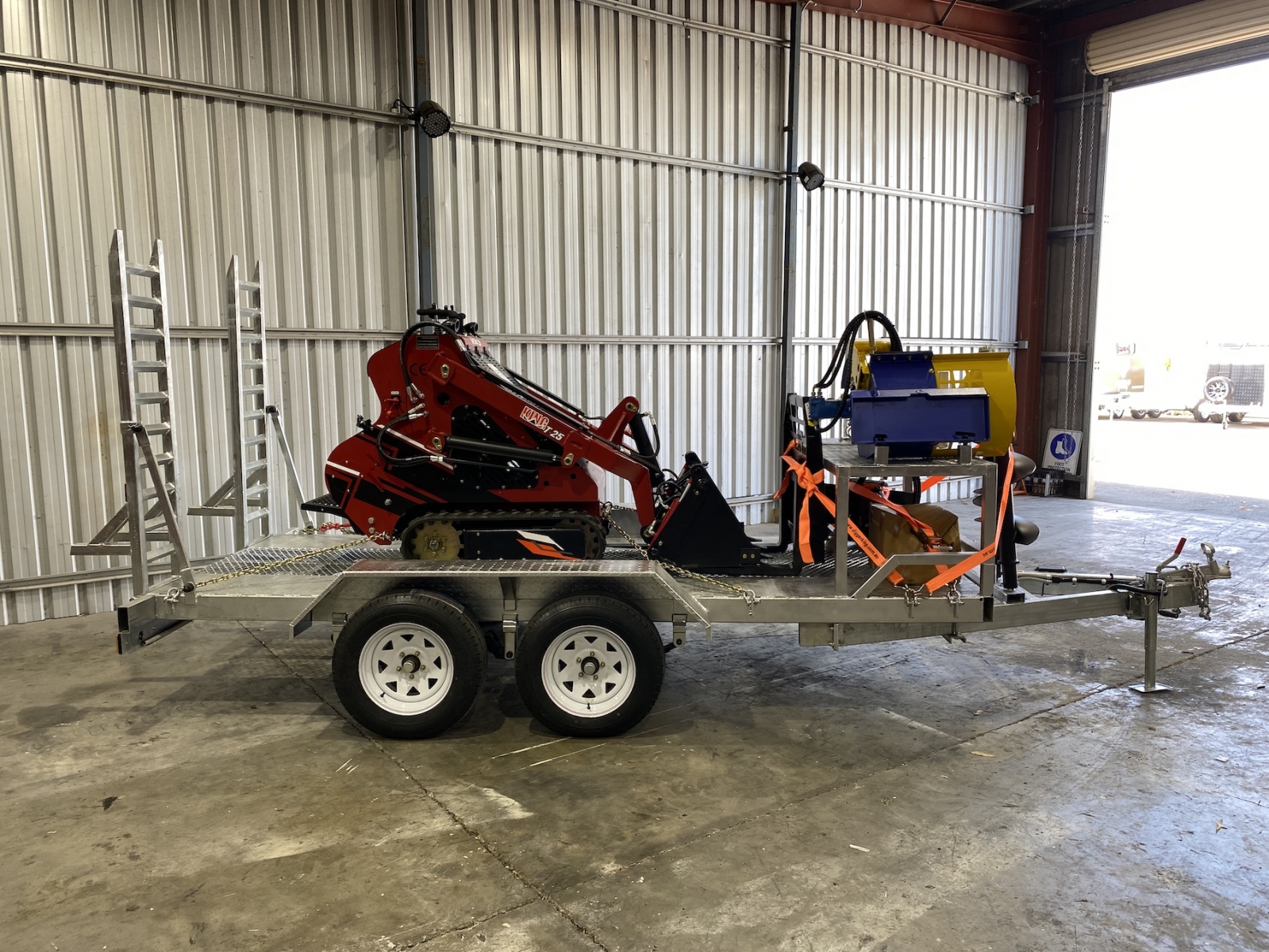

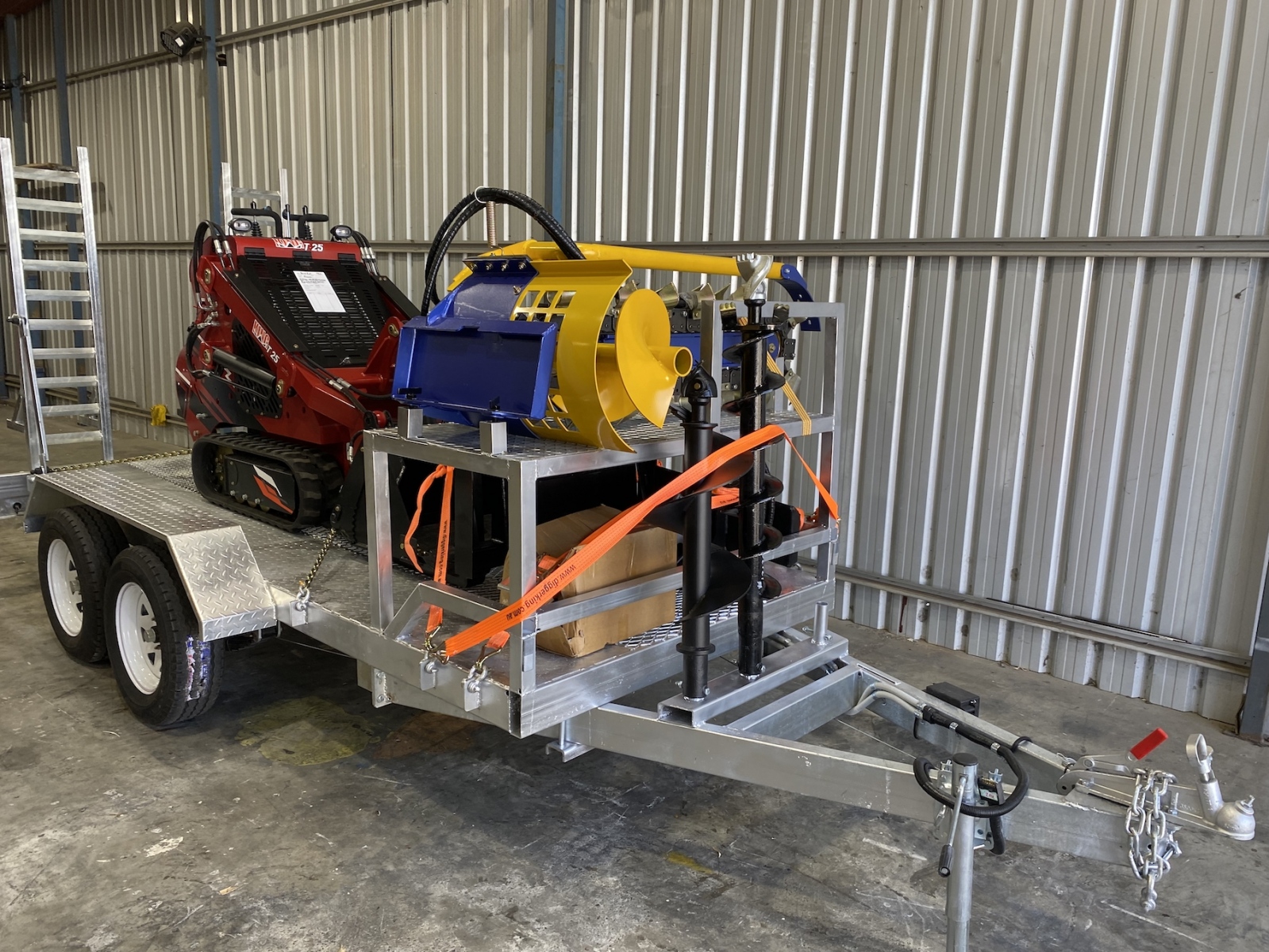

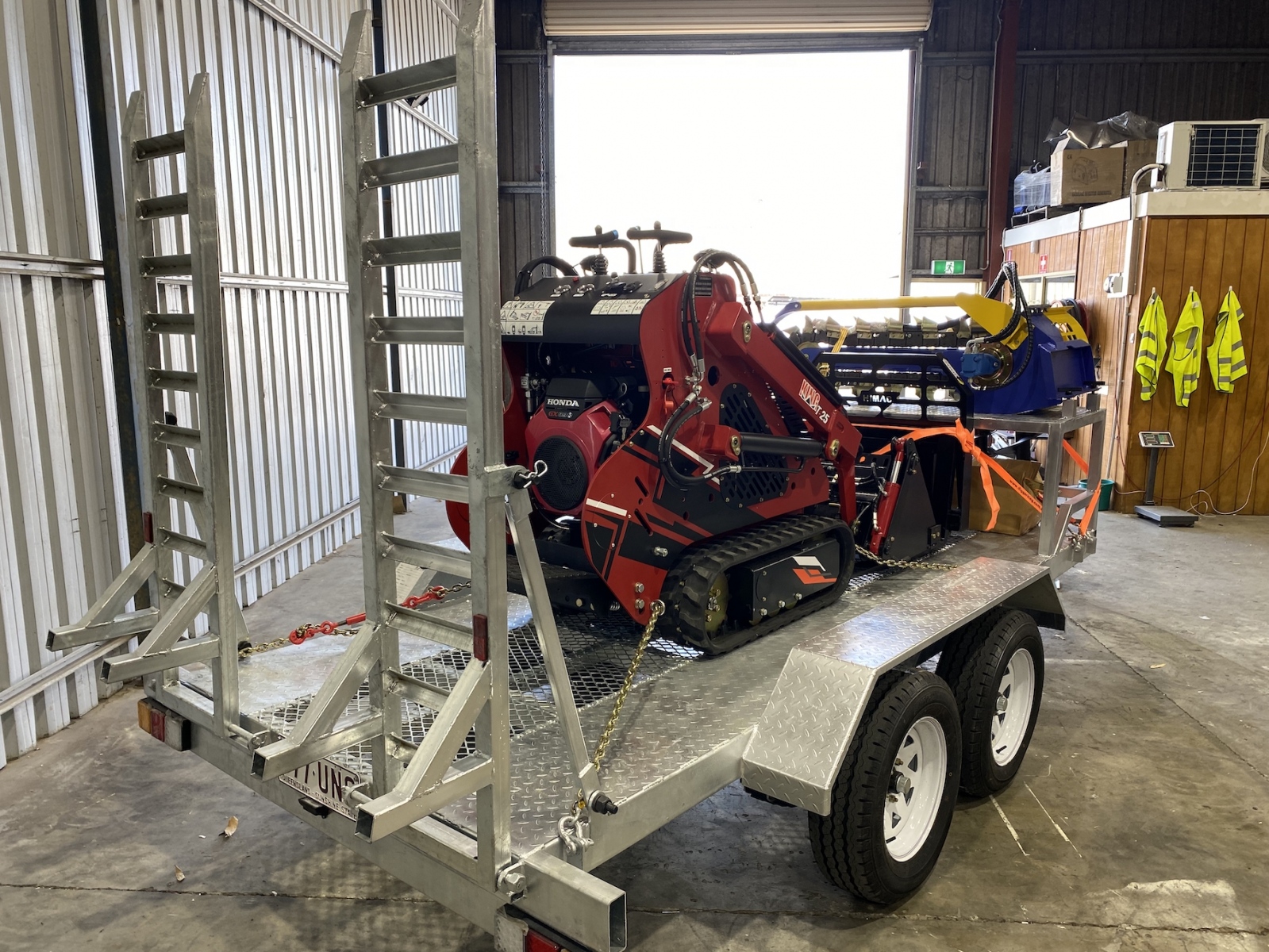

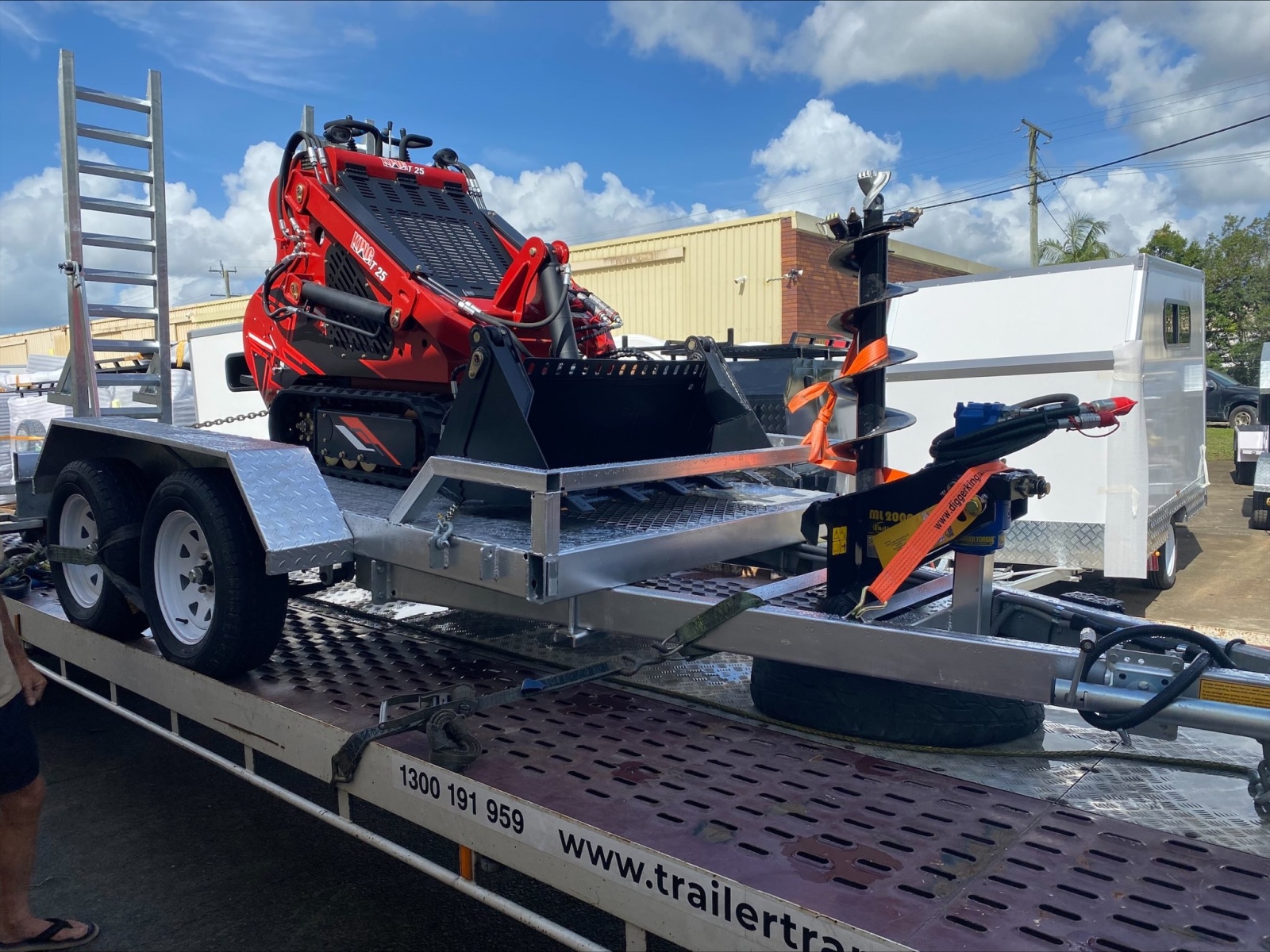

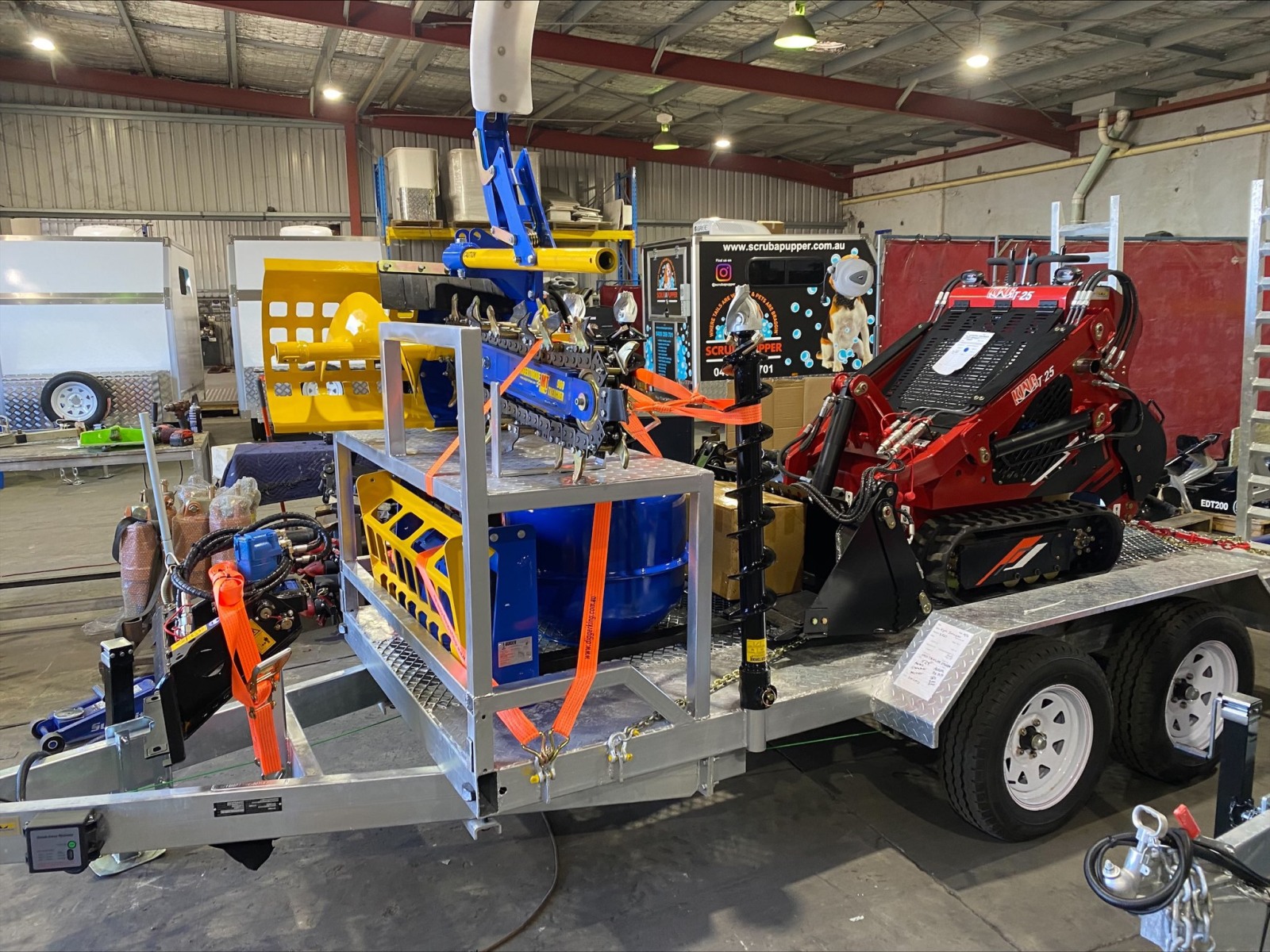

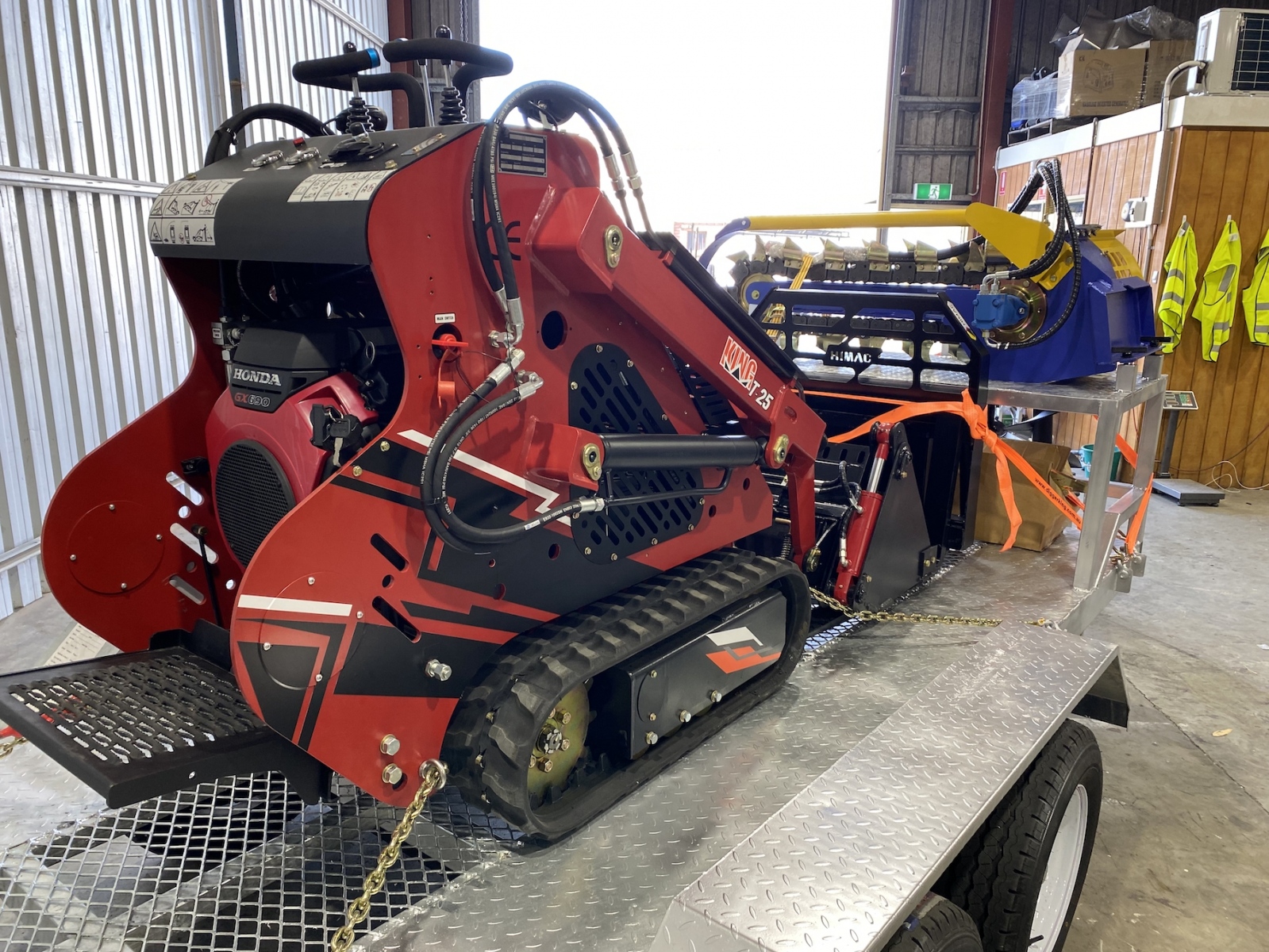

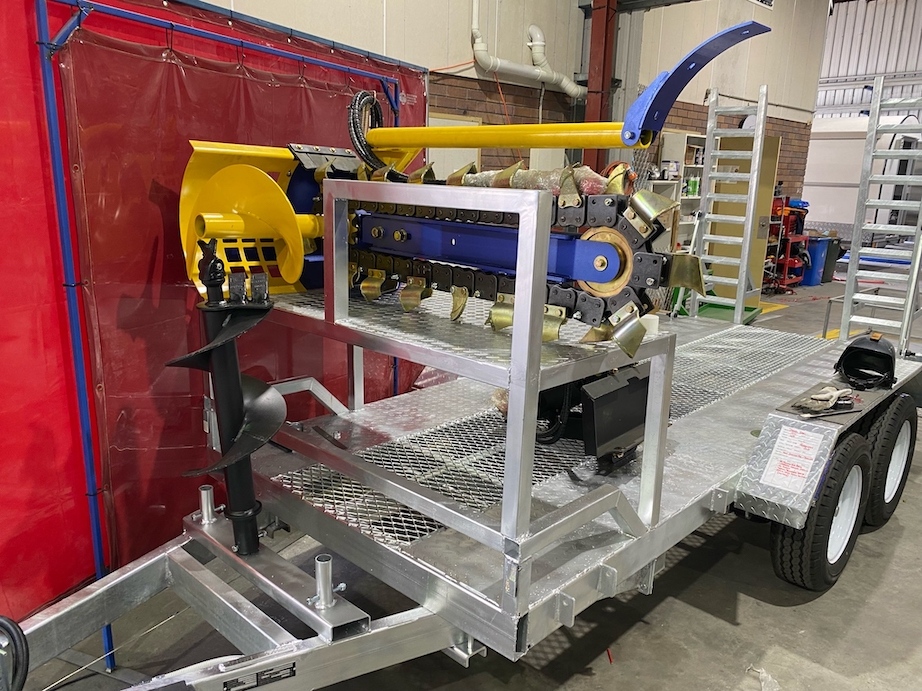

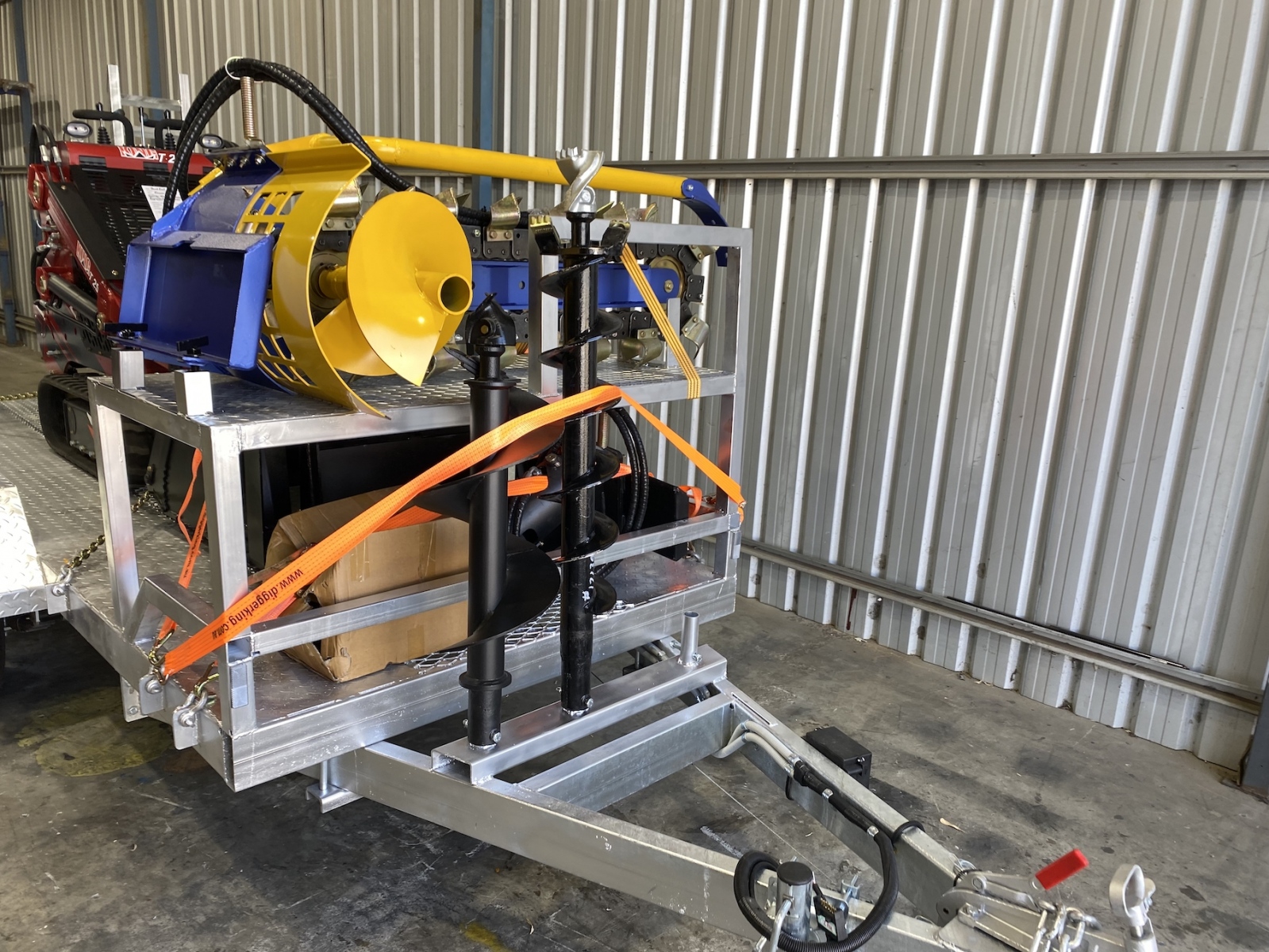

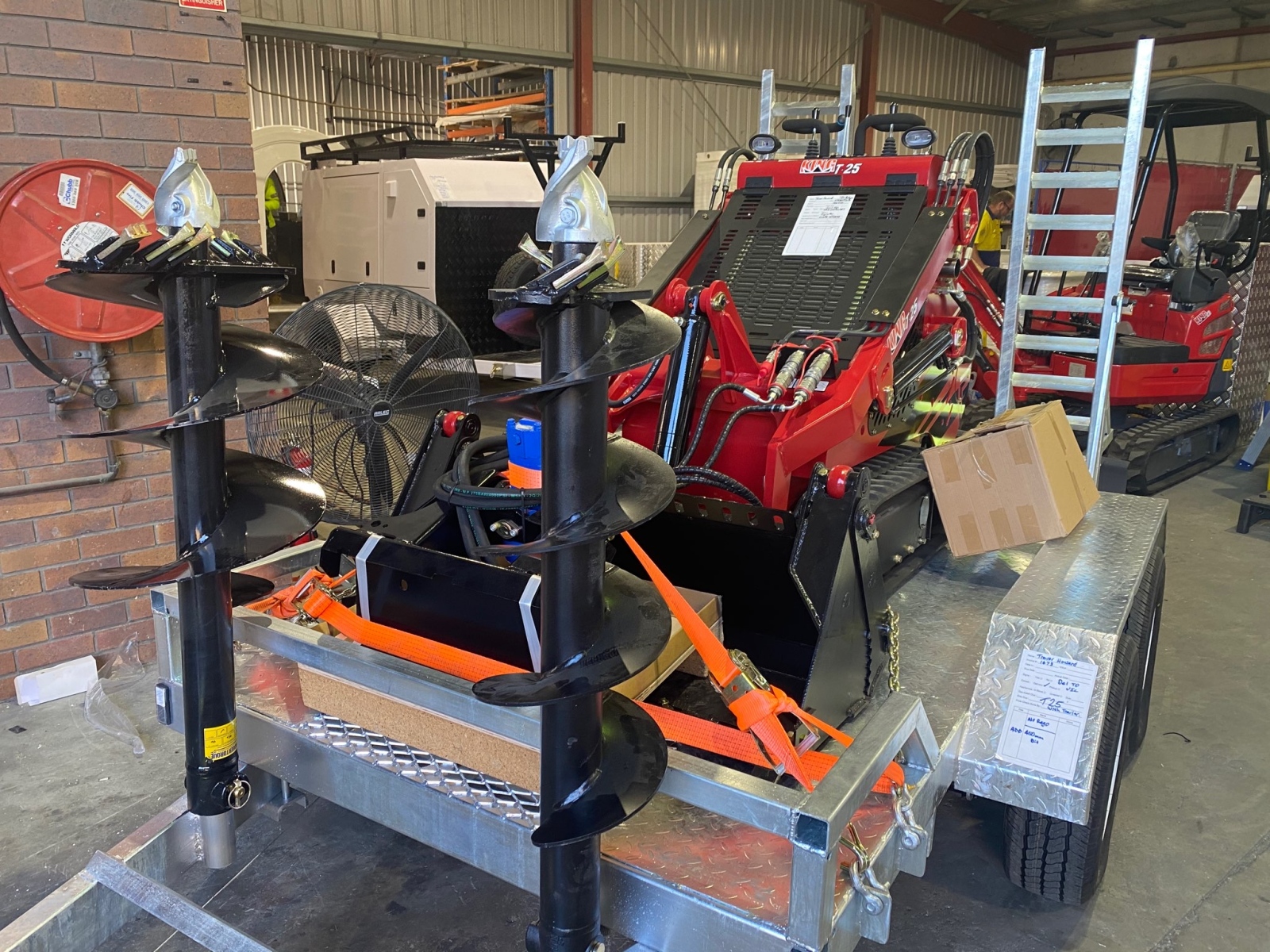

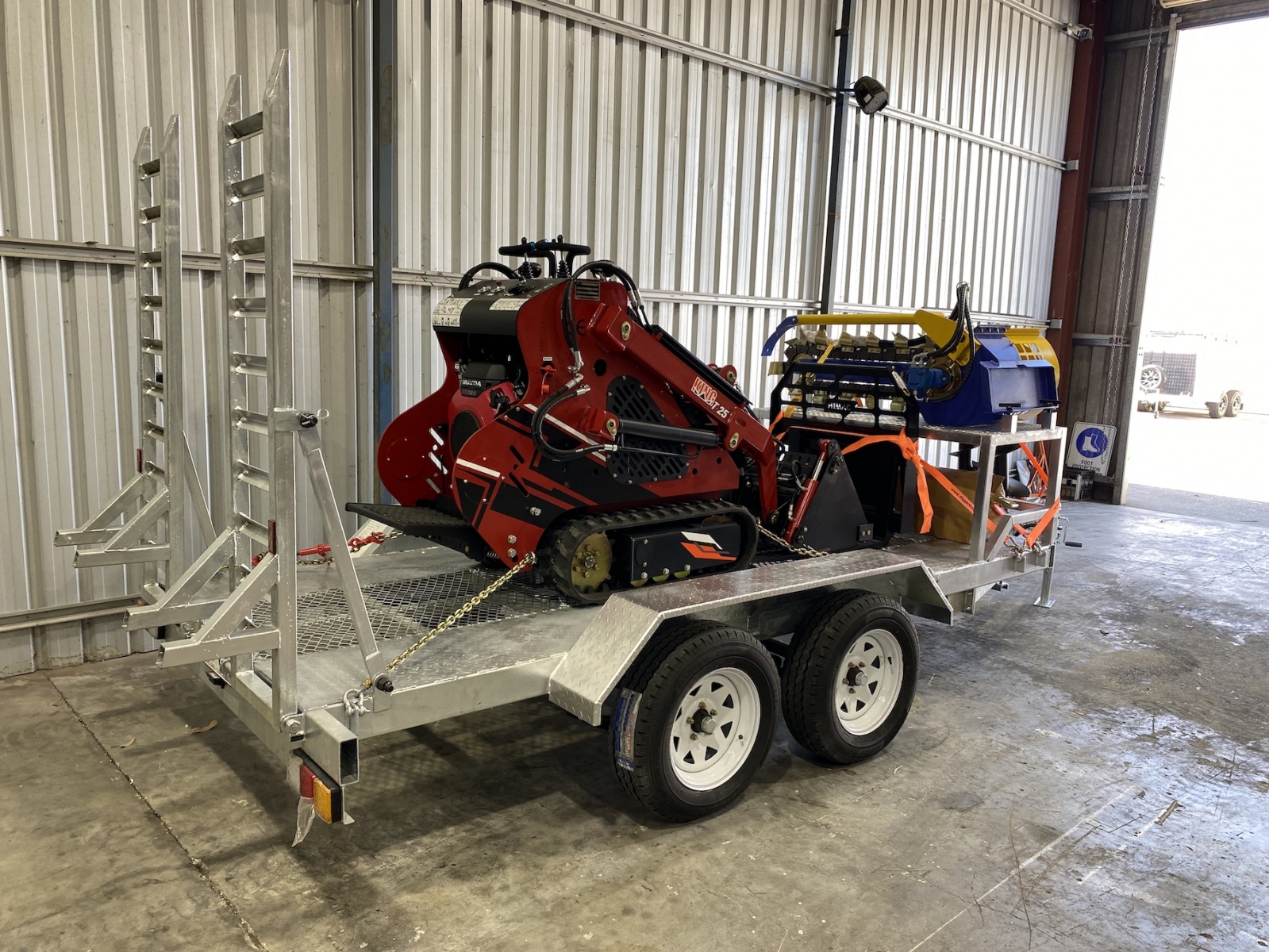

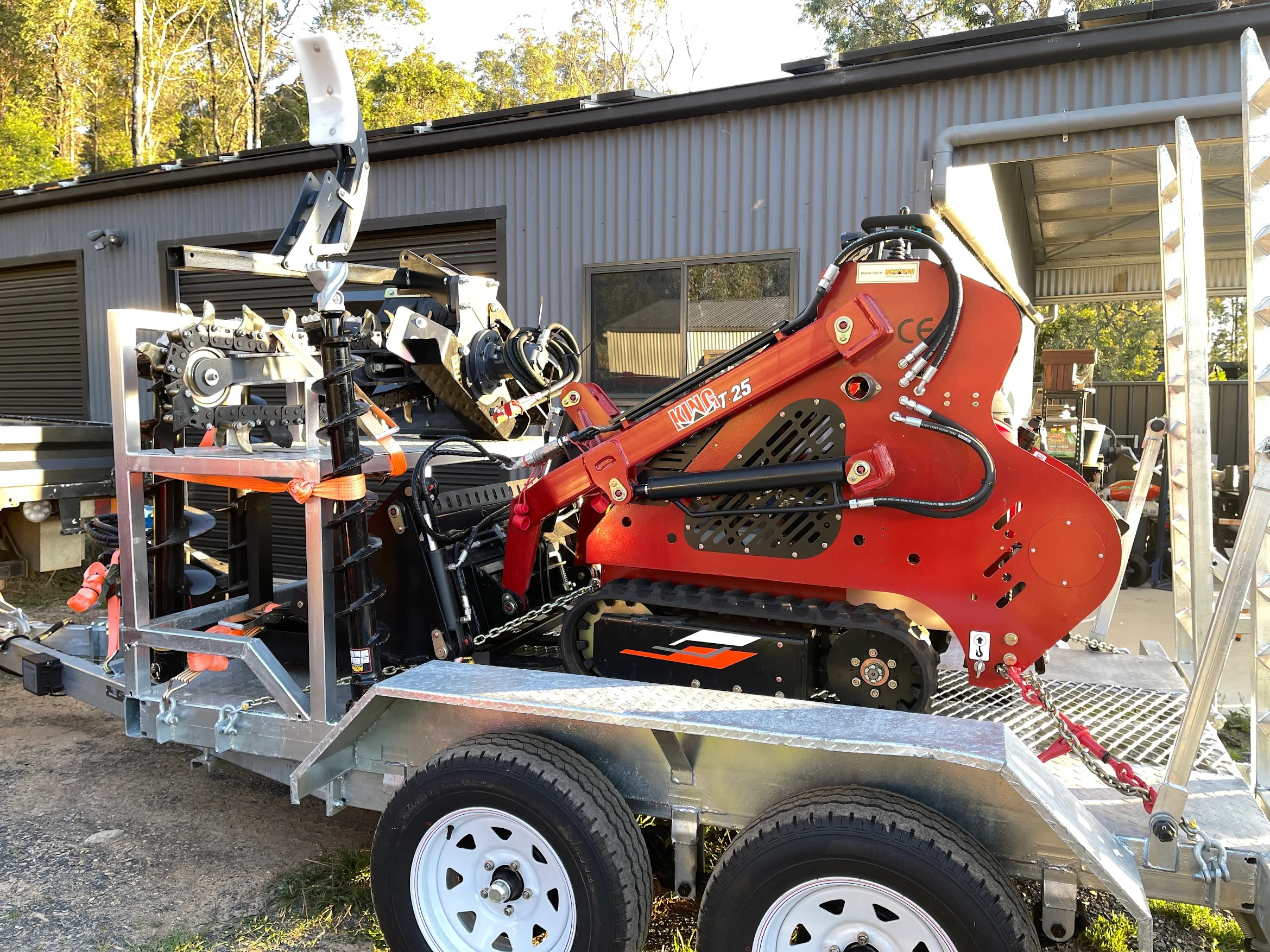

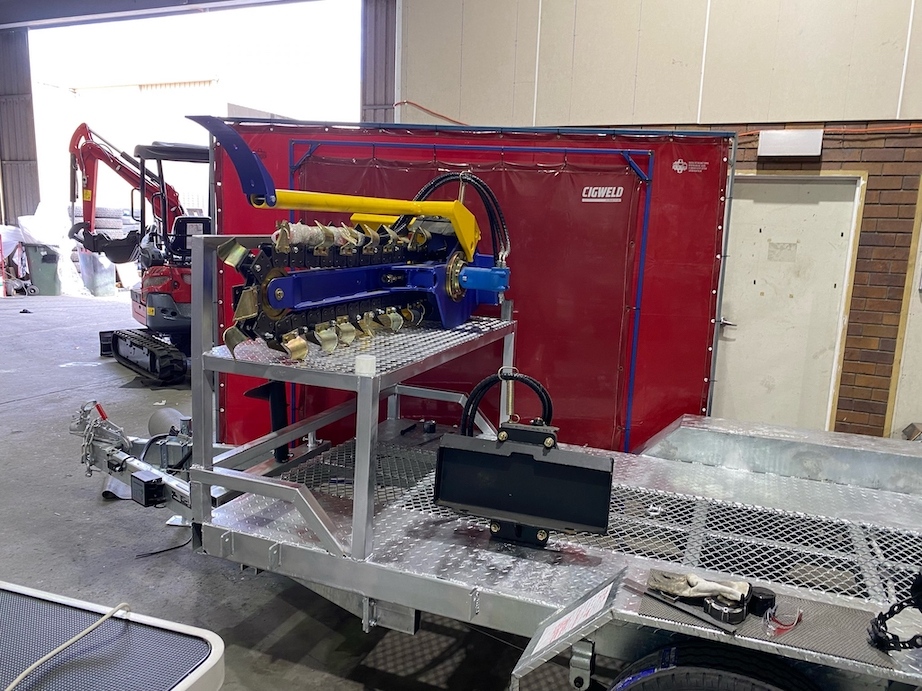

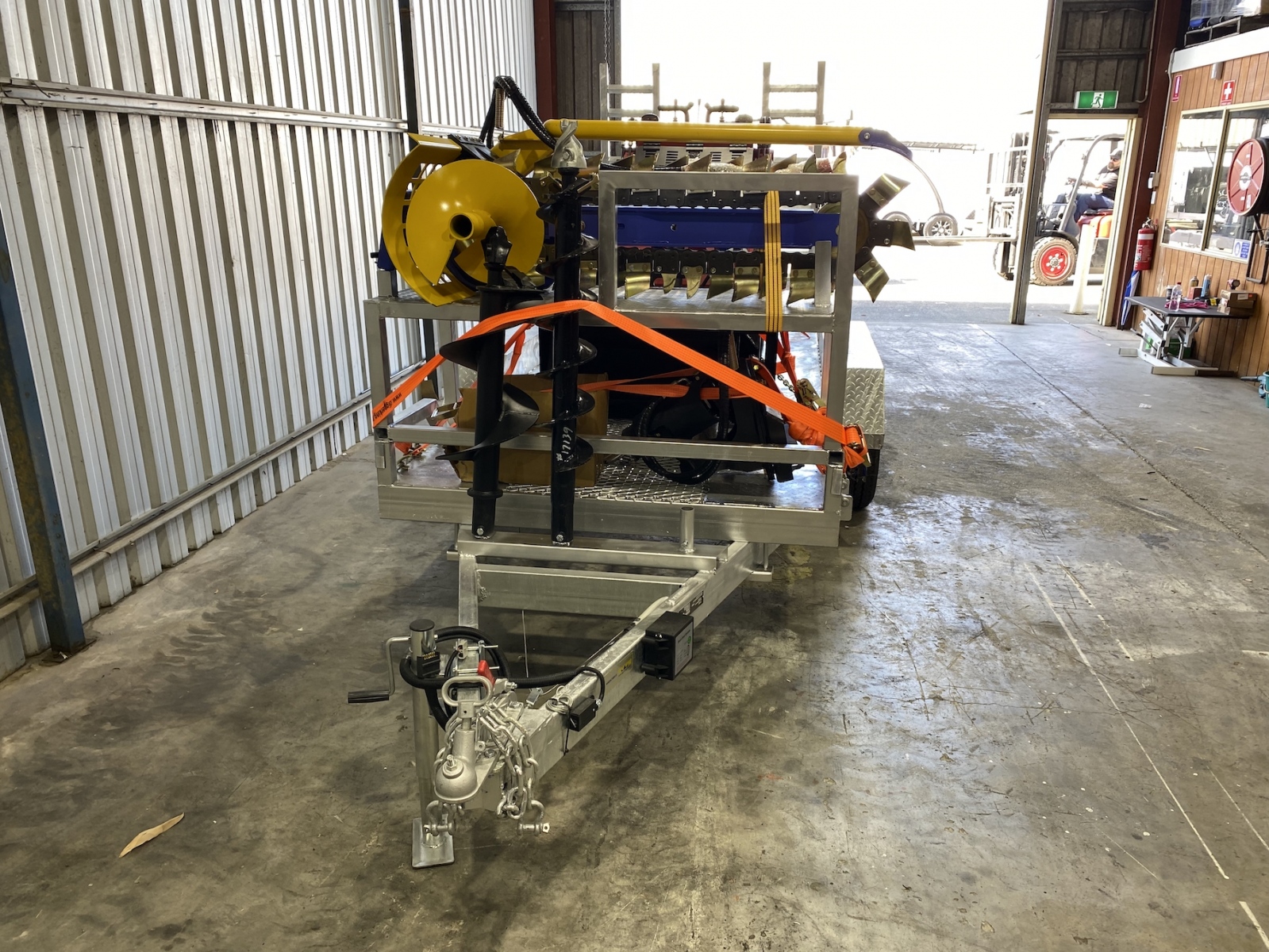

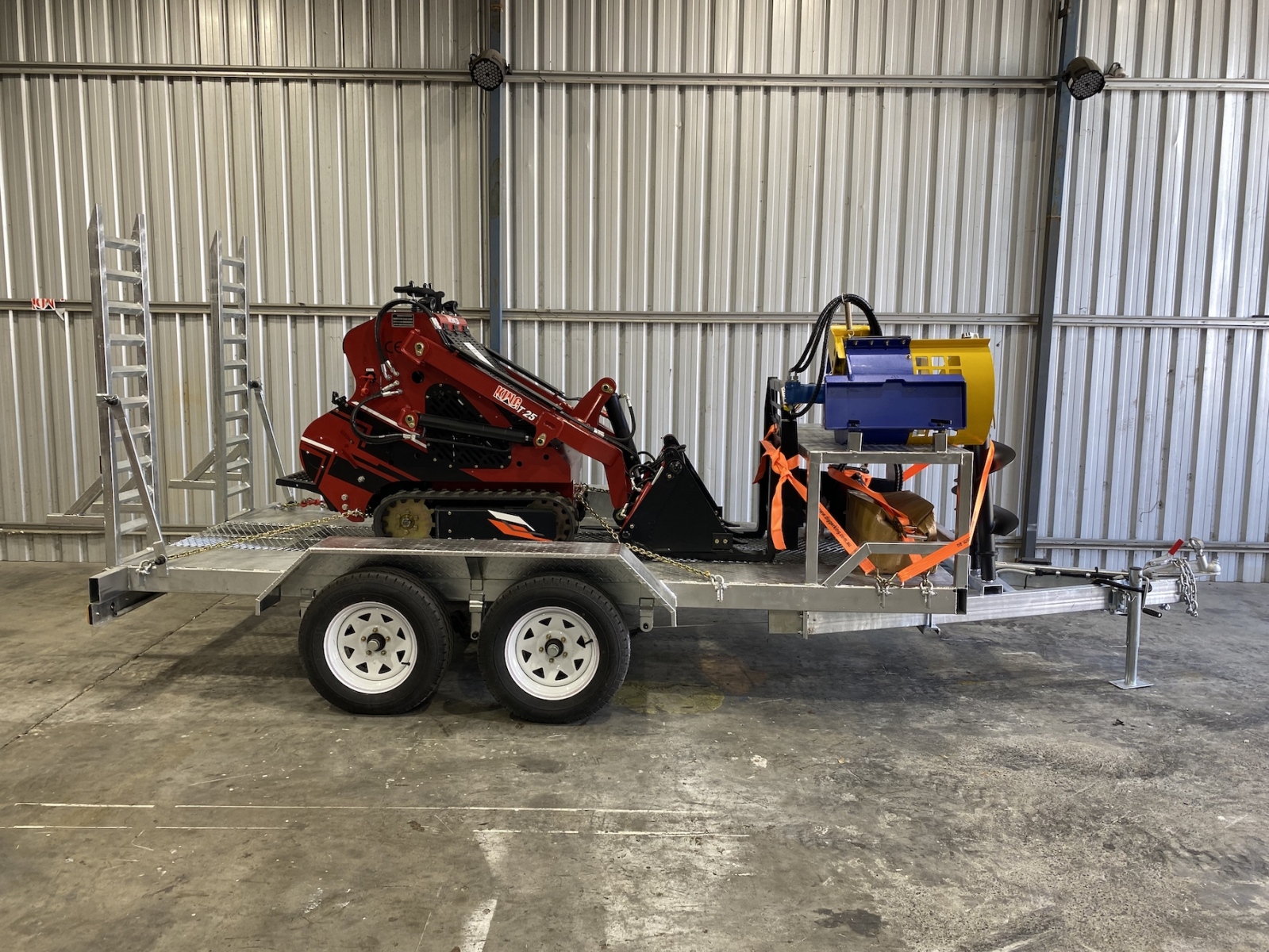

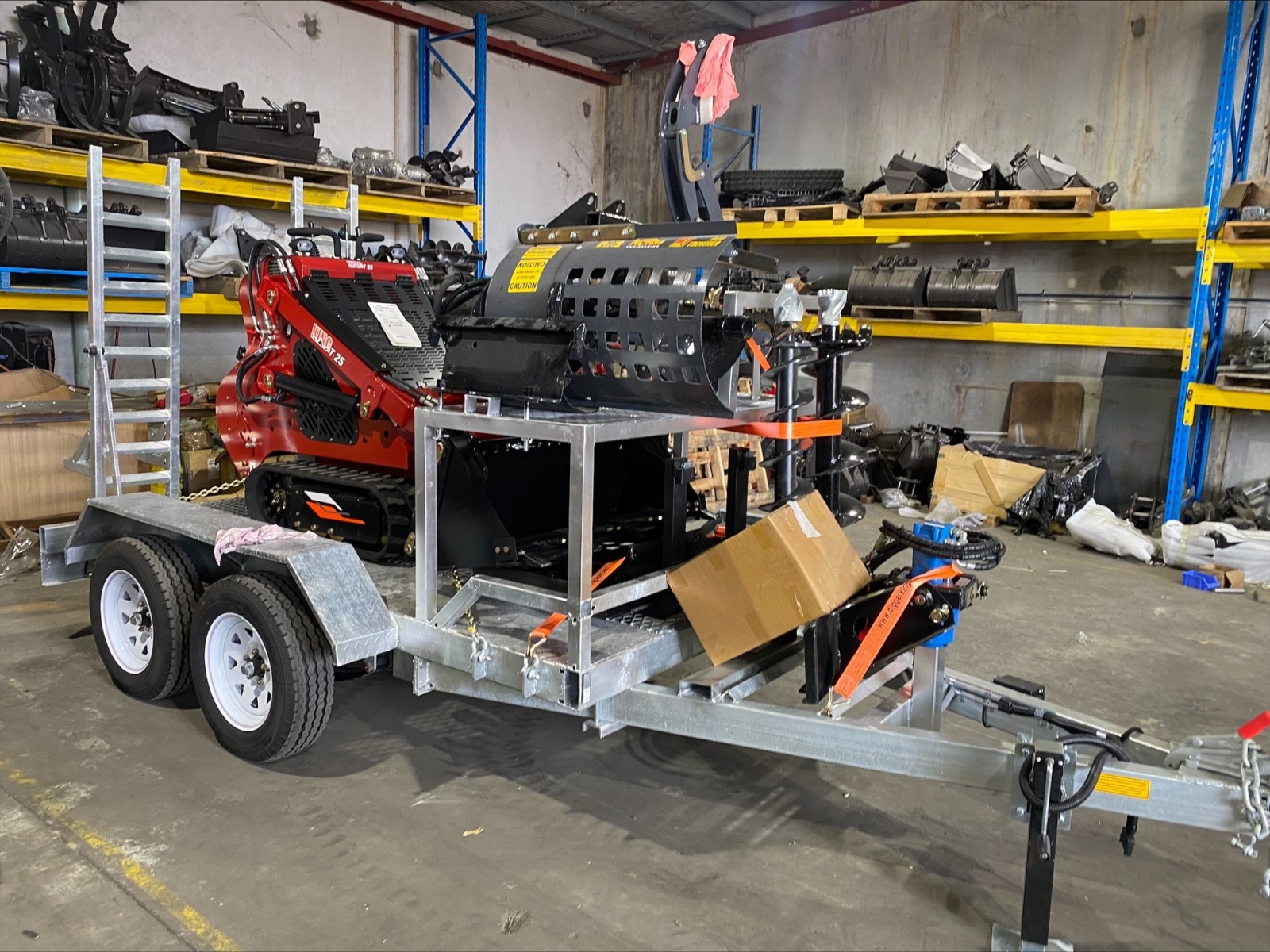

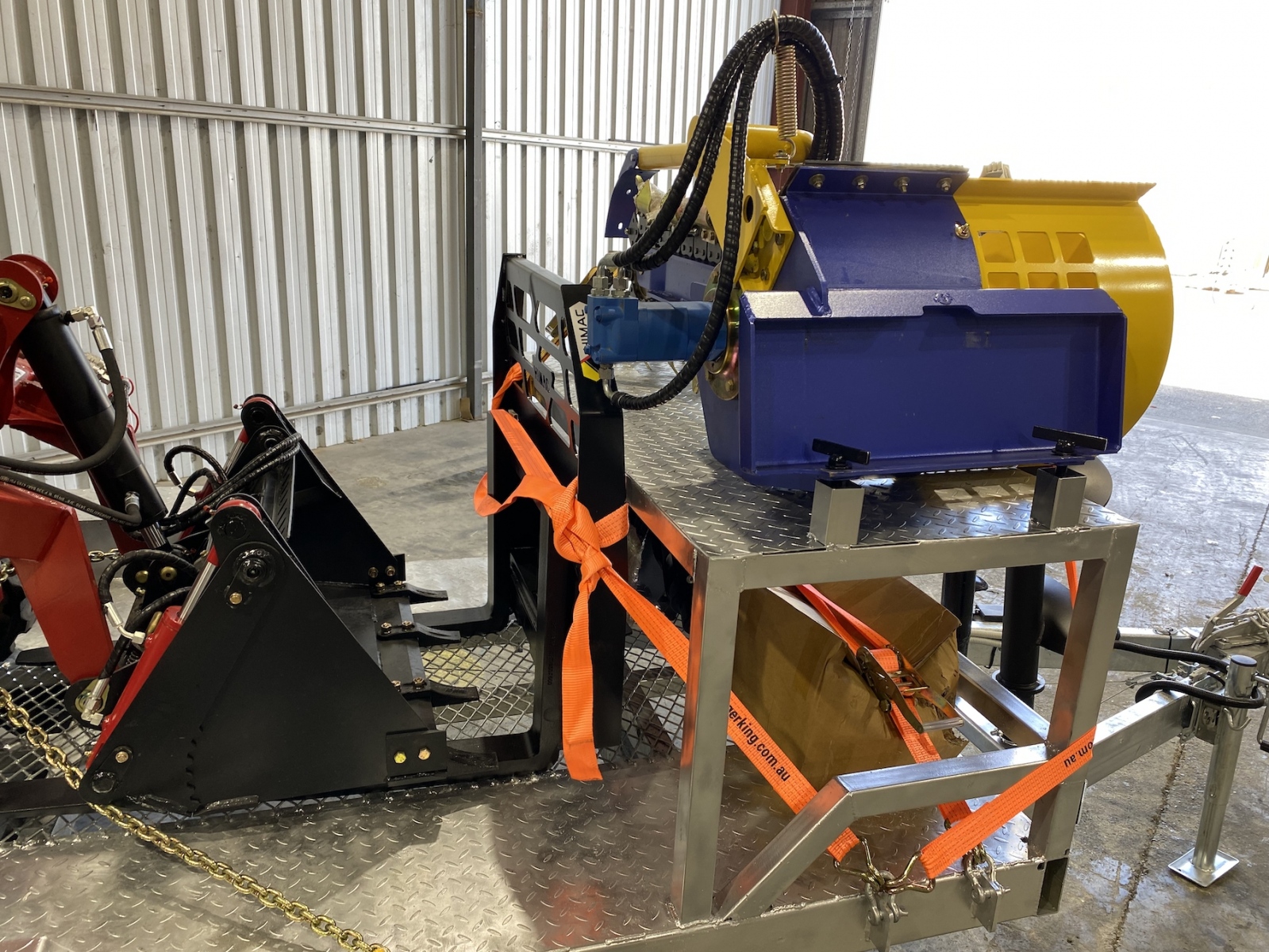

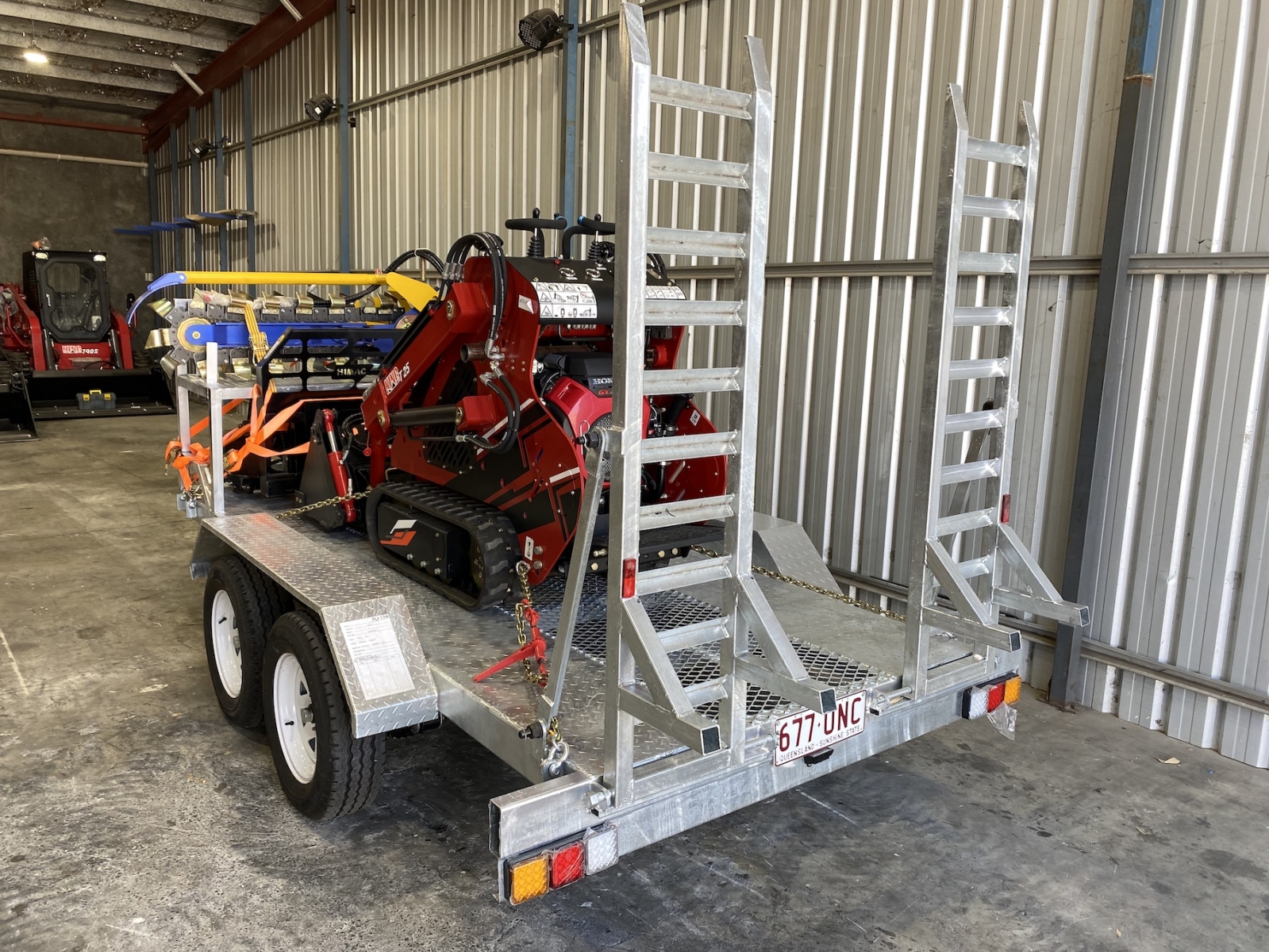

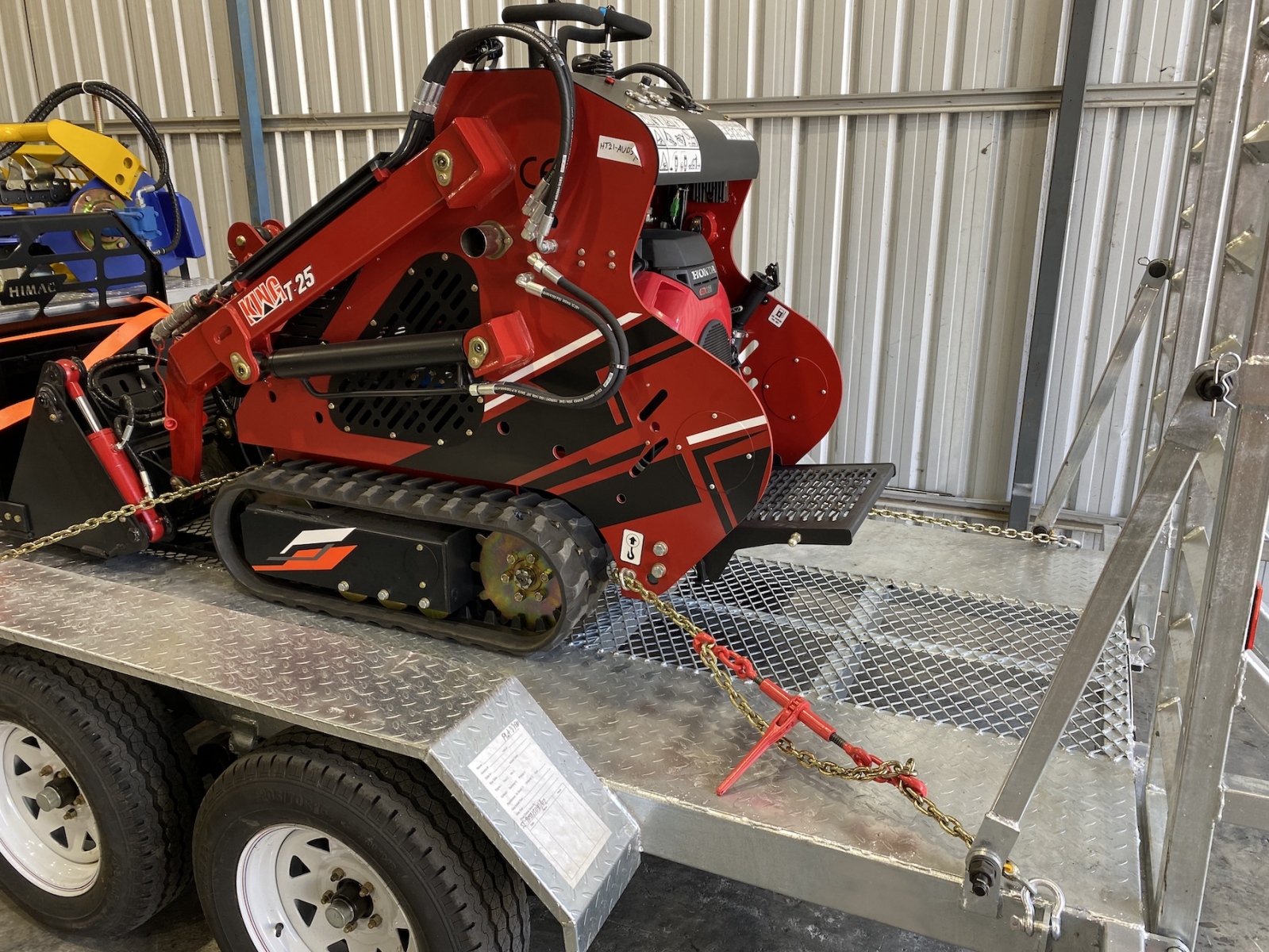

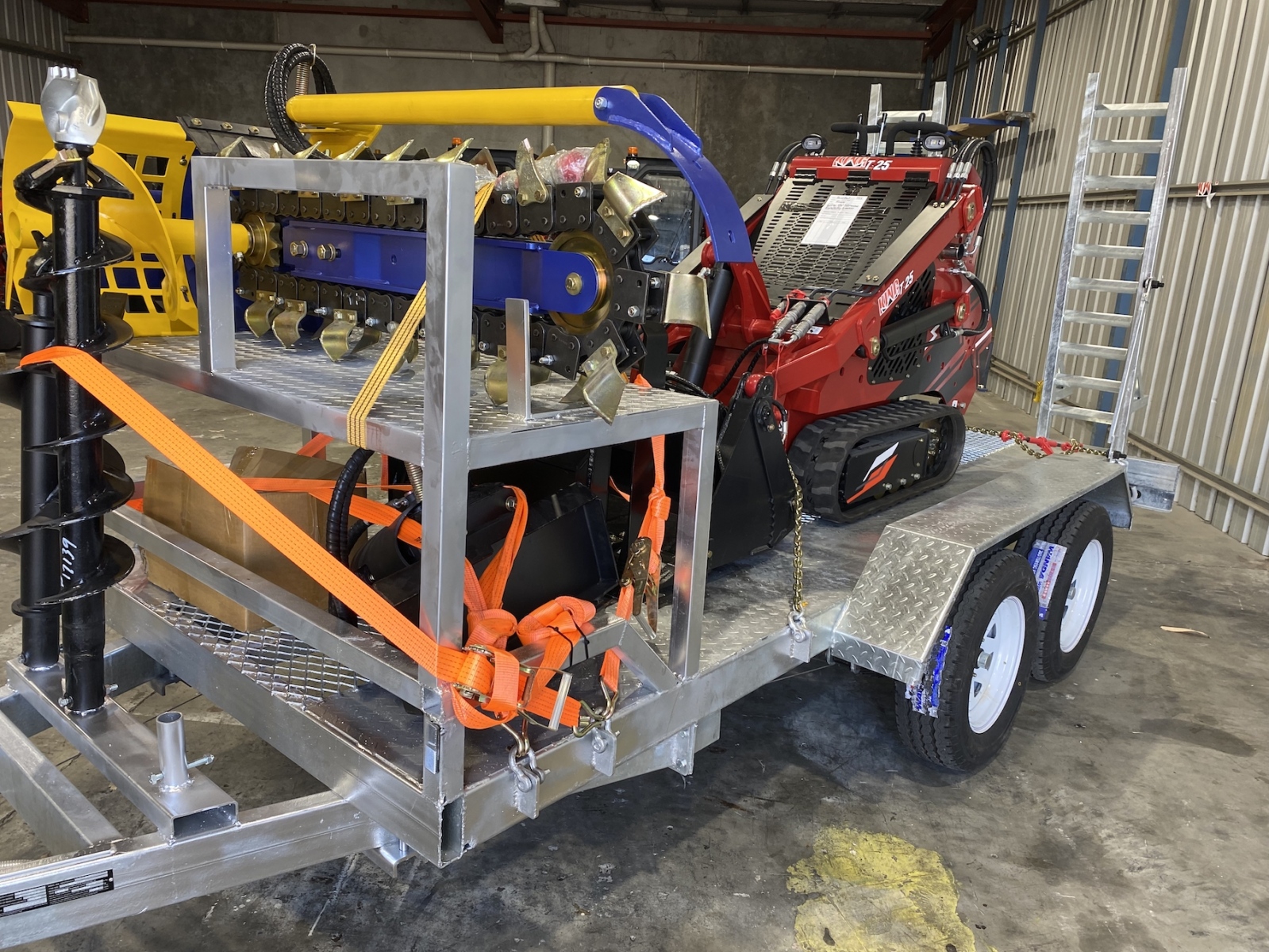

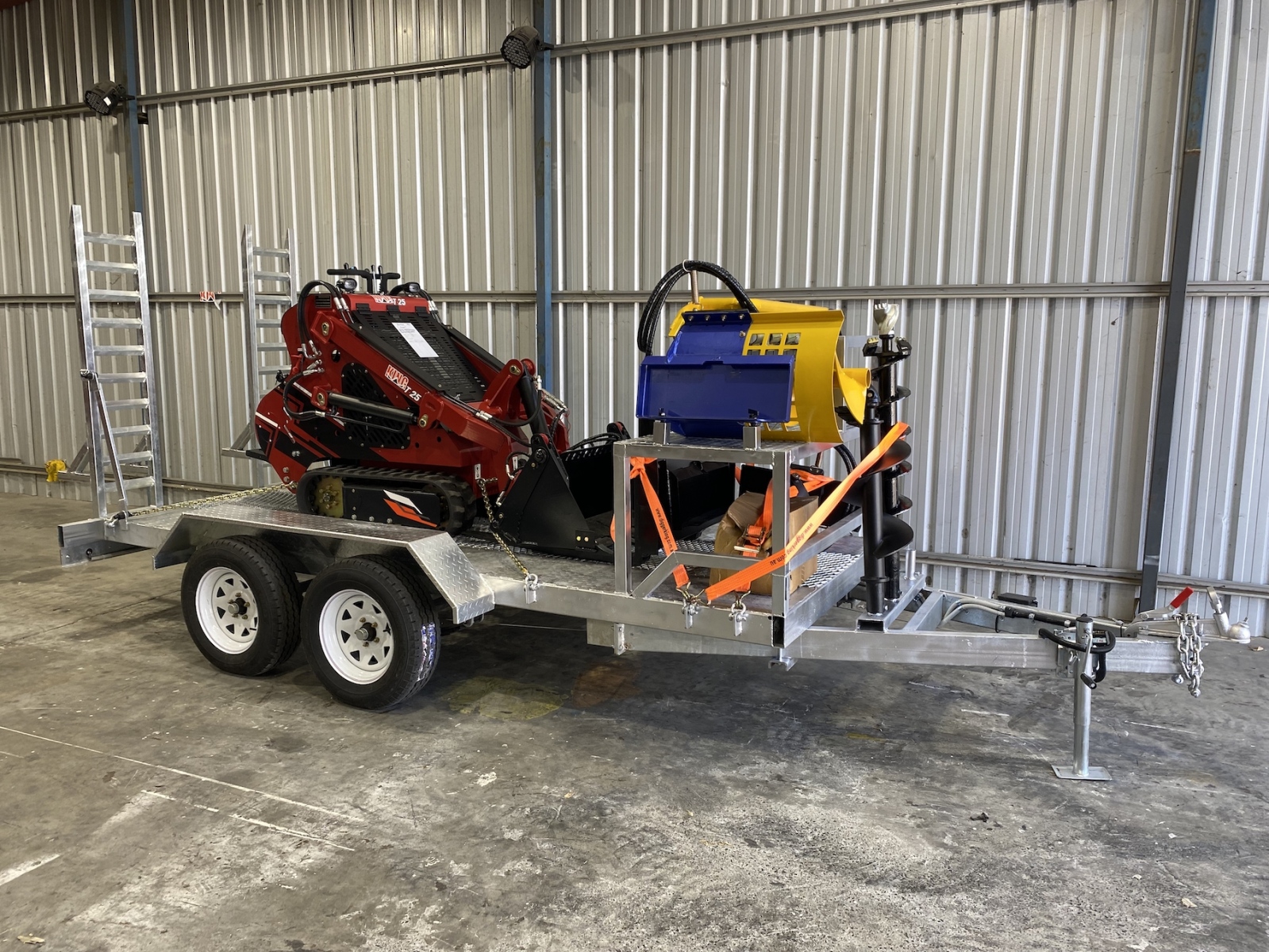

Tracked 25 HP Mini Loader 3900 Combo – Massive 3900mm Super Duty Trailer WITH Attachments Only $43,990+GST or around $219 per week on finance

  •  4 in 1 Bucket
  •  Heavy Duty Trailer – 3900mm

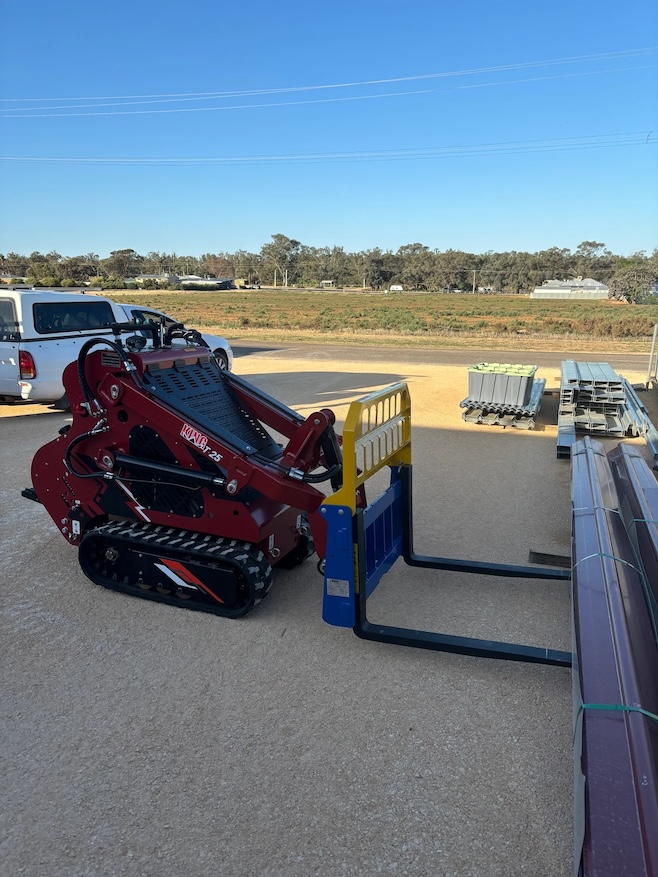

  •  Heavy Duty Set Of Forks

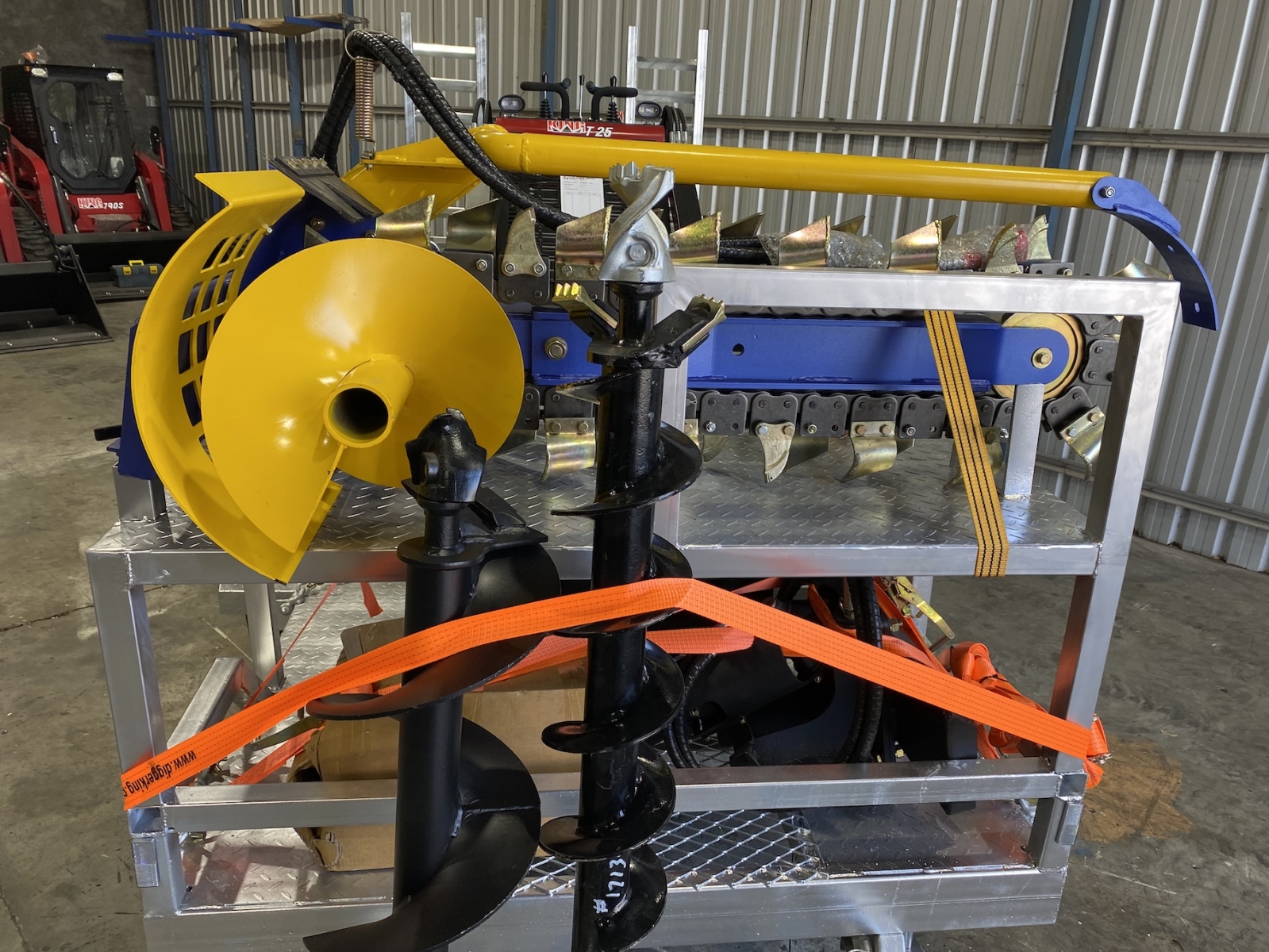

  •  Trencher Attachment

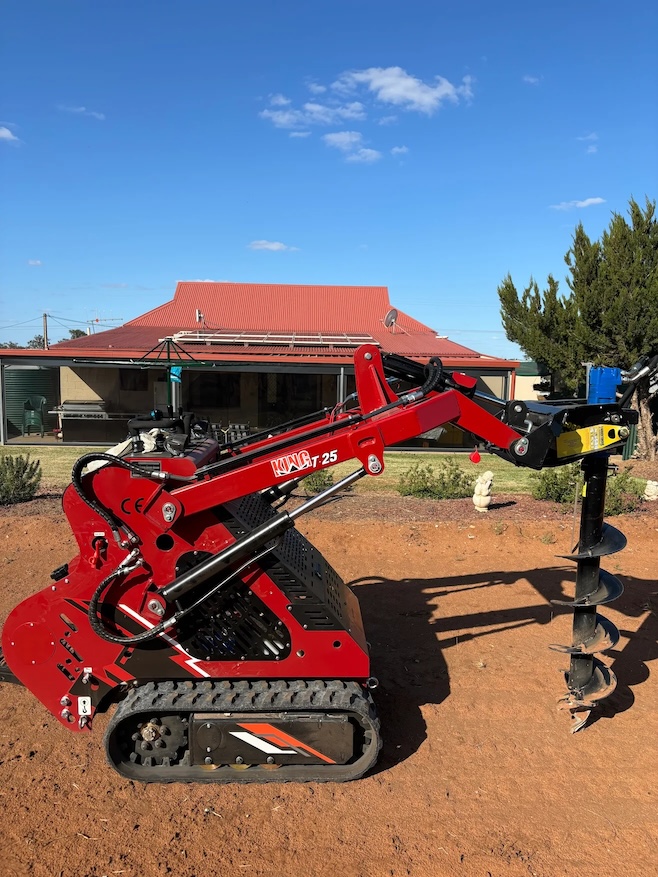

  •  Auger Driver With All 3 Auger Bits – 150mm, 200mm, 300mm
  •  Mounting Kit For Trencher
  •  Chain Down Kit
  •  Tool Box Kit
  •  Filter Kit
  •  Machine Load Capacity – 300 kg
  •  Machine Weight – 890 kg
  •  Machine Dimensions – 1740 mm (L) x 830mm (W) x 1370 mm (H)
  •  Trailer Dimensions – 3900 mm (L) plus 1400 for draw bar x 2025 wide x 505 mm (H)
  •  Warranty – 12 months parts and labour, 36 month parts warranty

Tracked 25 HP Mini Loader 3900 Combo Only $43,990+GST or around $219 per week on finance



XL Digger Tipper Trailer Upgrade $6,990 + GST or around $35 per week on finance

Upgrade your standard trailer package to the XL digger tipper including:
  • Specialised removable implement rack – easy to lift out implement rack without having to reach over or remove the cage every time you need to change implement on site
  • Removeable cage – allows you to easily unbolt the steel cage so you can use your trailer at 2 different heights, depending on your job
  • Built in ramps – stored underneath the trailer for simple loading and unloading of your machine
  • Remote controlled hydraulic tipper with 5 stage ramp – heavy duty tipper with easy to access hydraulic lines, battery and remote so maintenance is as simple as possible
  • Extra heavy duty reinforced floor – allows you to tow your machine and implements safely and easily, or use the trailer for tipping dirt, timber, gravel etc
  • Hot dipped galvanised steel trailer – ensuring longer lifespan of your trailer as we only build premium hot dipped galvanised steel

Full specs and video tour of the XL Digger Tipper Trailer

XL Digger Tipper Trailer Upgrade $6,990 + GST or around $35 per week on finance

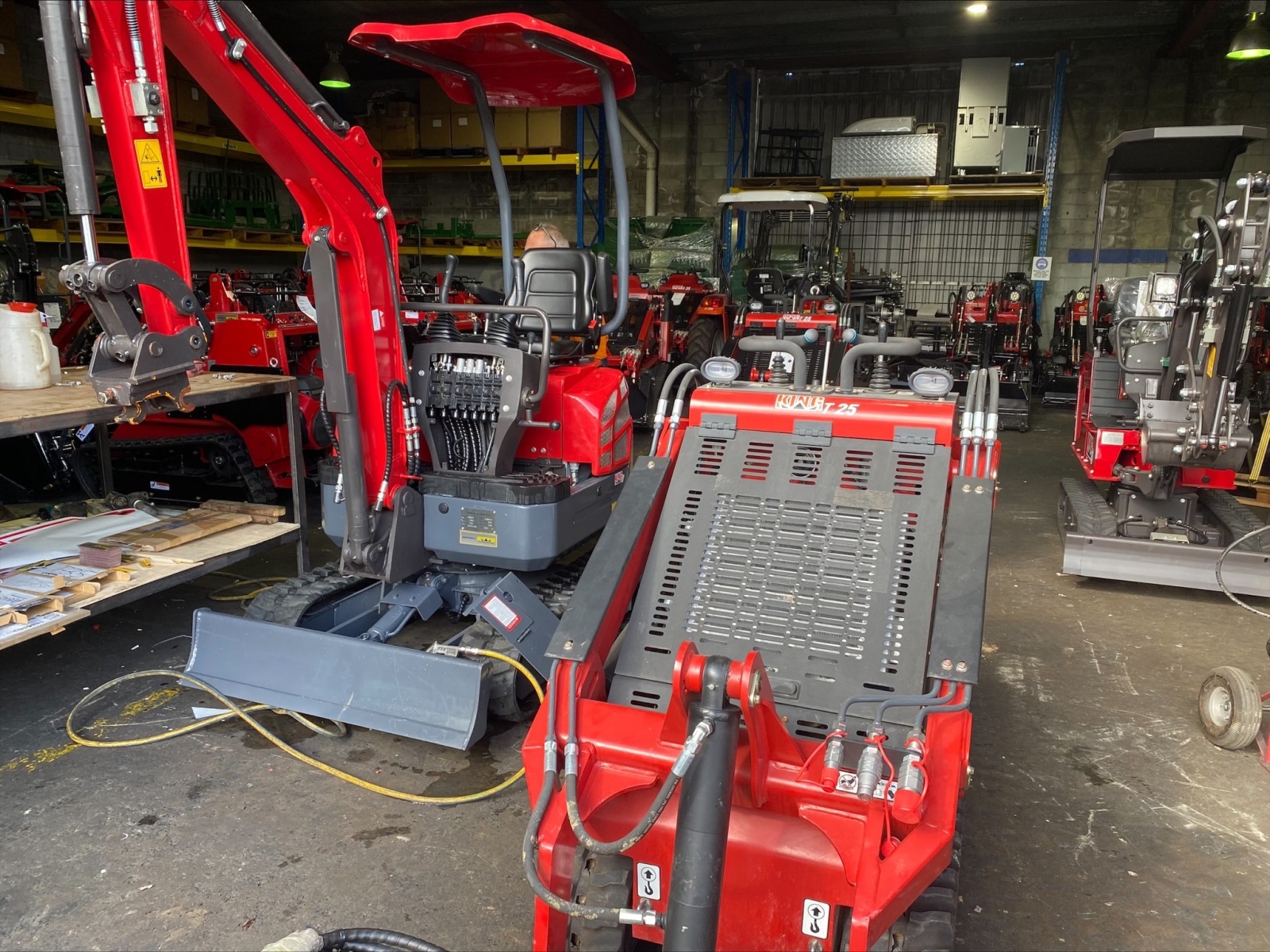

You can view all the The Digger King diggers online by registering to watch the video, or view them in person at our 800 sqm factory and showroom, located in South Murwillumbah, just 15 minutes south of the Gold Coast – but please call to book a time first. All diggers are on display

Delivery at cost or you can pick up.
We organise custom pricing including the attachments you require in your package, then raise your invoice so everything is clear for you. Once you are happy with everything, you either pay your deposit to go into production, with your balance due once production is complete and your digger is ready for delivery, or if you are applying for finance, you will deal with the finance broker directly to get your loan approved.

Please note: The finance is via a broker; the criteria for applicants is that you need to be a permanent resident or citizen, and either working PAYG, or have had income on an ABN either as a sole trader or through your company.  Unfortunately Centrelink and Disability Pension do not qualify for finance.




Engine

Engine Make Honda
Fuel Type Petrol
Rated Power 25 hp (17.1 kw)

Hydraulic System

Pump Brand Hansa TMP (Italian) 2 Stage
Valve brand Hydra Control Joystick (Italian)
Pressure 2610 PSI (180 Bar)
Flow 53 L/Min
Cooler Alloy Radiator

Driving System

Motor Brand Danfoss (Denmark)
Pressure 3625 PSI (250 Bar)
Flow 53 L/Min
Speed 5 Km/h

Aux Circuit

Valve Brand Trinity Flat Faced Couplers (Italian)
Pressure 2610 PSI (180 Bar)
Flow 53 L/Min

Fluid Capacities

Fuel 15 L
Hydraulic Oil 30 L
Engine Oil 1.5 L

Specifications

Load capacity – 300 kg
Weight – 890 kg
Dimensions – 1740 mm (L) x 830mm (W) x 1370 mm (H)
Warranty – 12 months parts and labour, 36 month parts warranty

DIMENSIONS KING T25





Tracked 25 Mini Loader Package Only $19,990+GST or around $99 per week on finance

Tracked 25 Mini Loader and Trailer Premium Package $26,990+GST or around $139 per week on finance

Tracked 25 Mini Loader and 3900 Trailer Combo Package $43,990+GST or around $219 per week on finance
