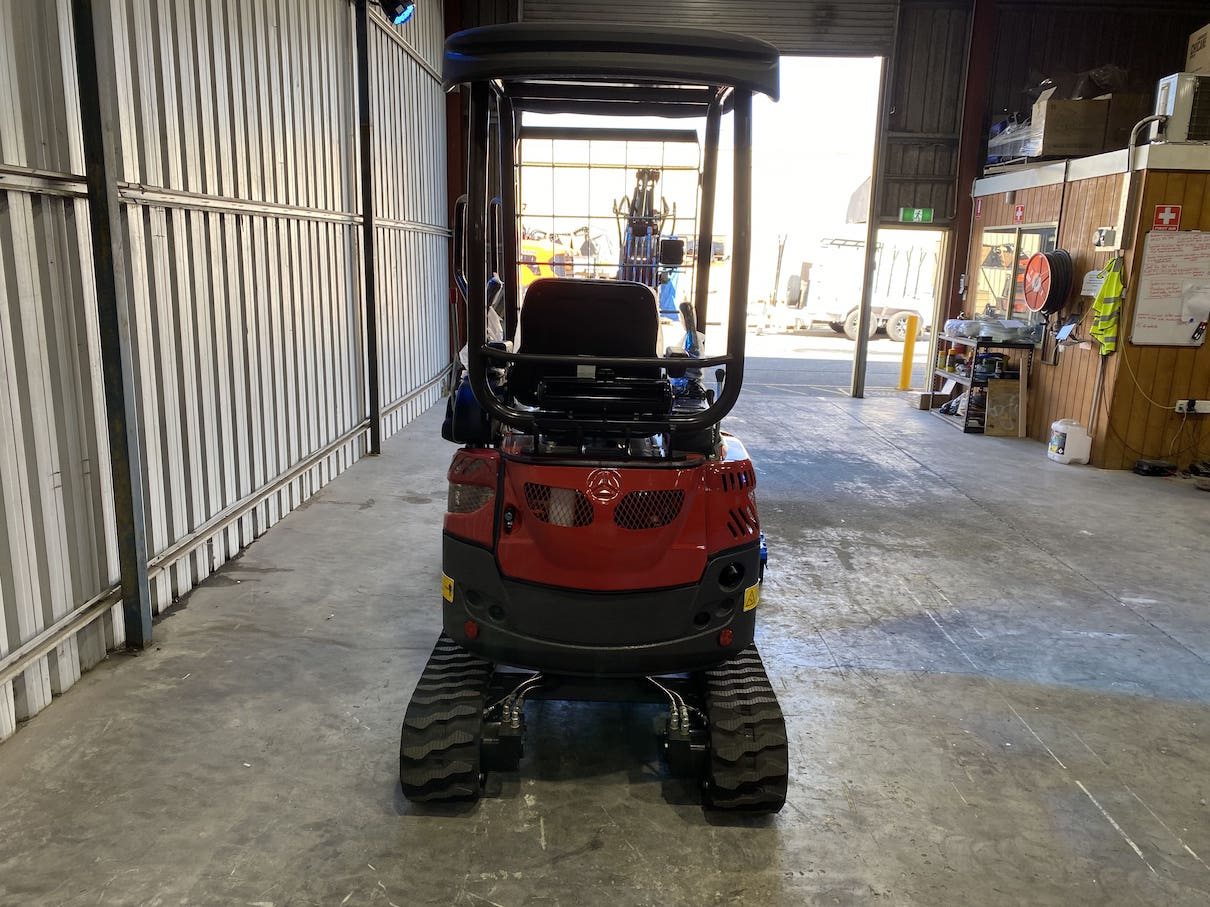

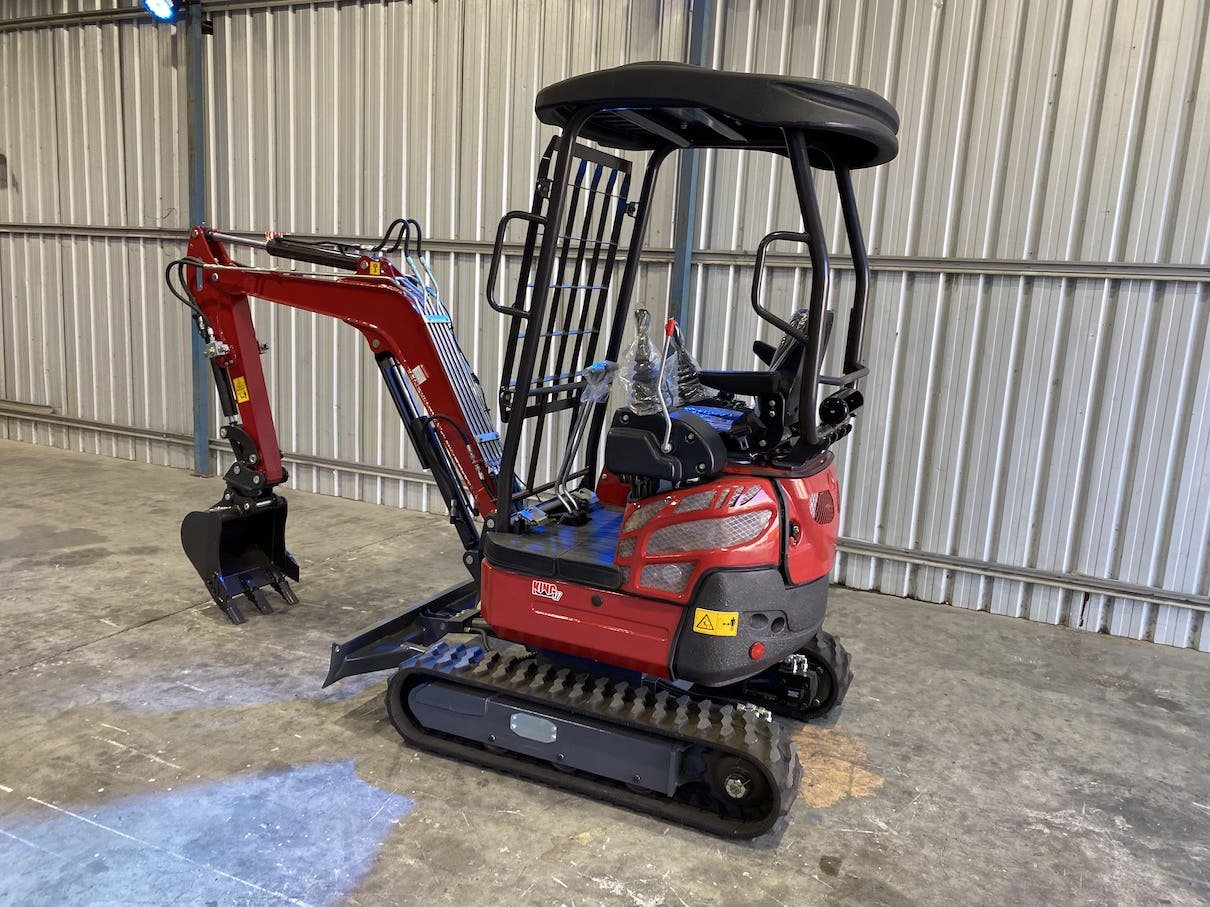

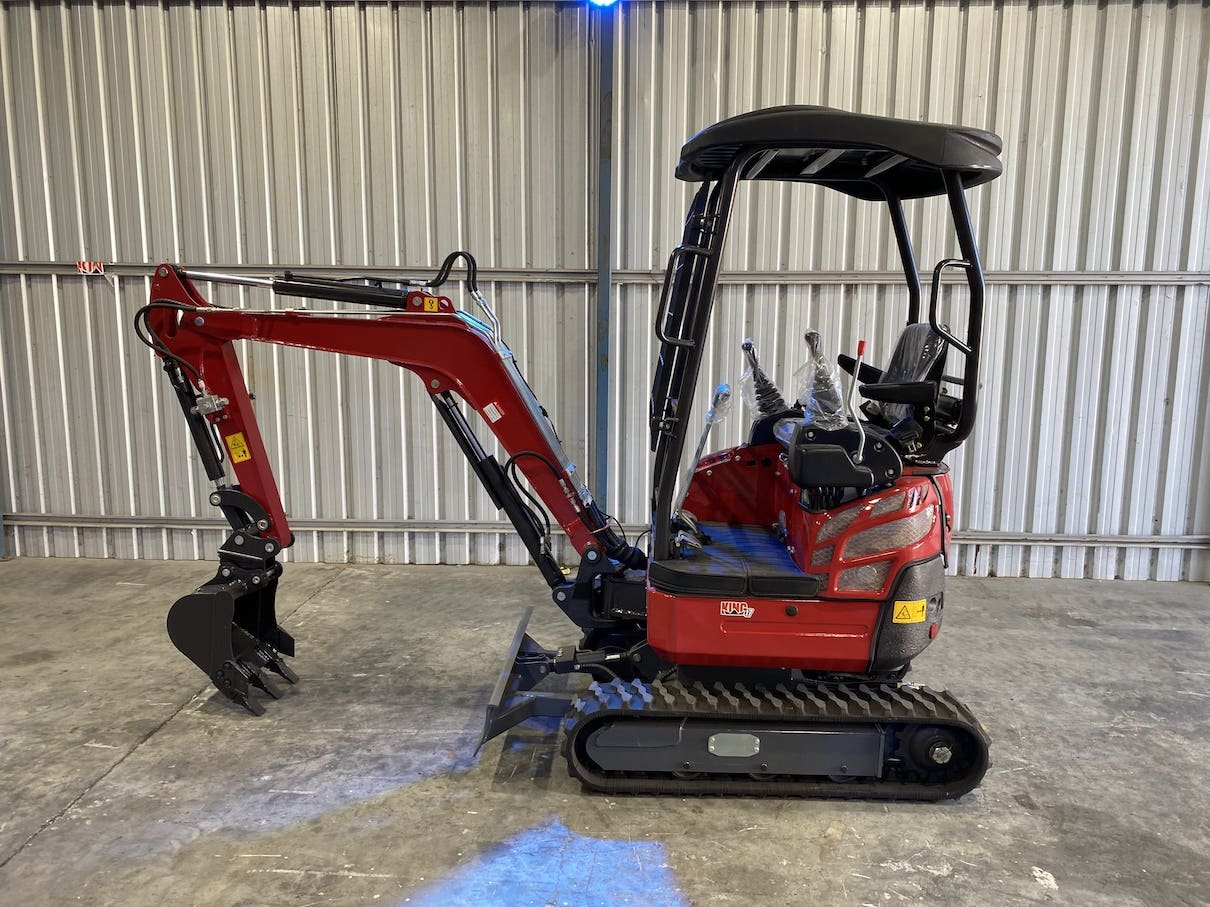

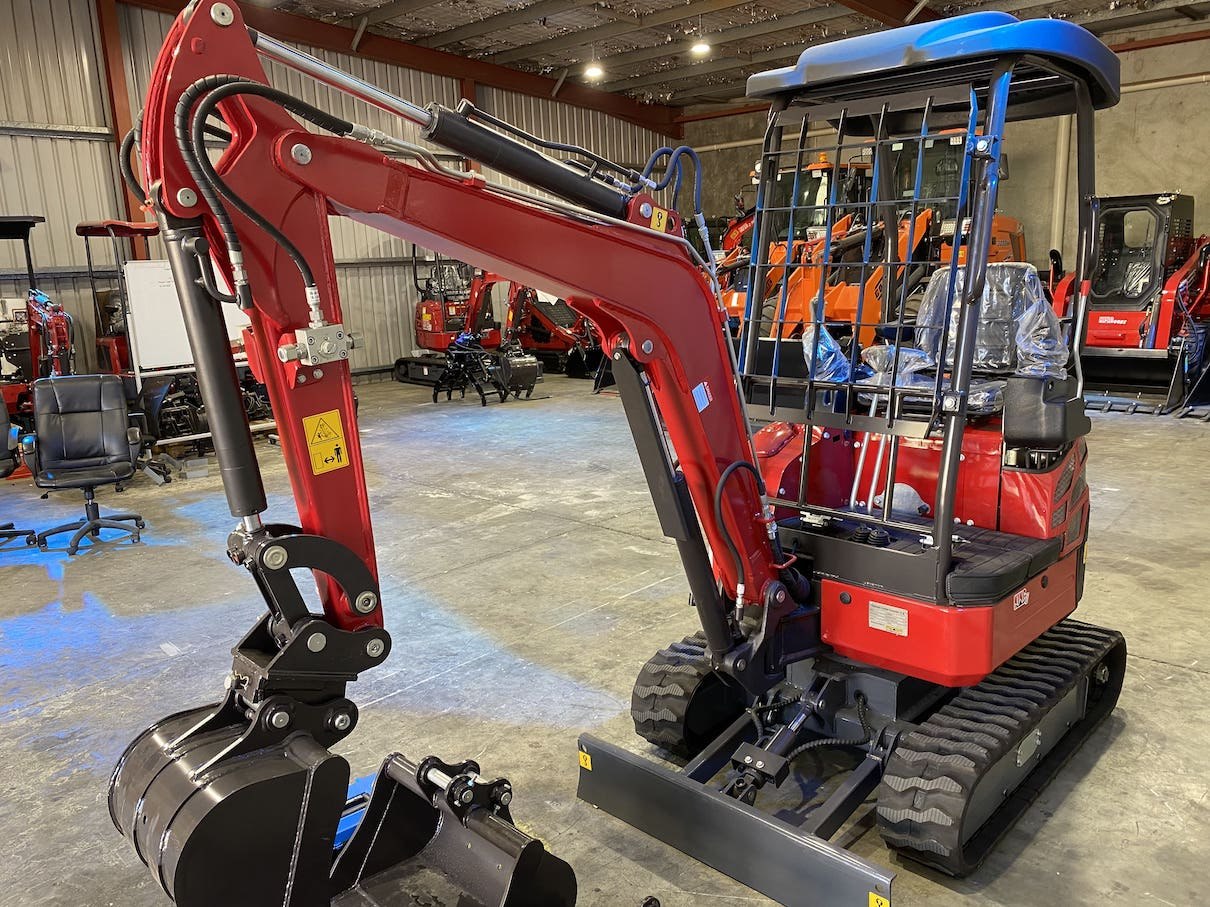

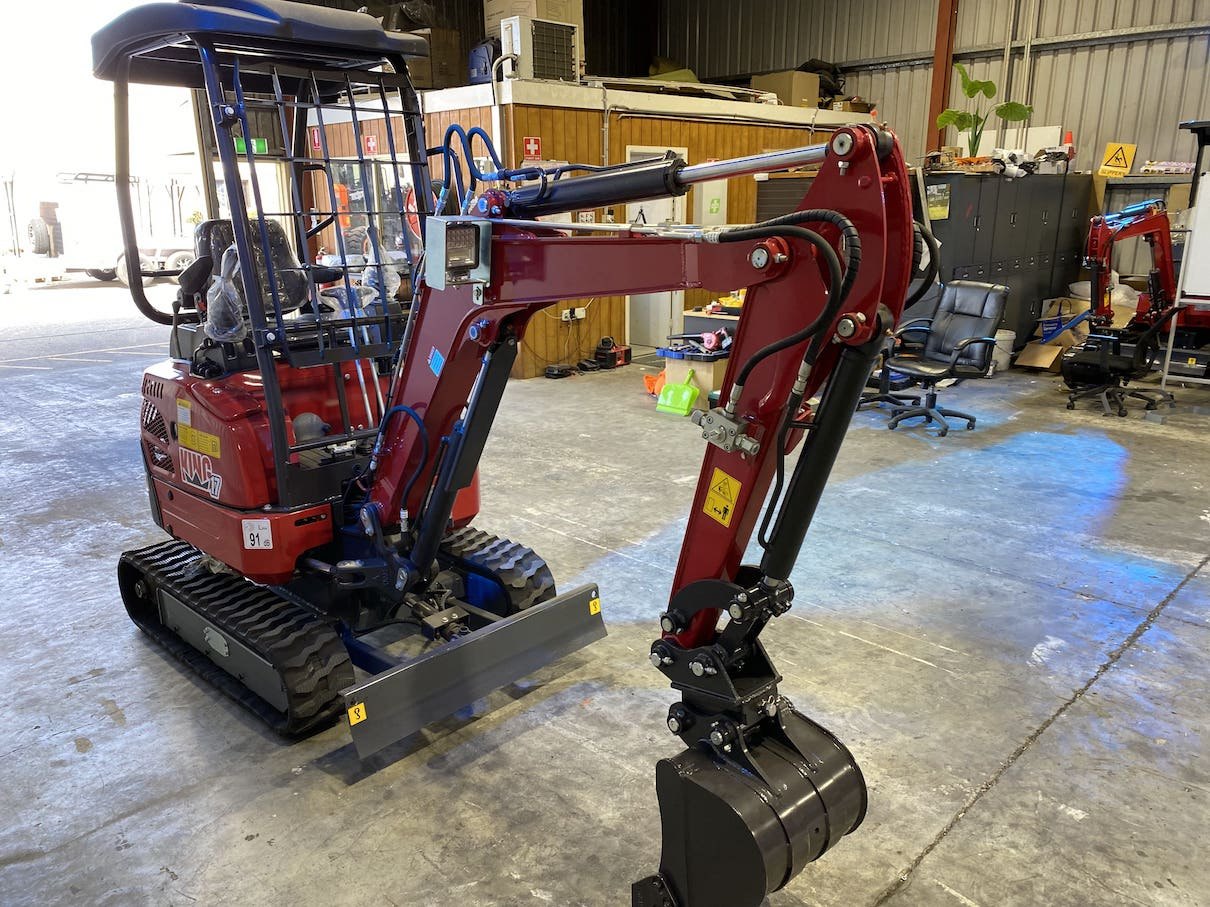

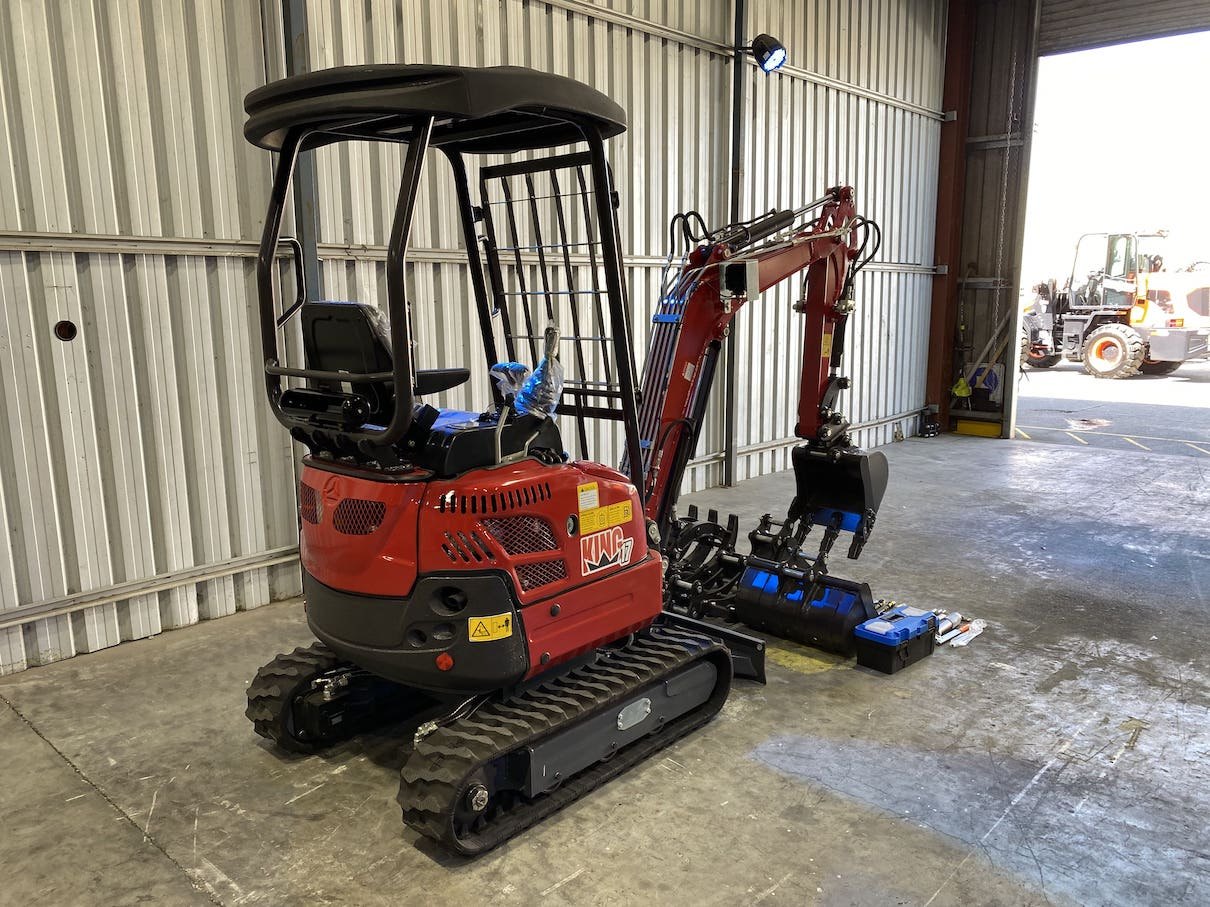

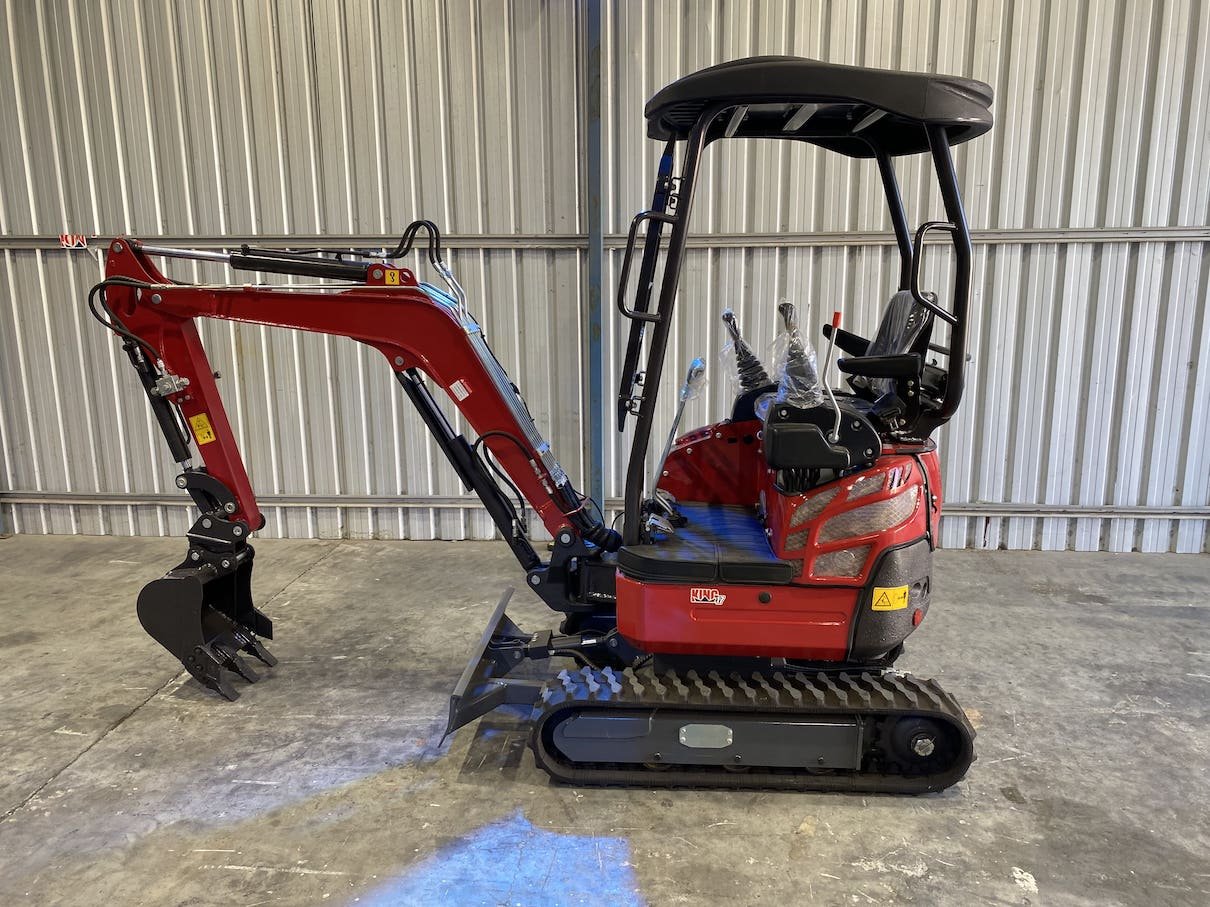

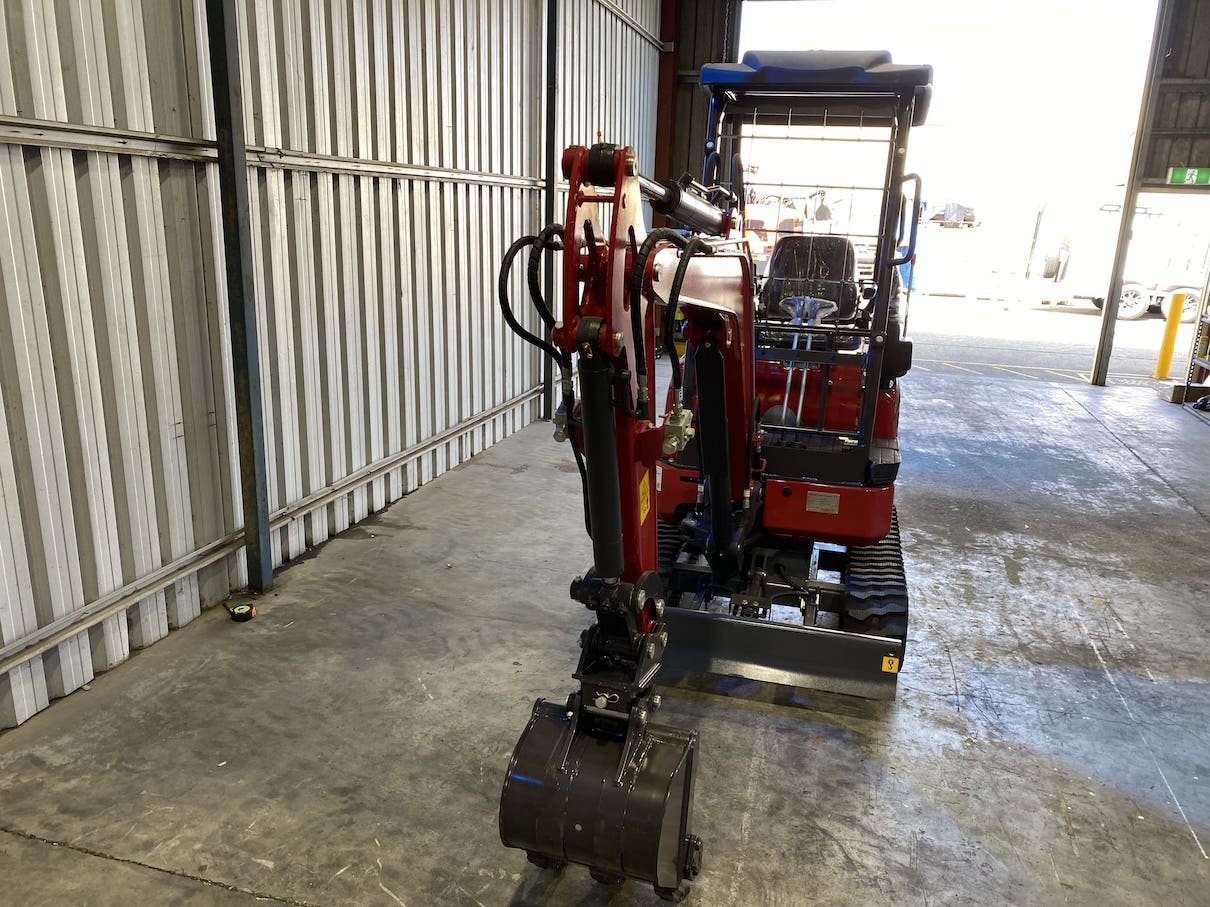

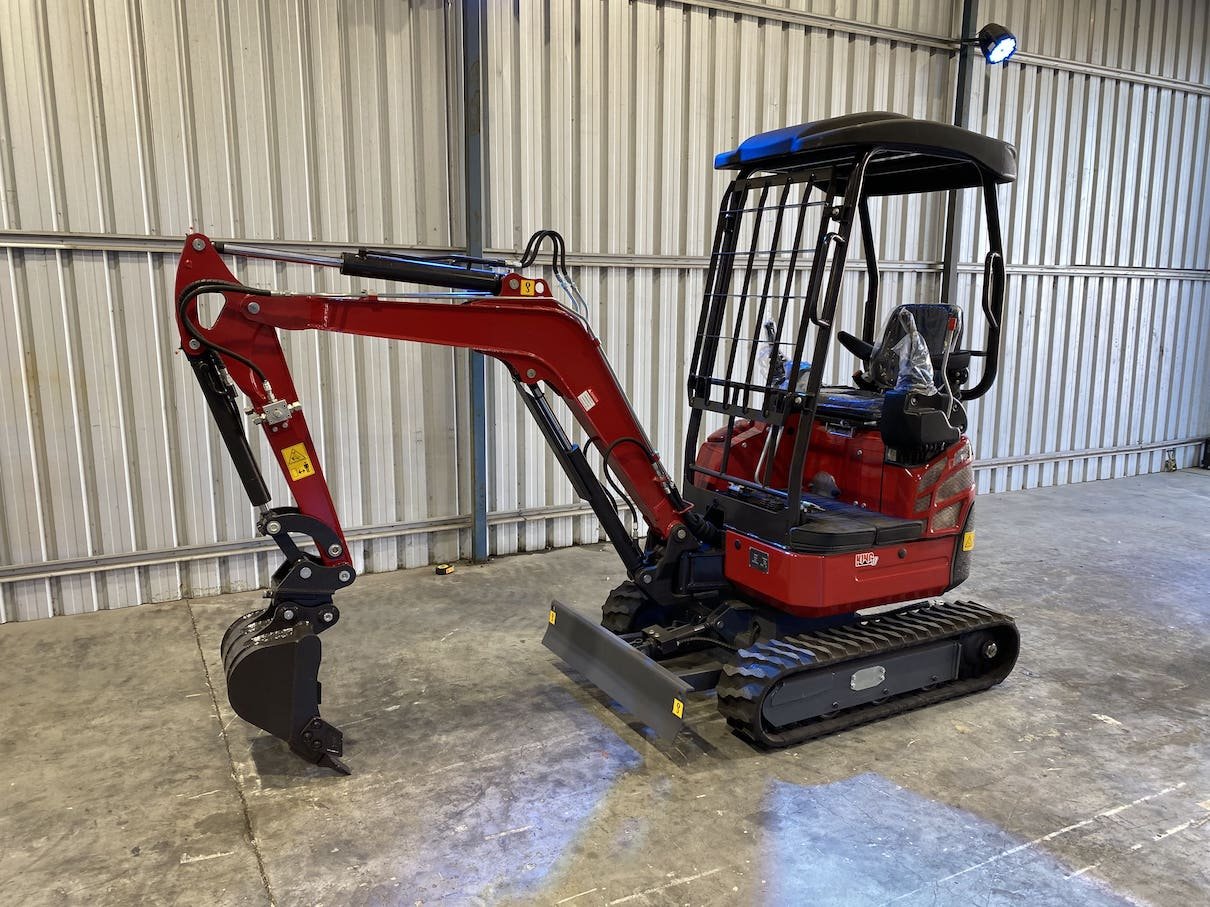

Do you have property you need to take care of? The 1.7 S digger gives you the speed to do the jobs fast and with no hassles
Maybe you have a hobby farm, you make some extra $ on the weekends, you know you can make more money and you just need the right digger to do it?
Has your current digger given up the ghost or is barely performing? You want a new one but don’t want to spend huge $ on a brand name that, when it comes down to it, you are just paying for the brand and not much more?

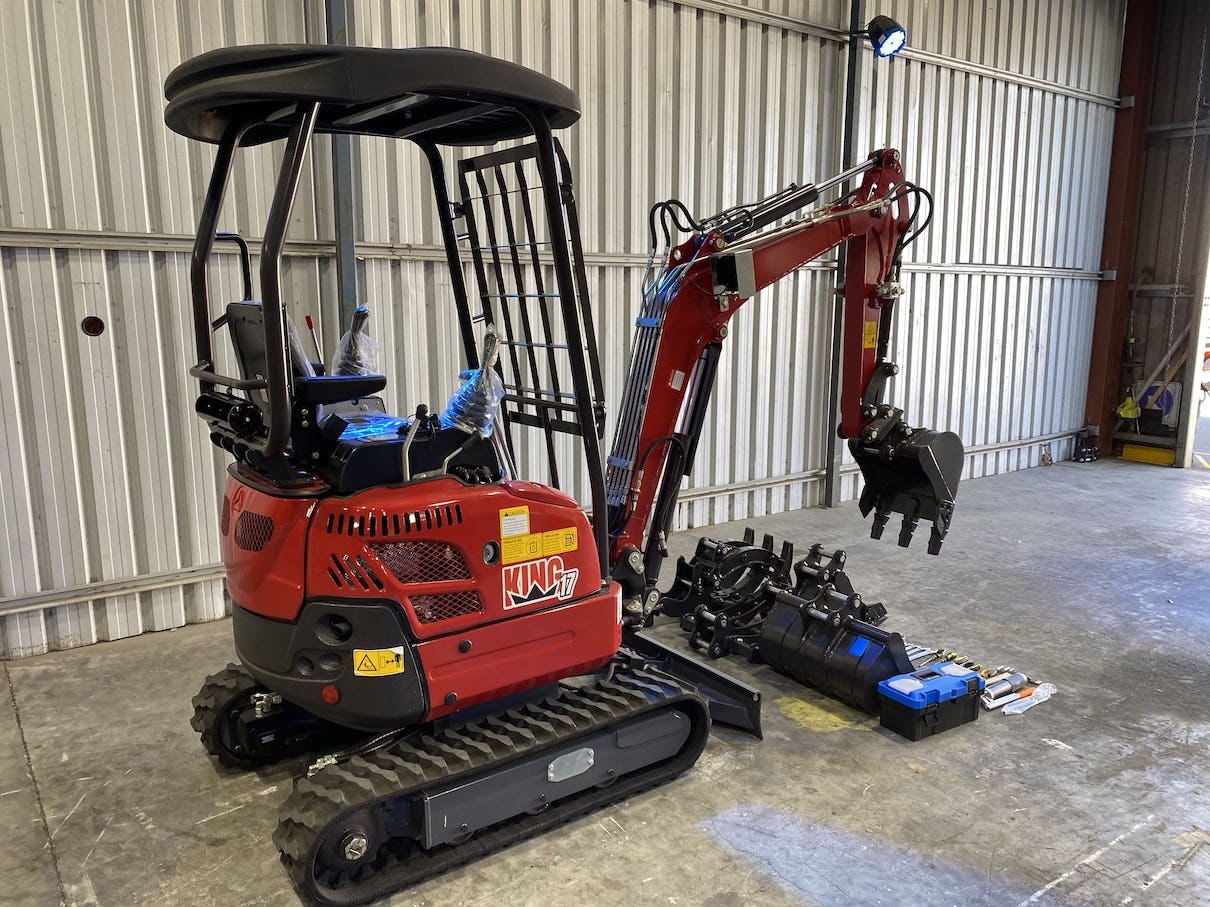

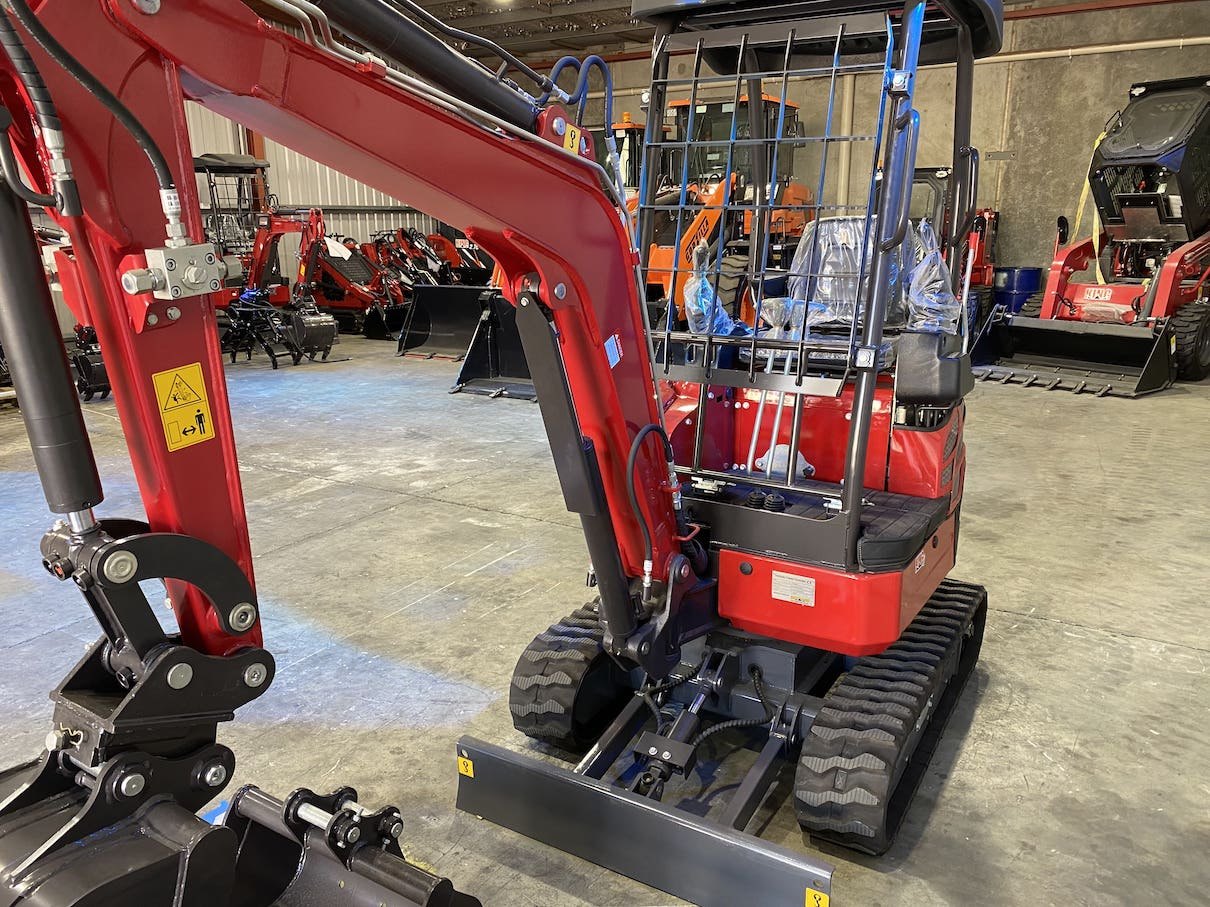

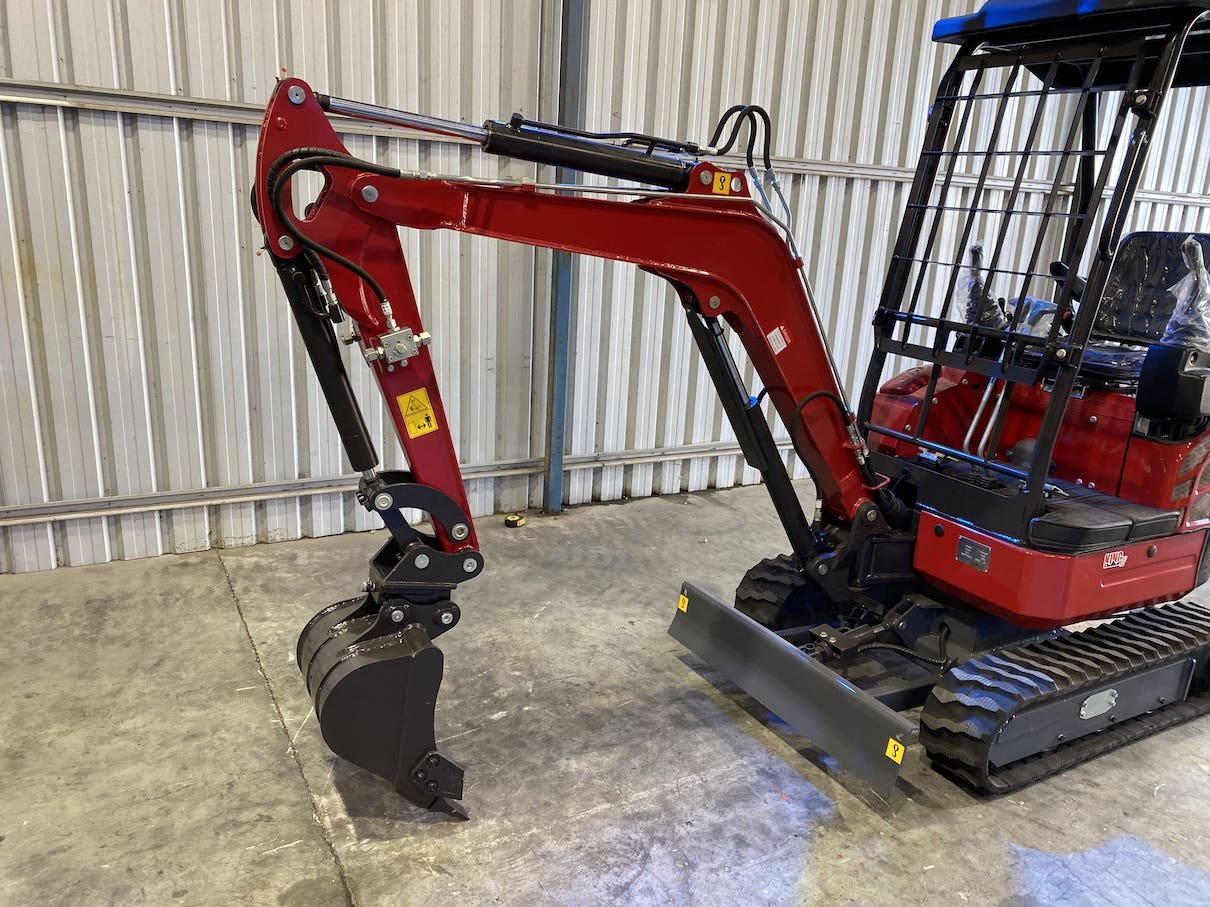

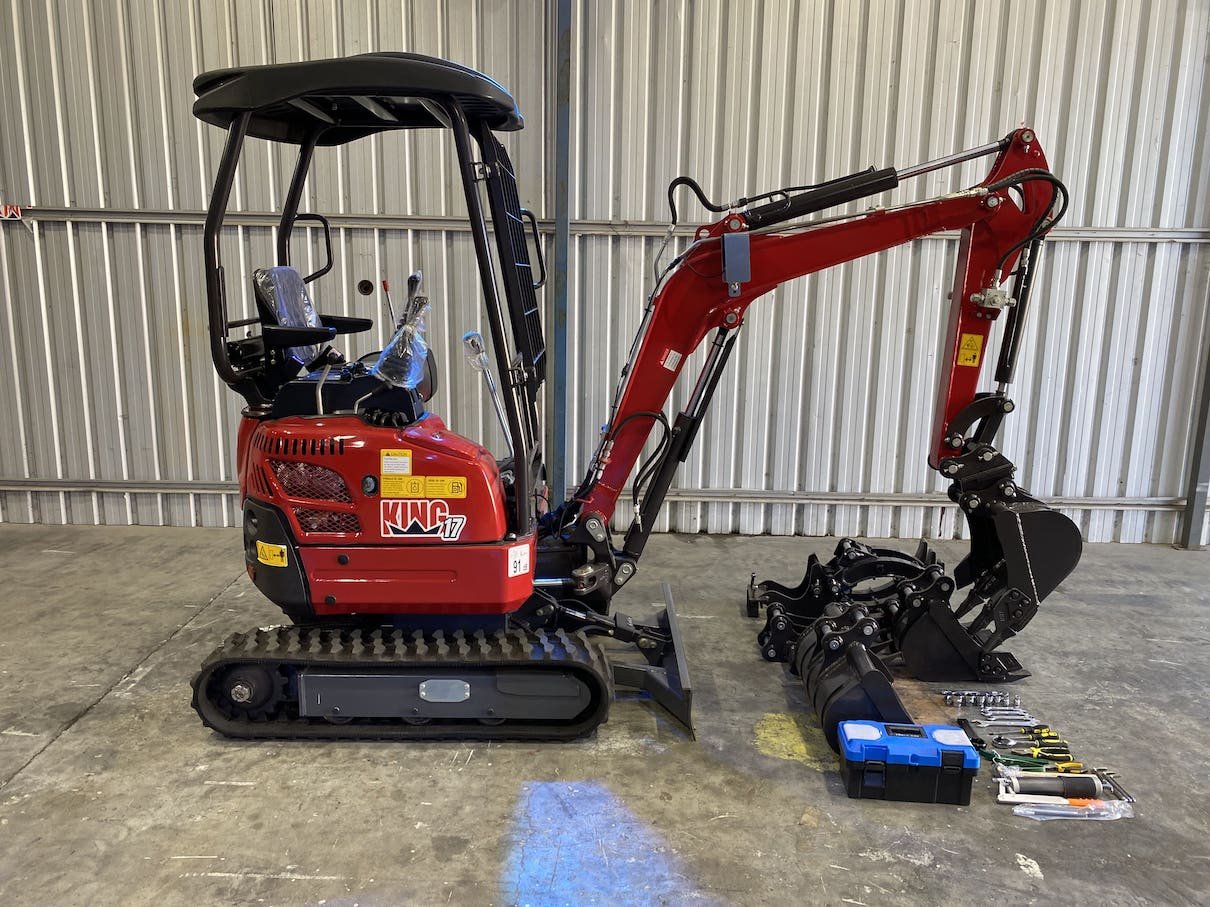

If you answered yes to any of the above questions, then we have great news: The 1.7 S digger is here so you can get your jobs done. Our turnkey 1.7 S is truly an amazing machine and probably just right for you.

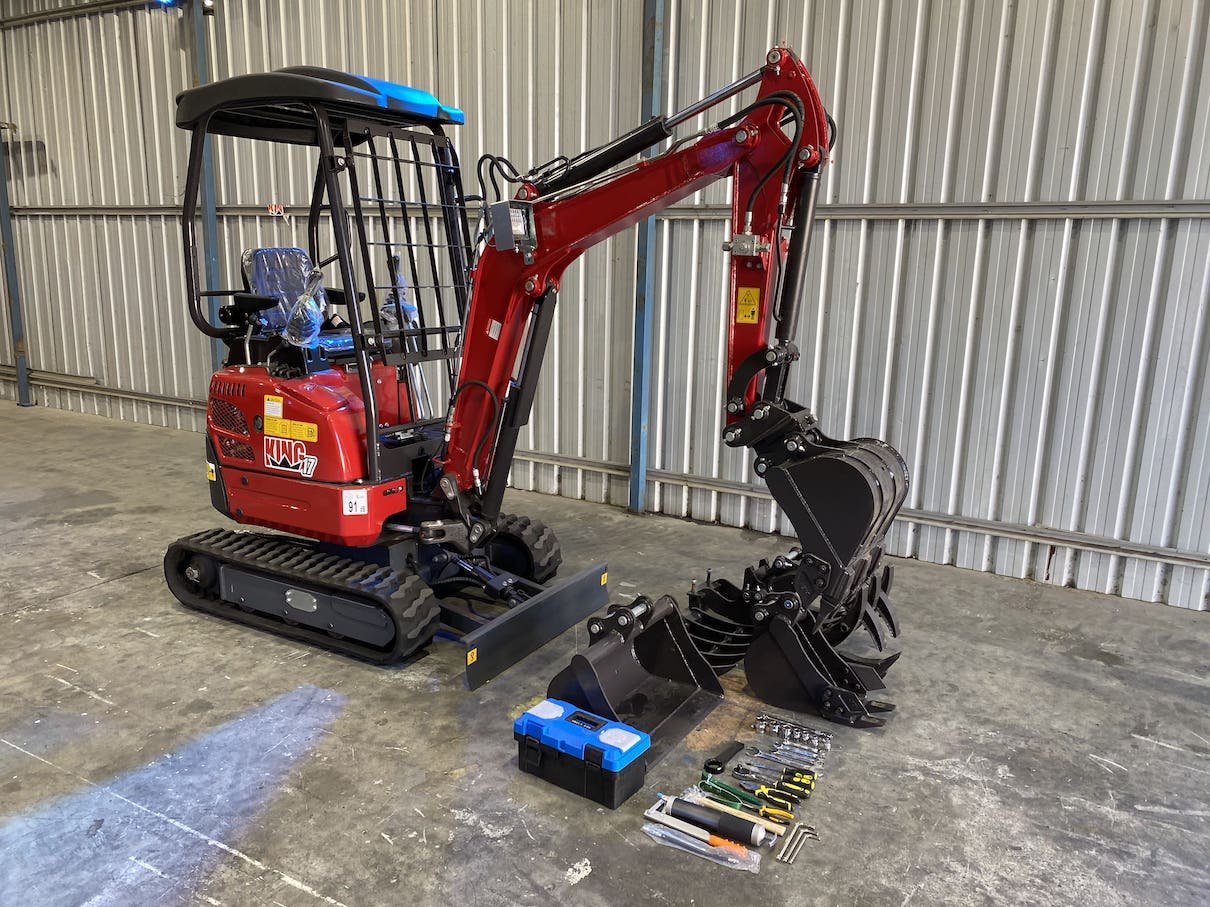

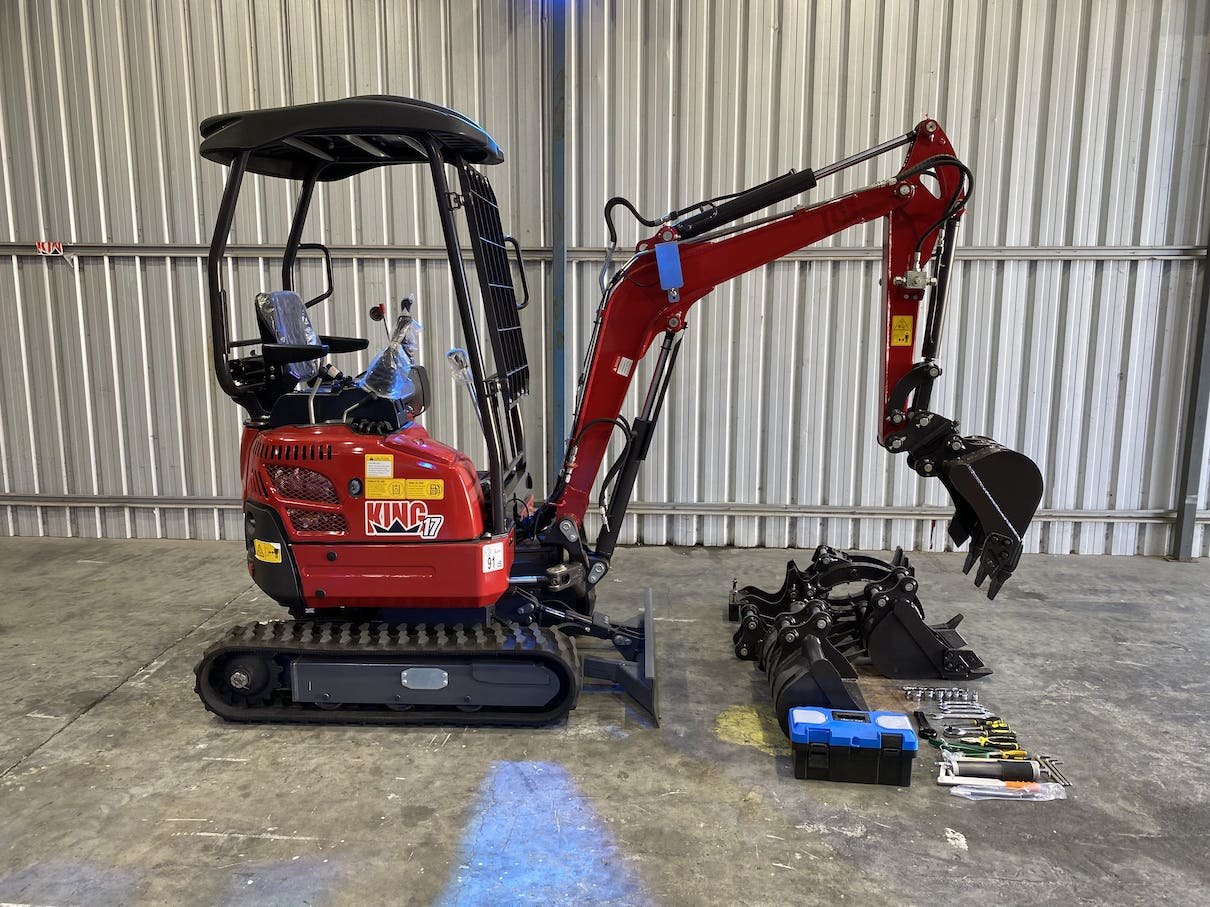

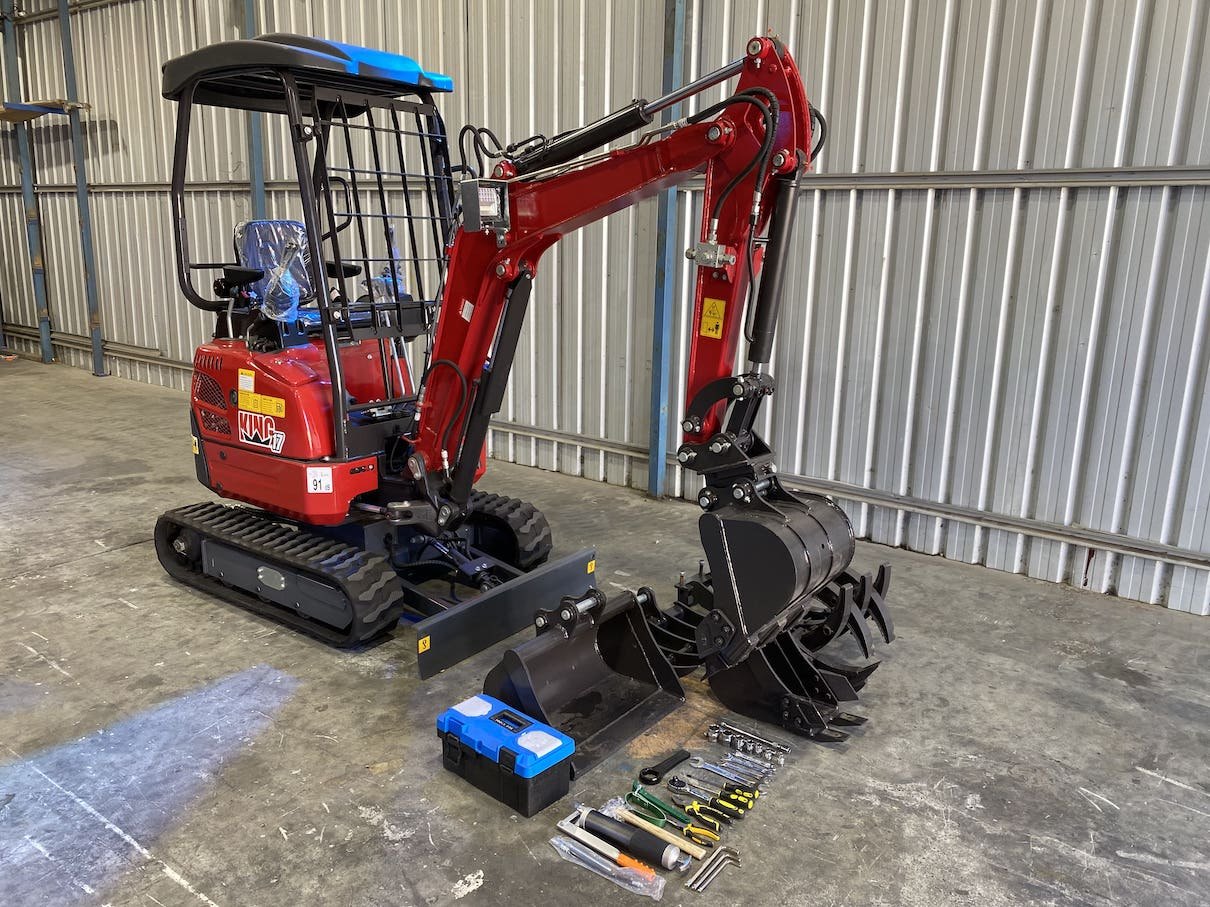

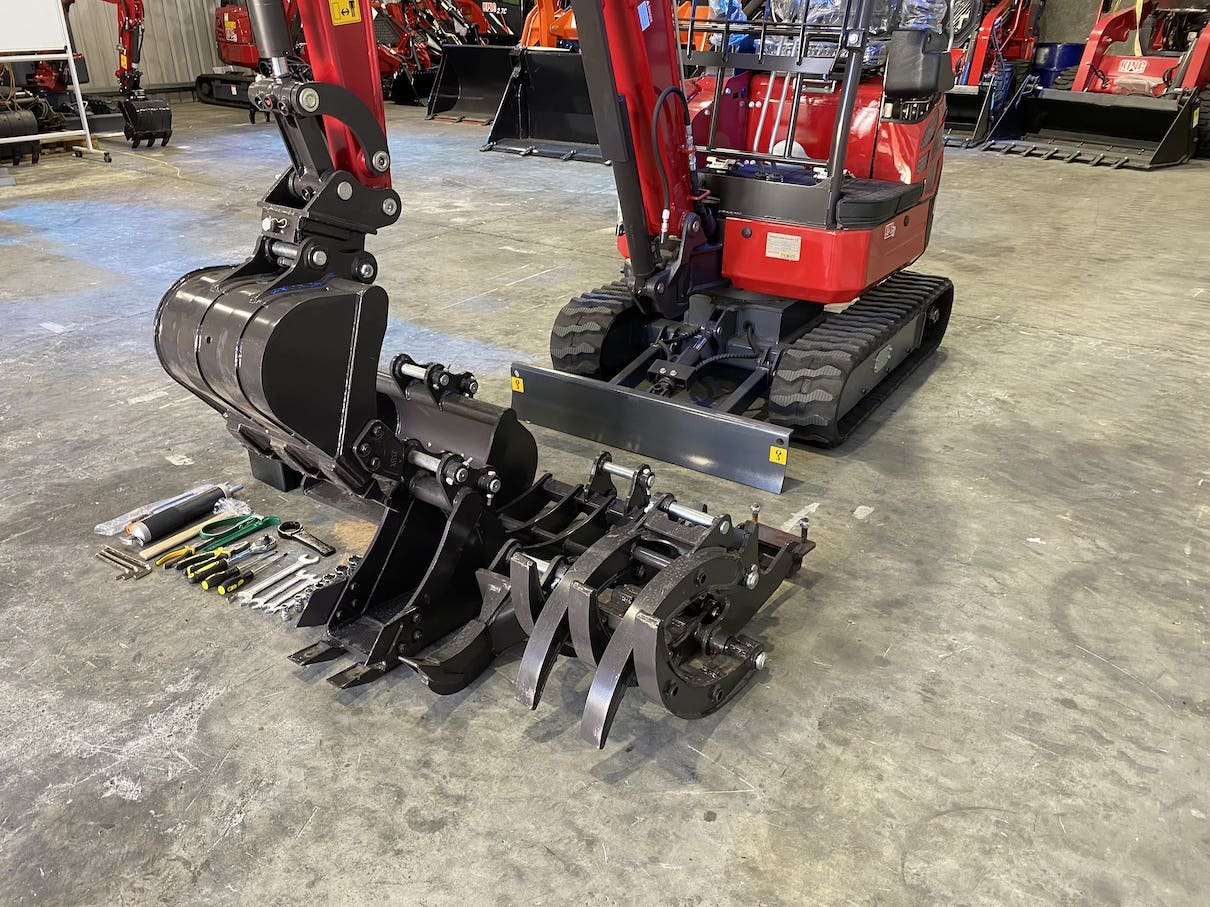

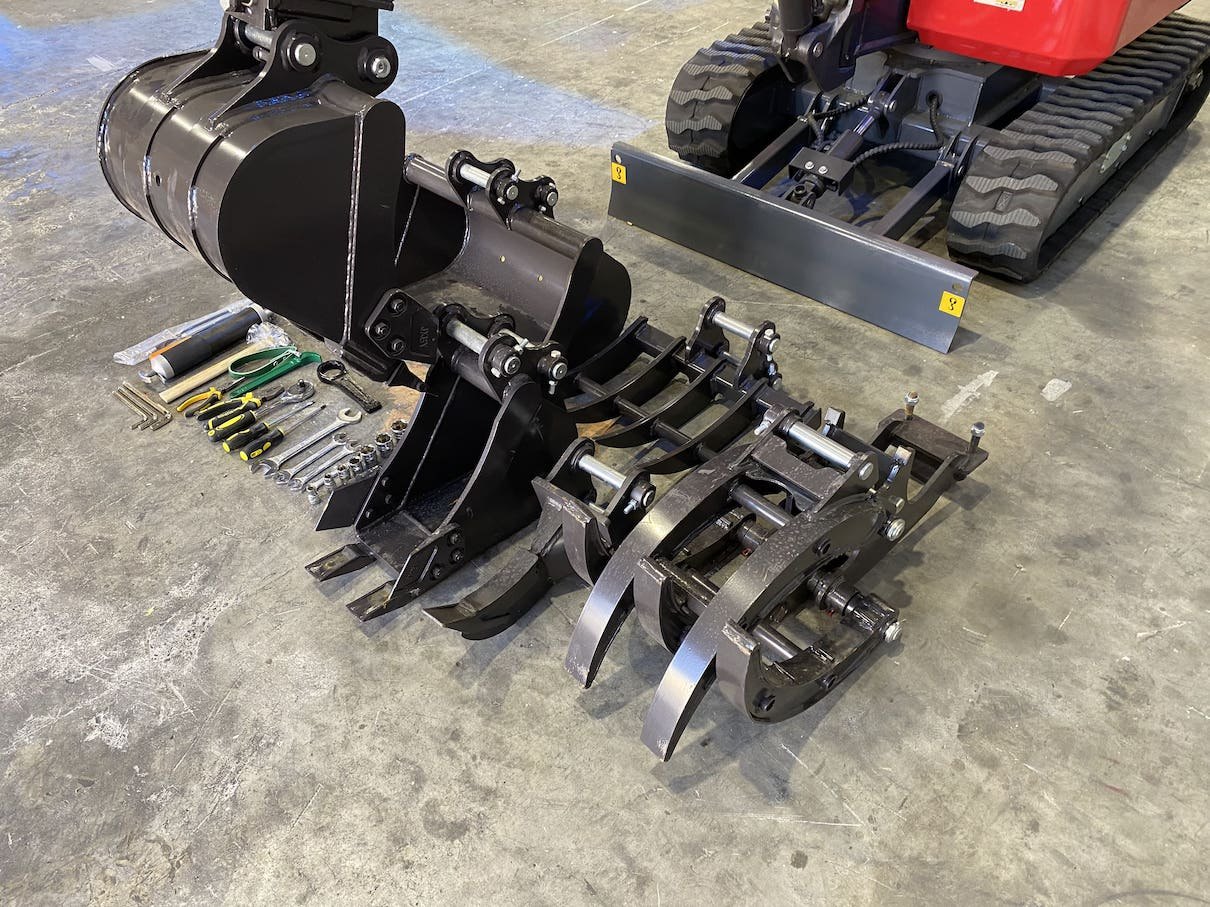

Everything in the standard Machine and Implements package, plus:

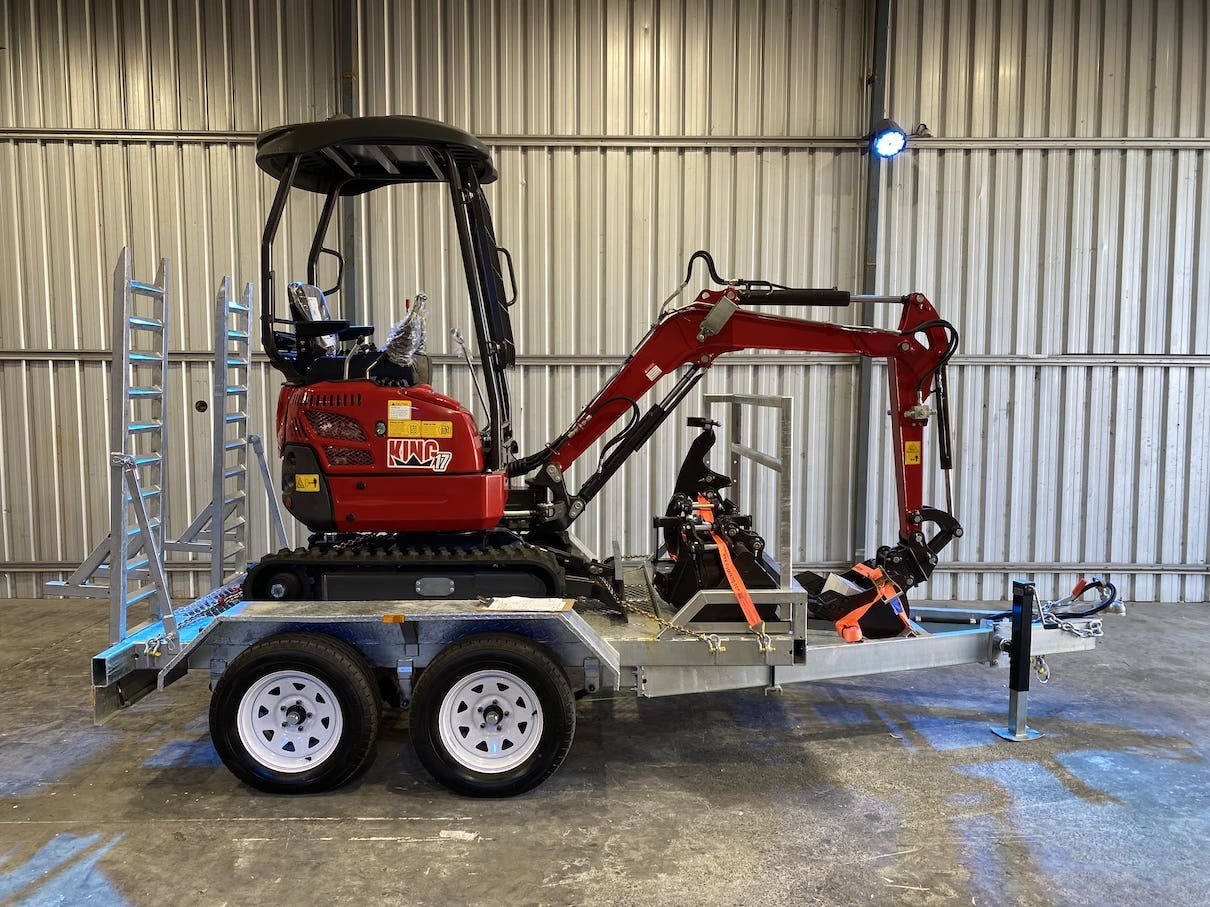

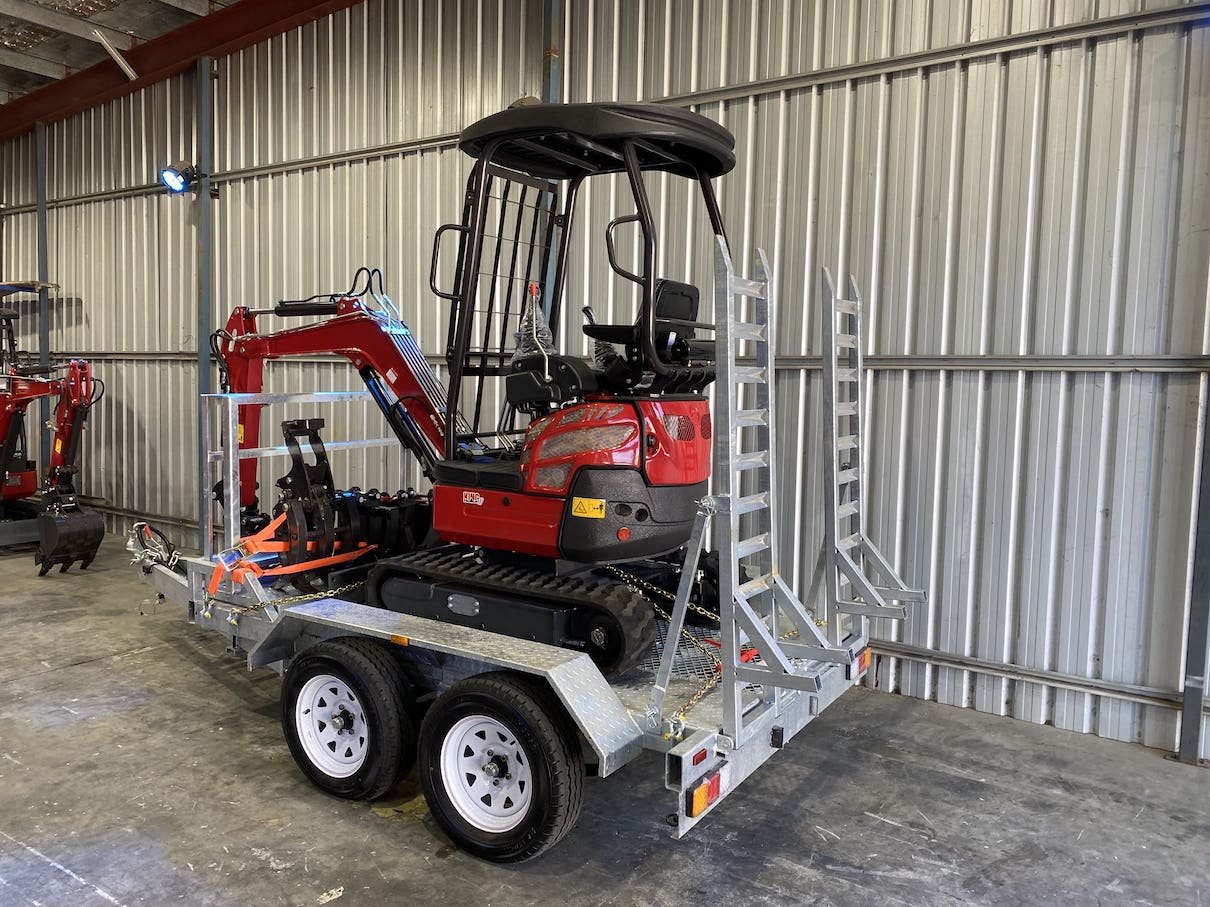

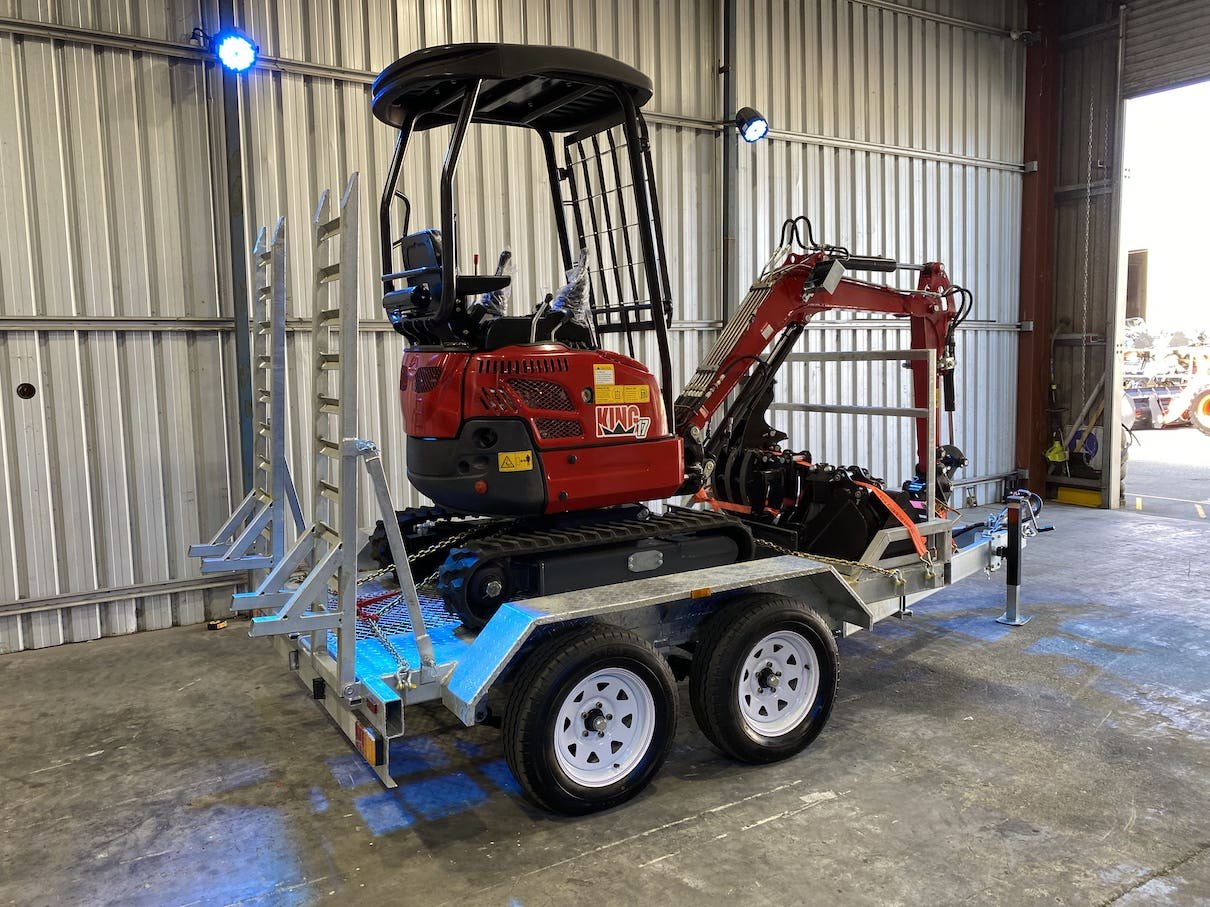

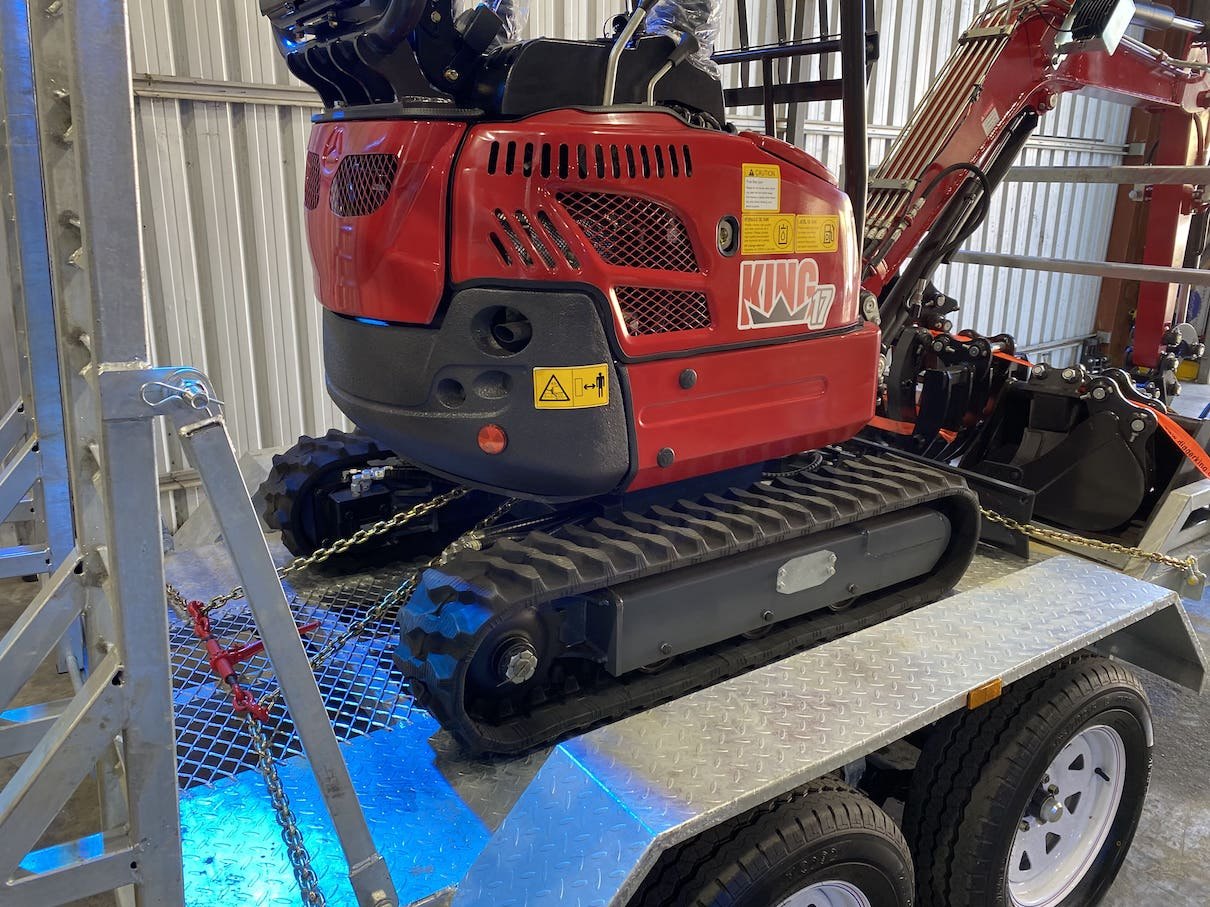

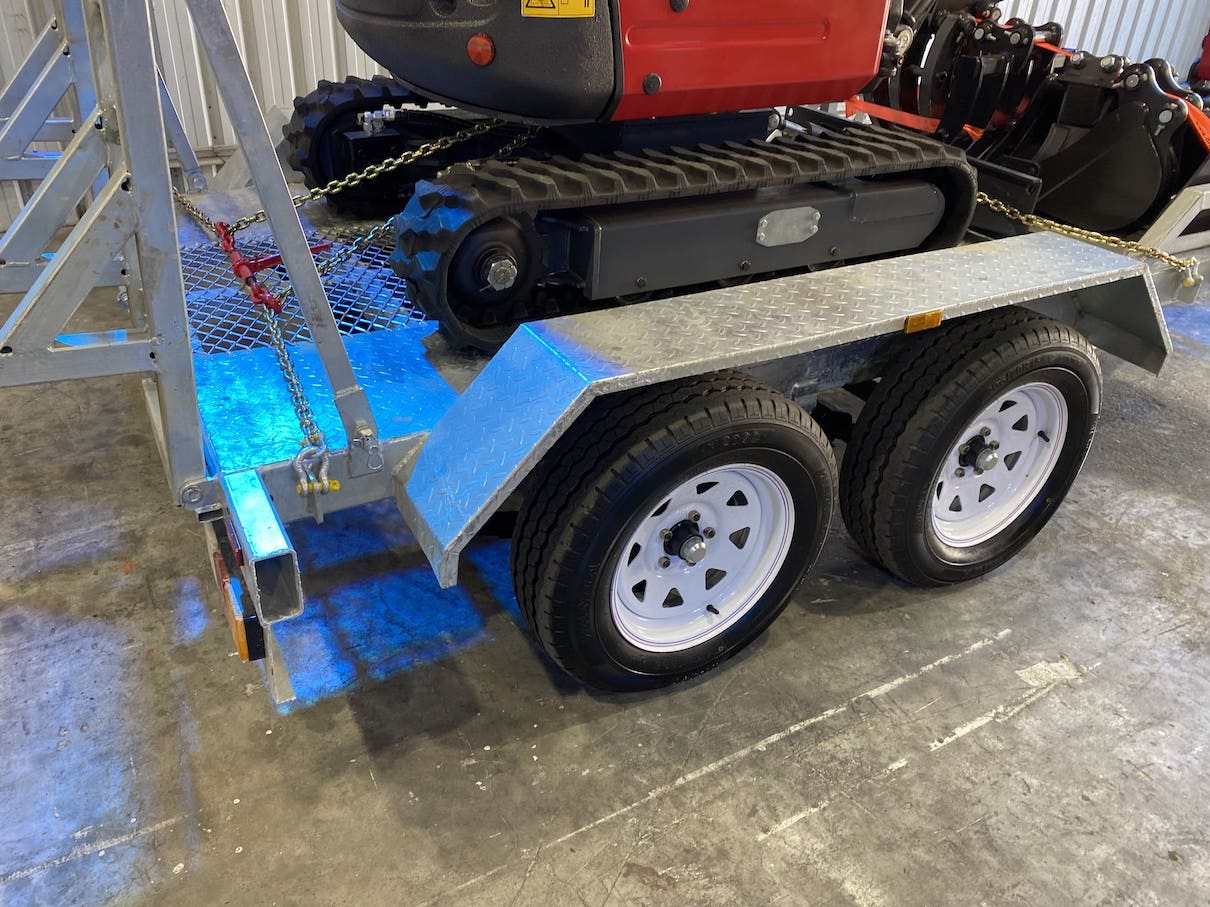

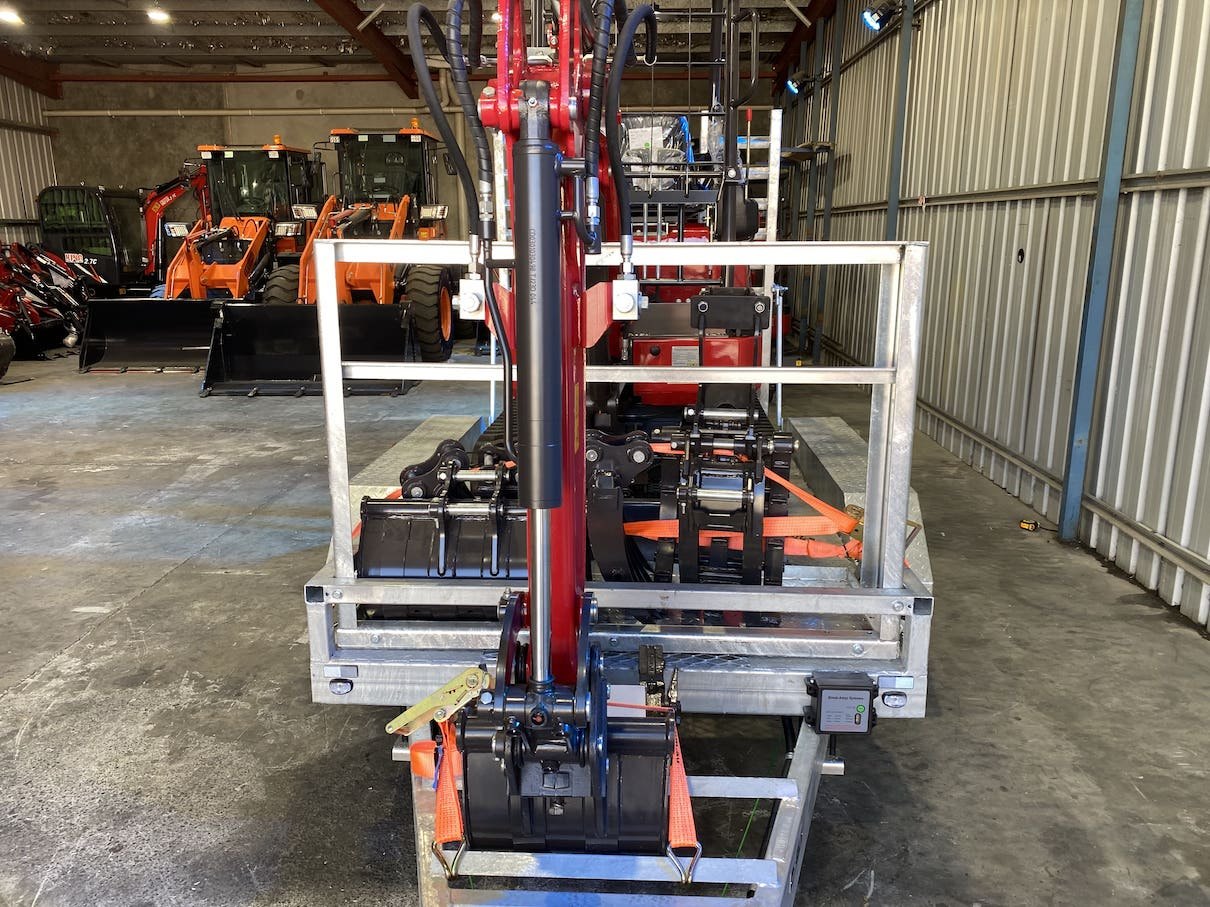

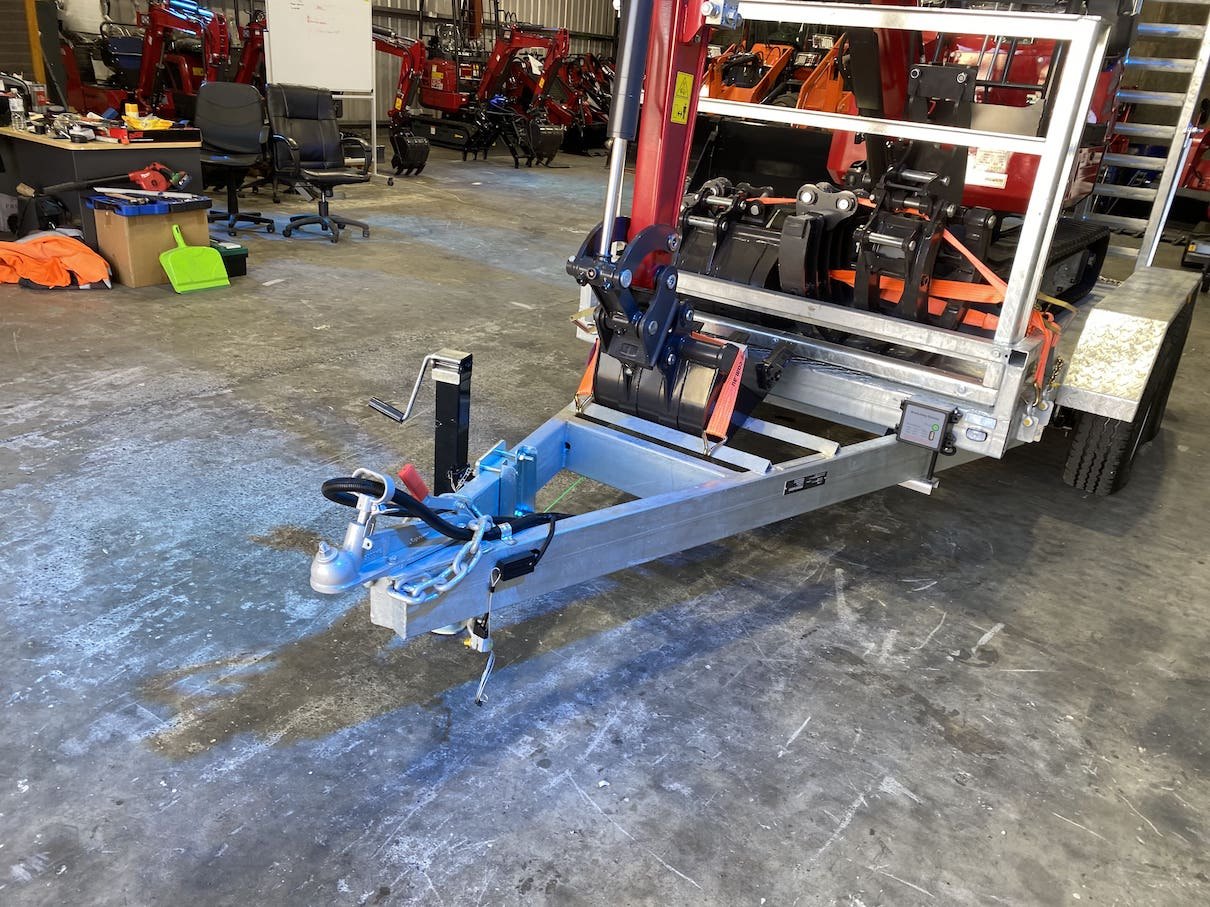

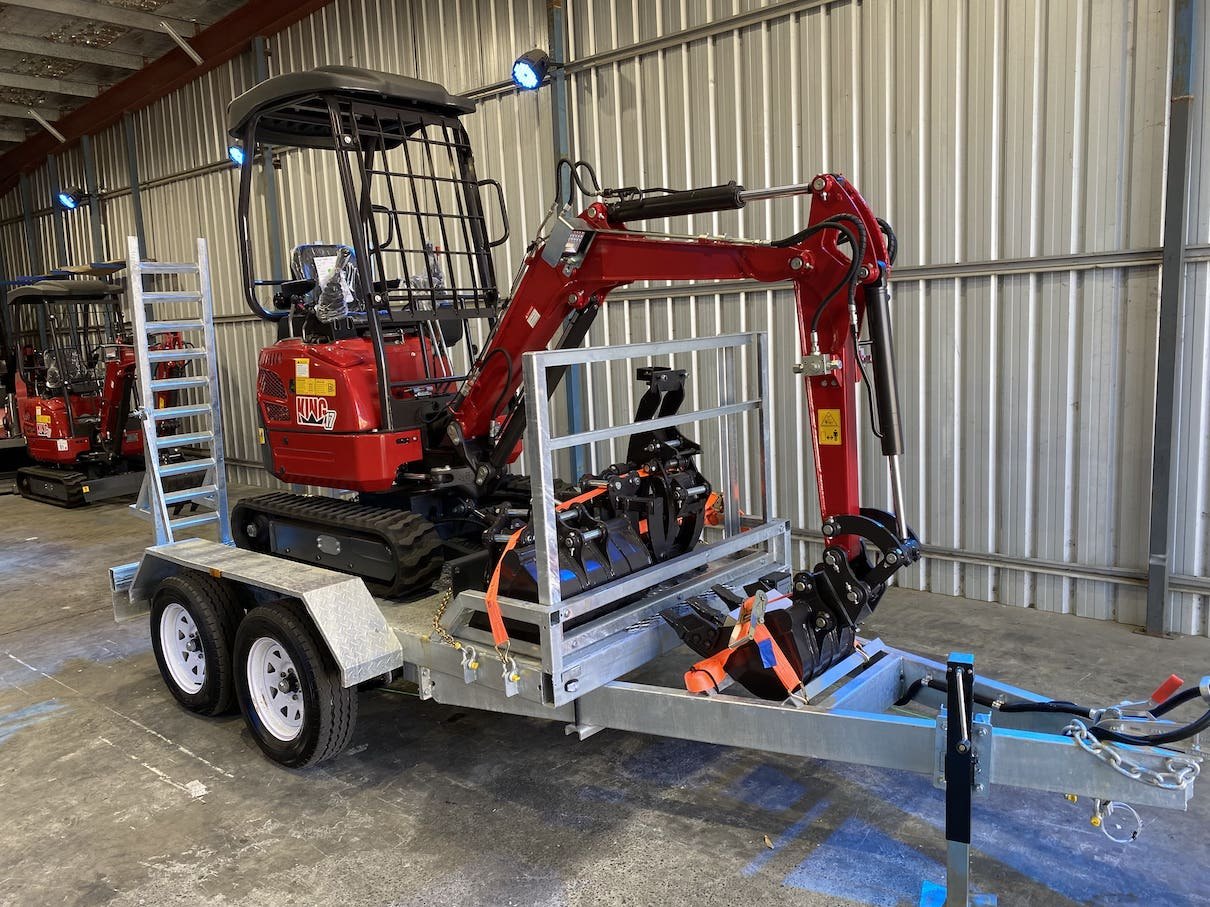

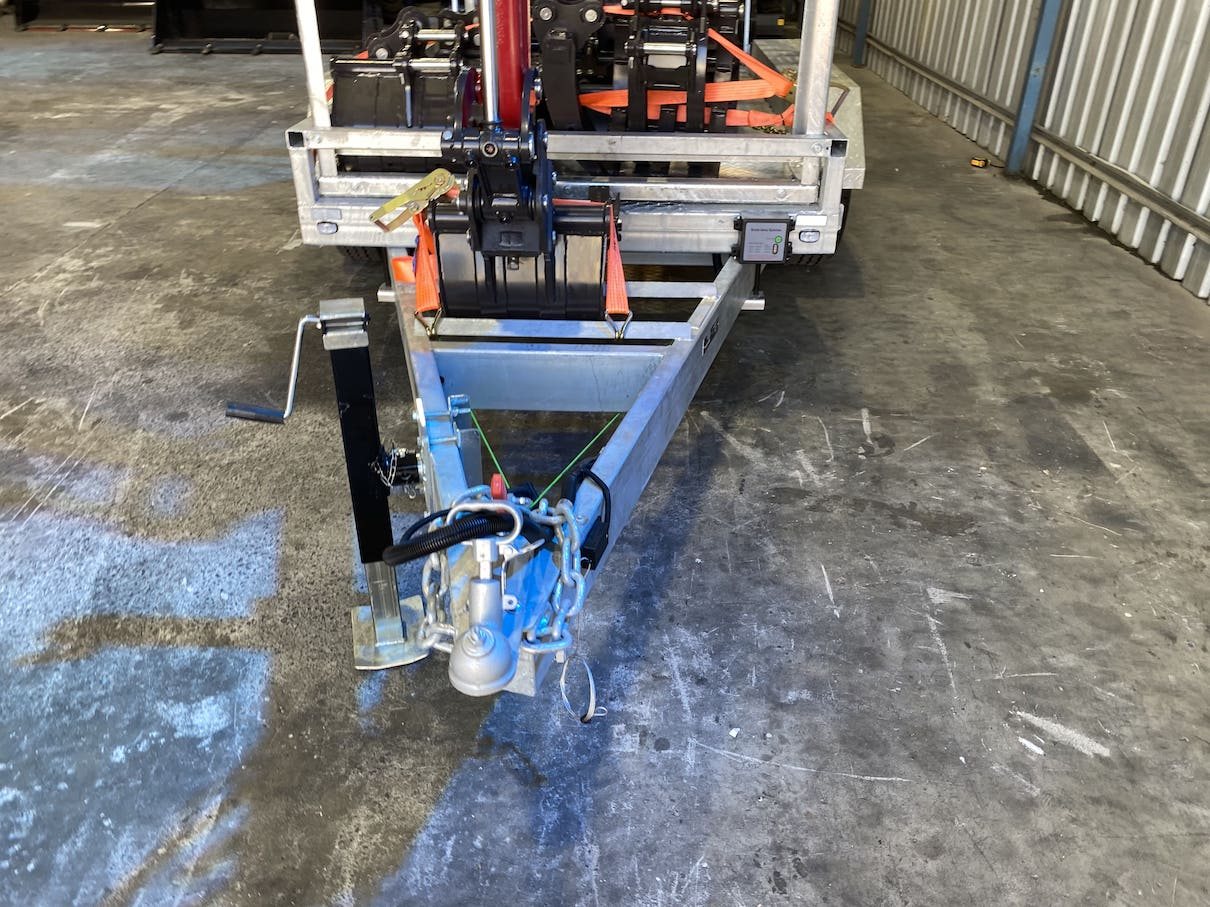

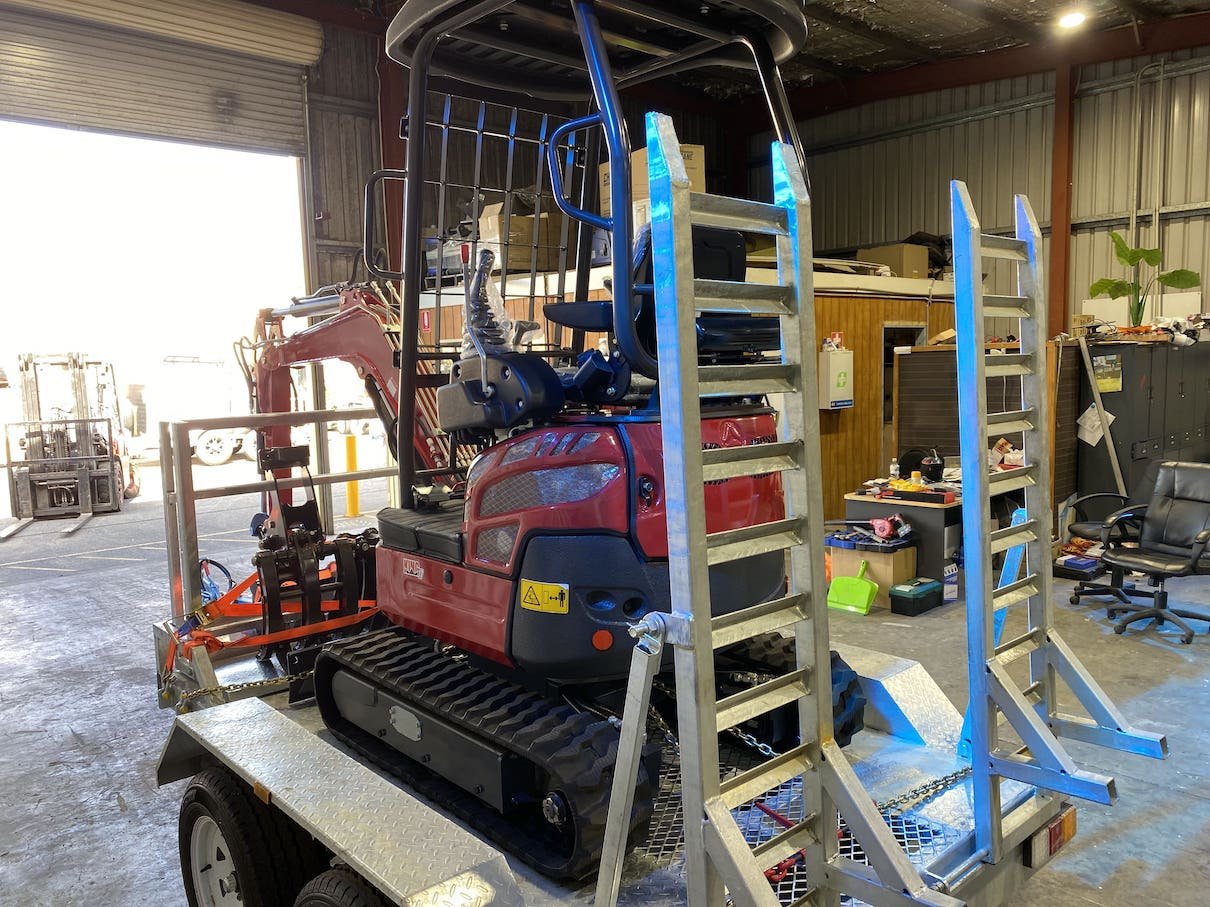

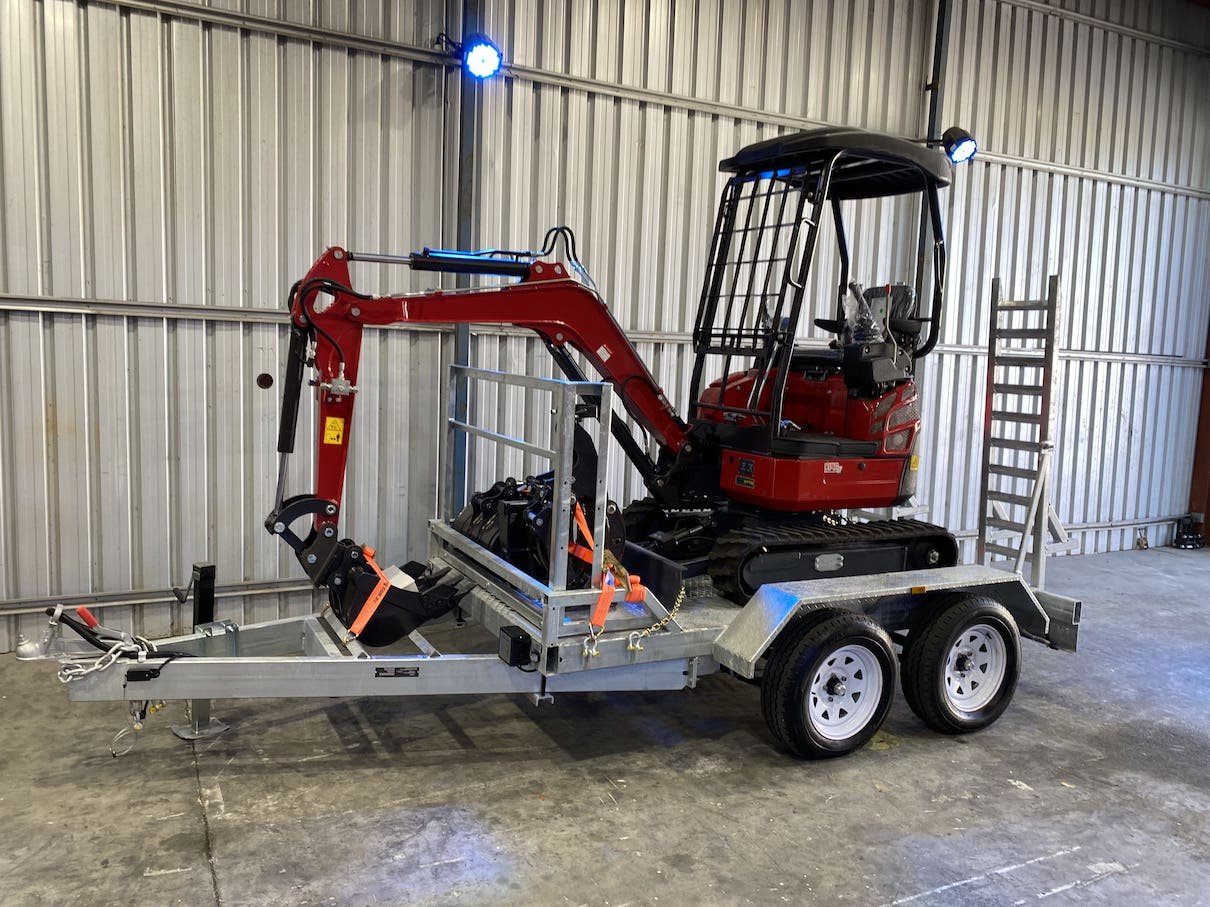

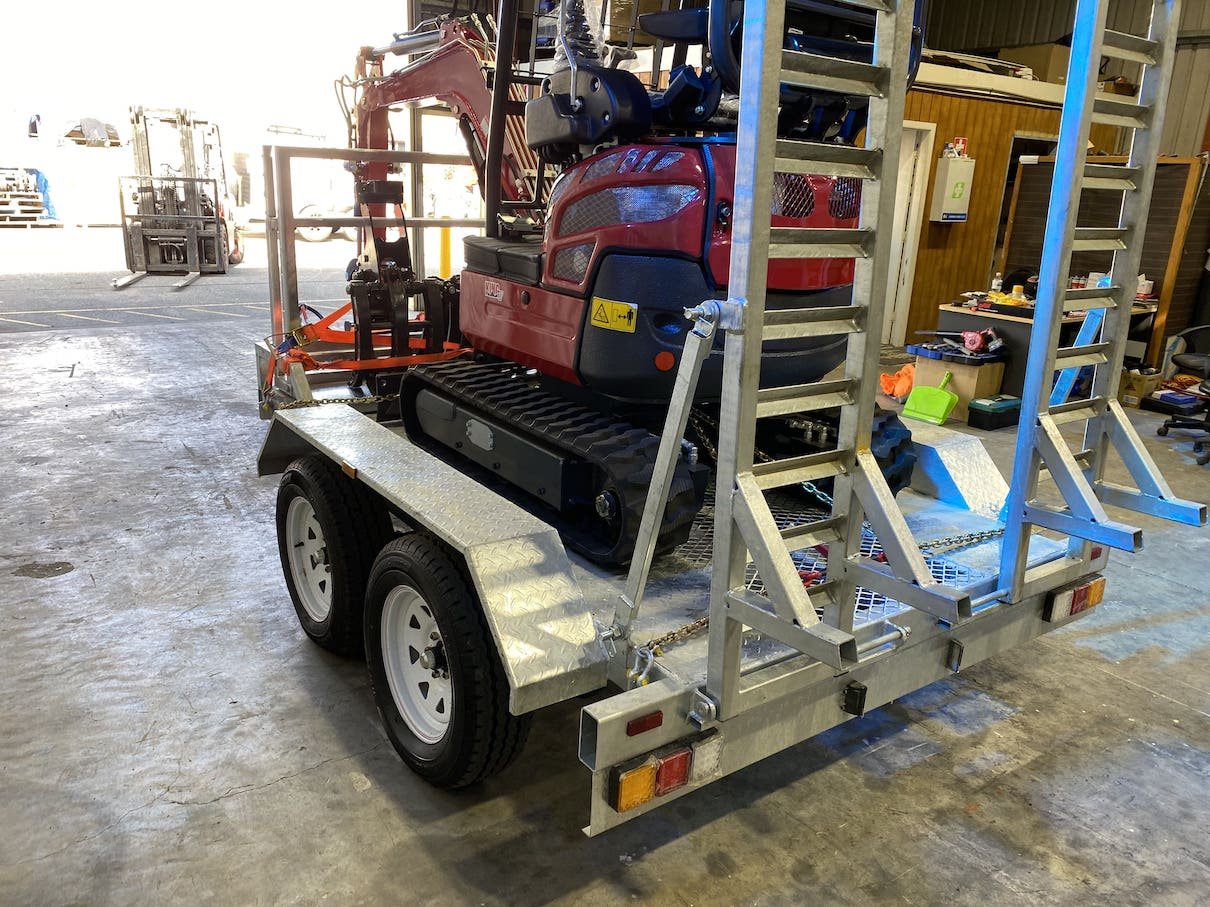

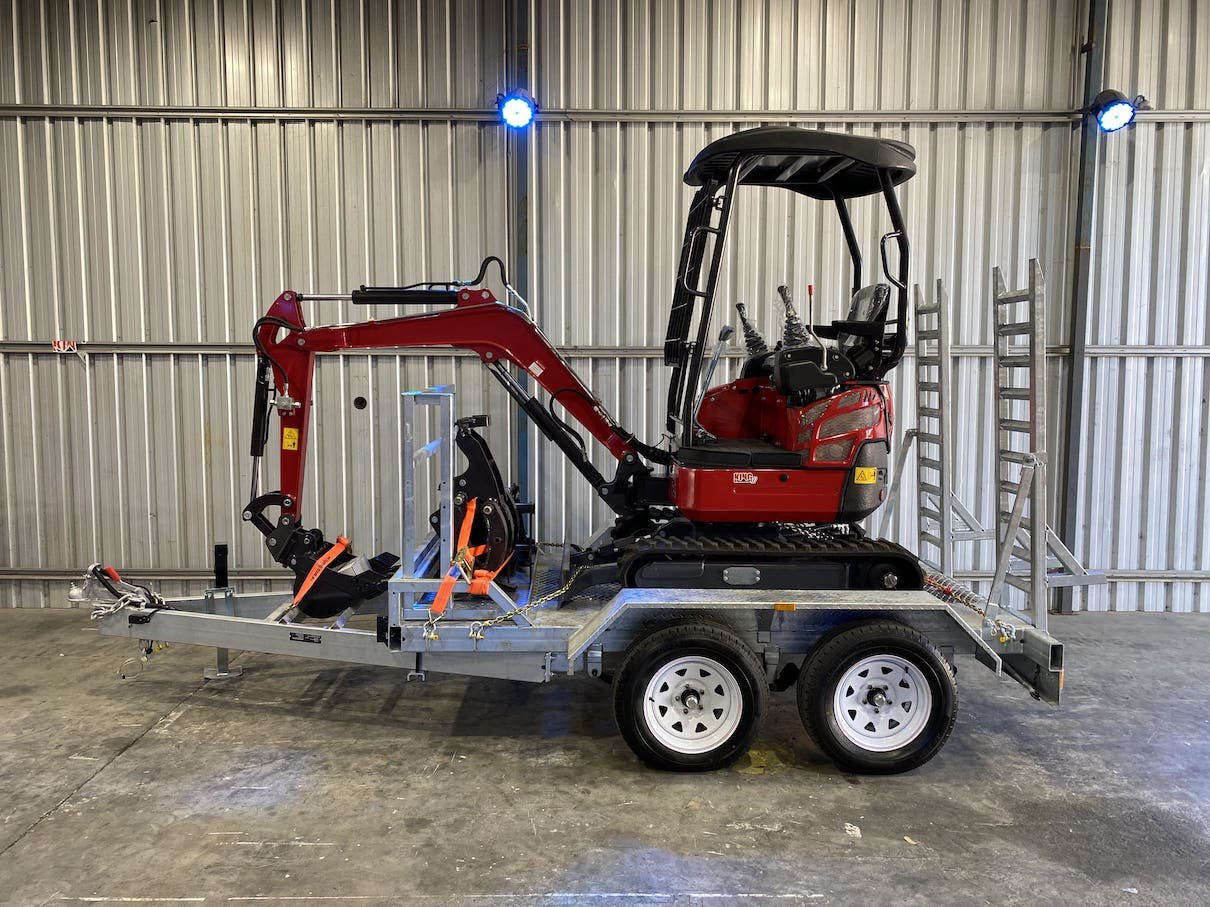

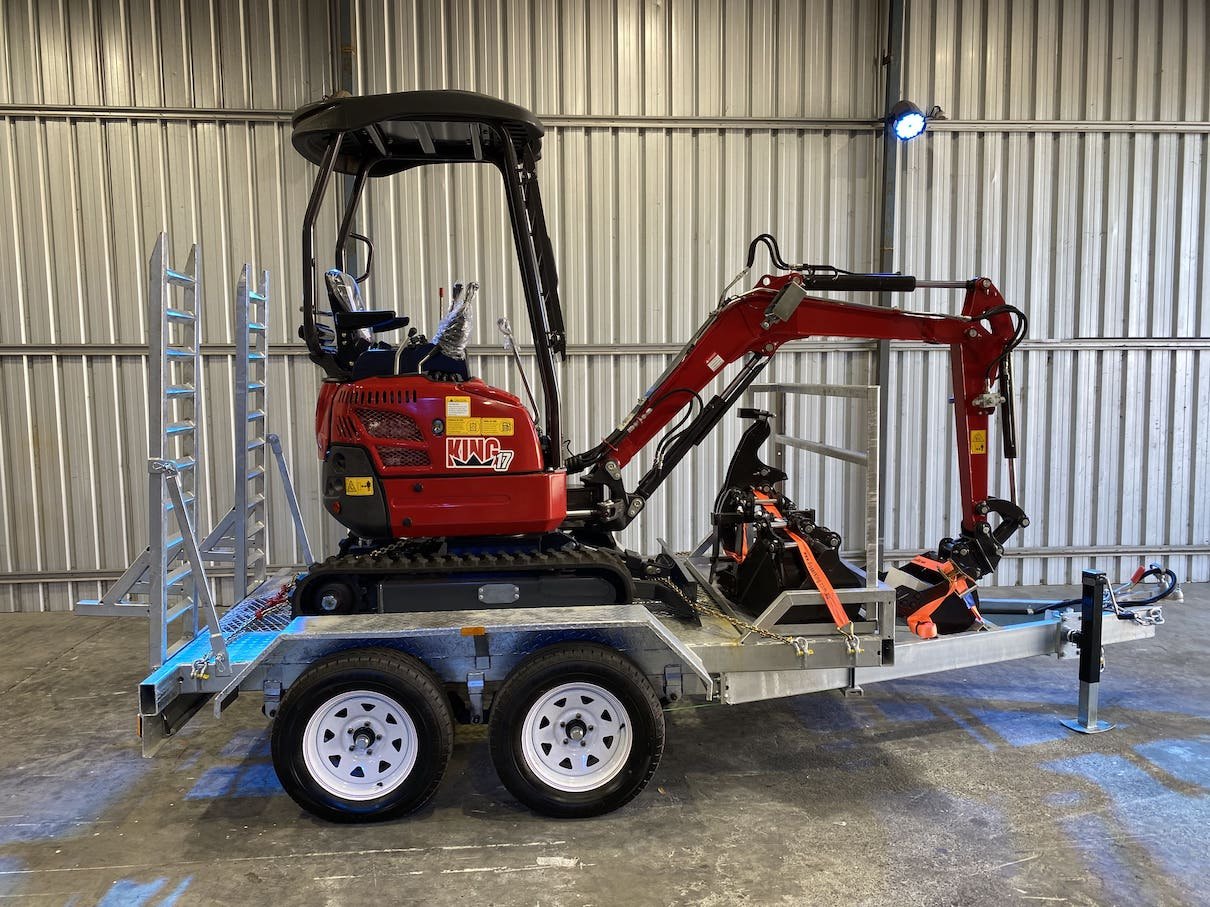

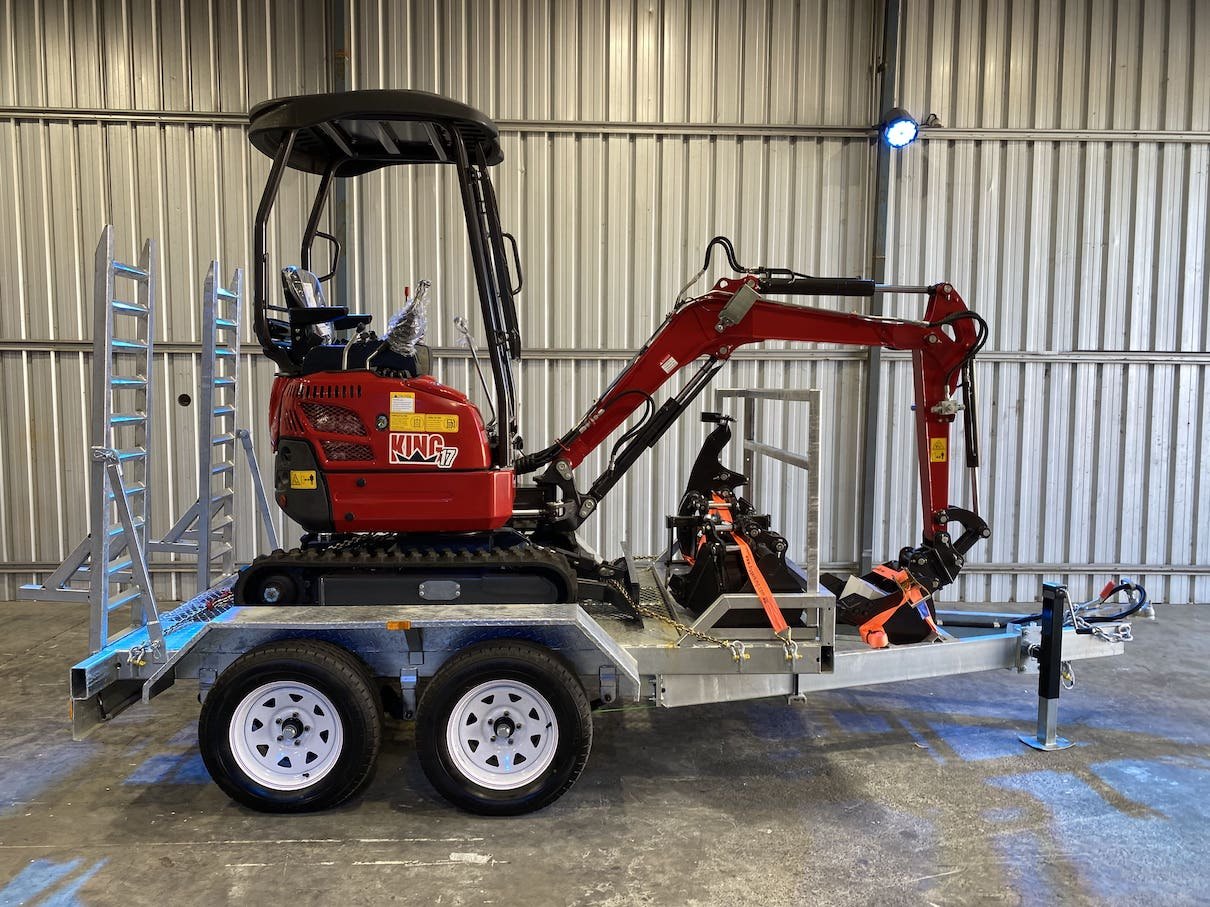

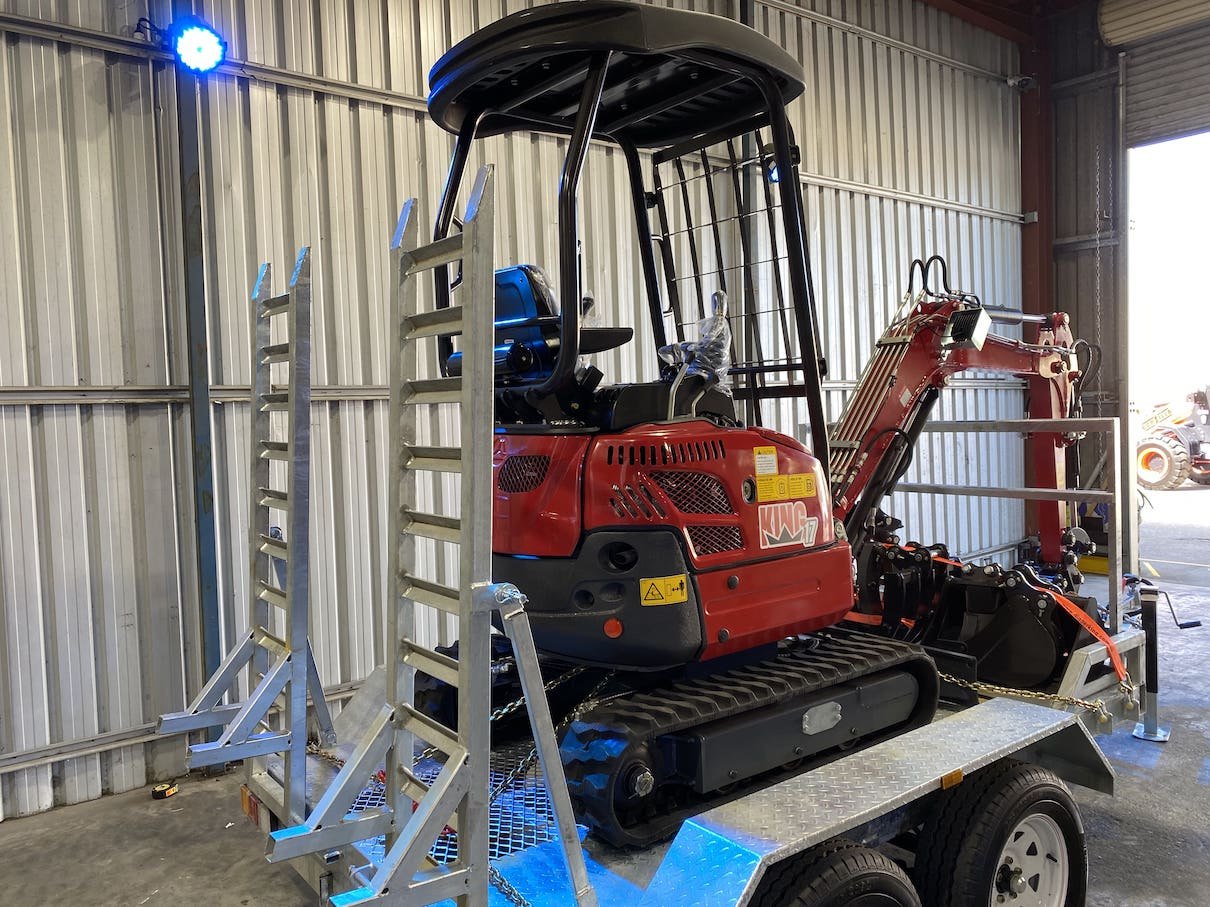

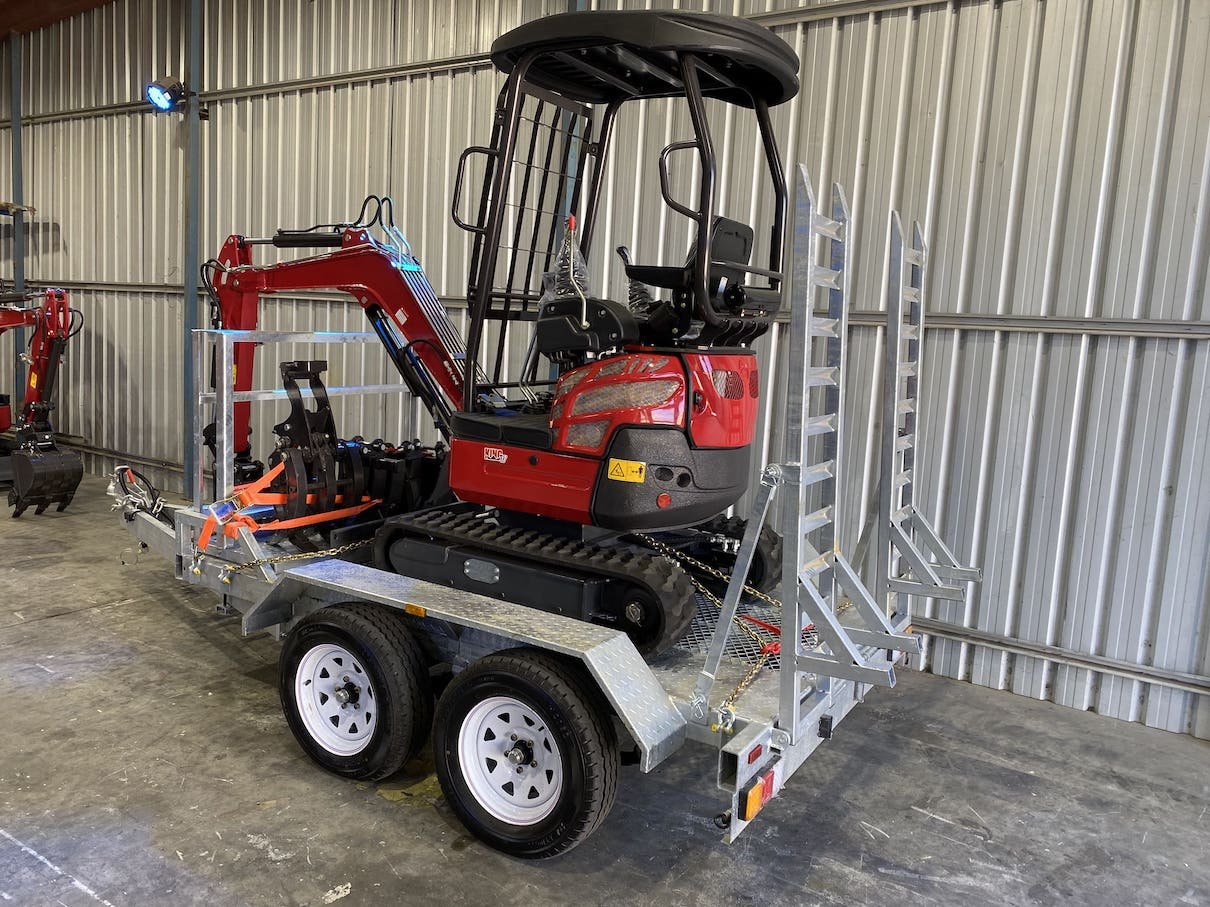

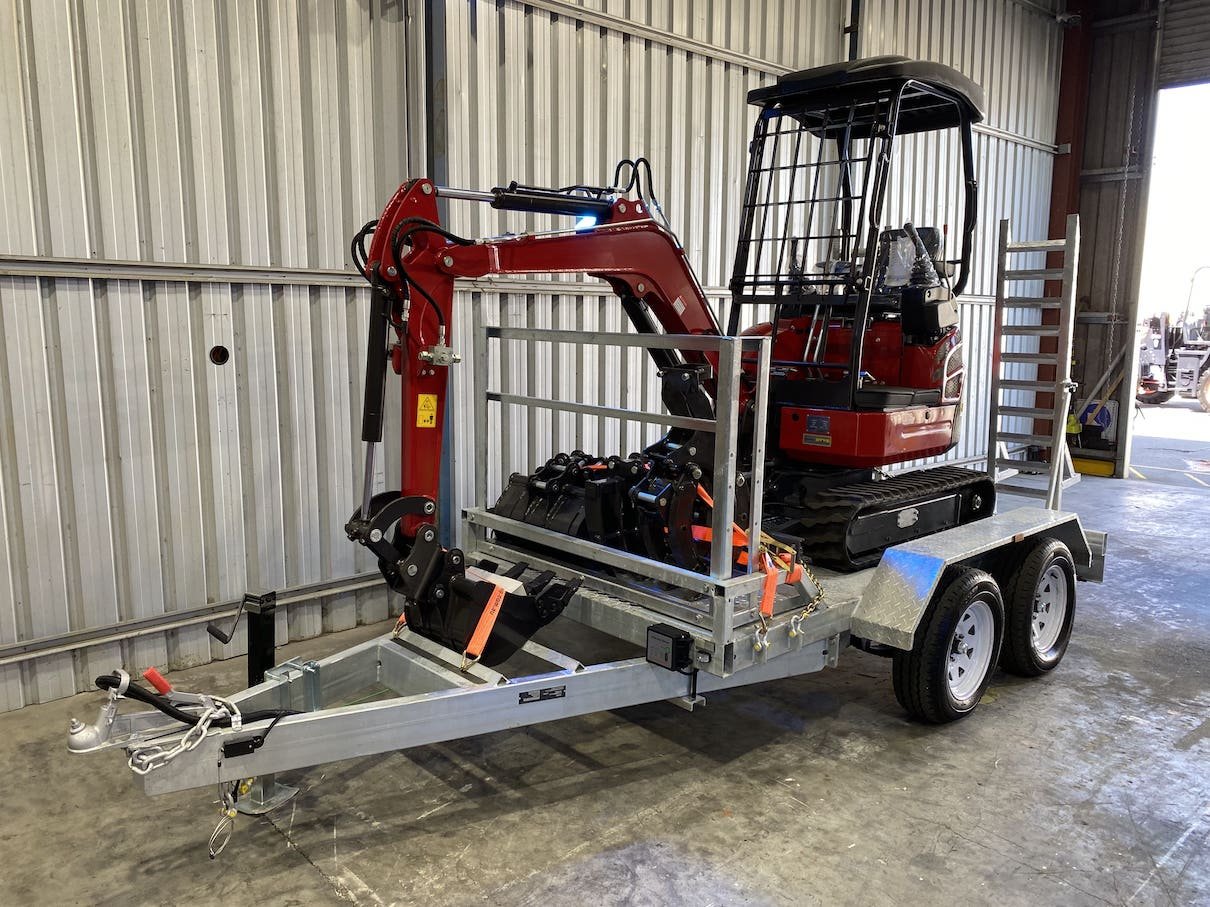

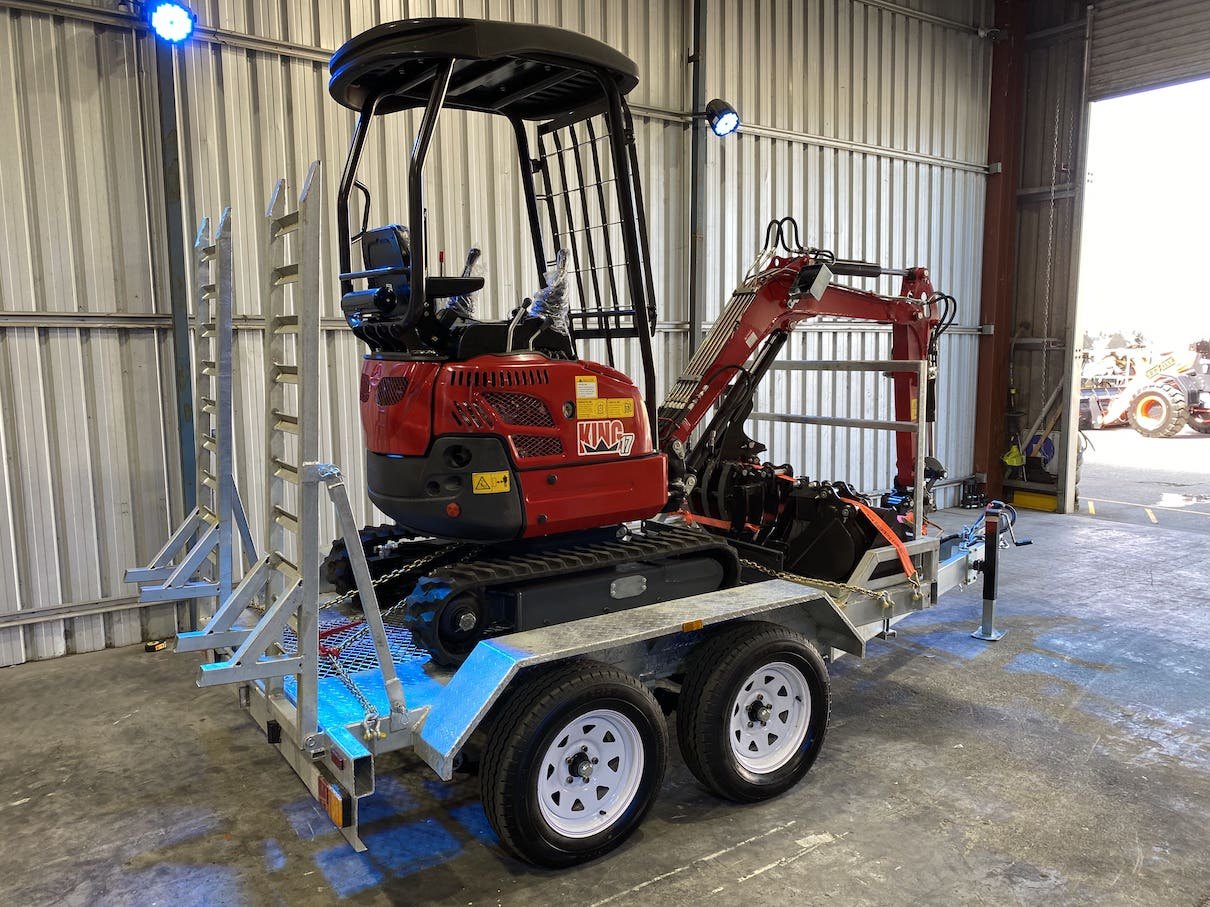

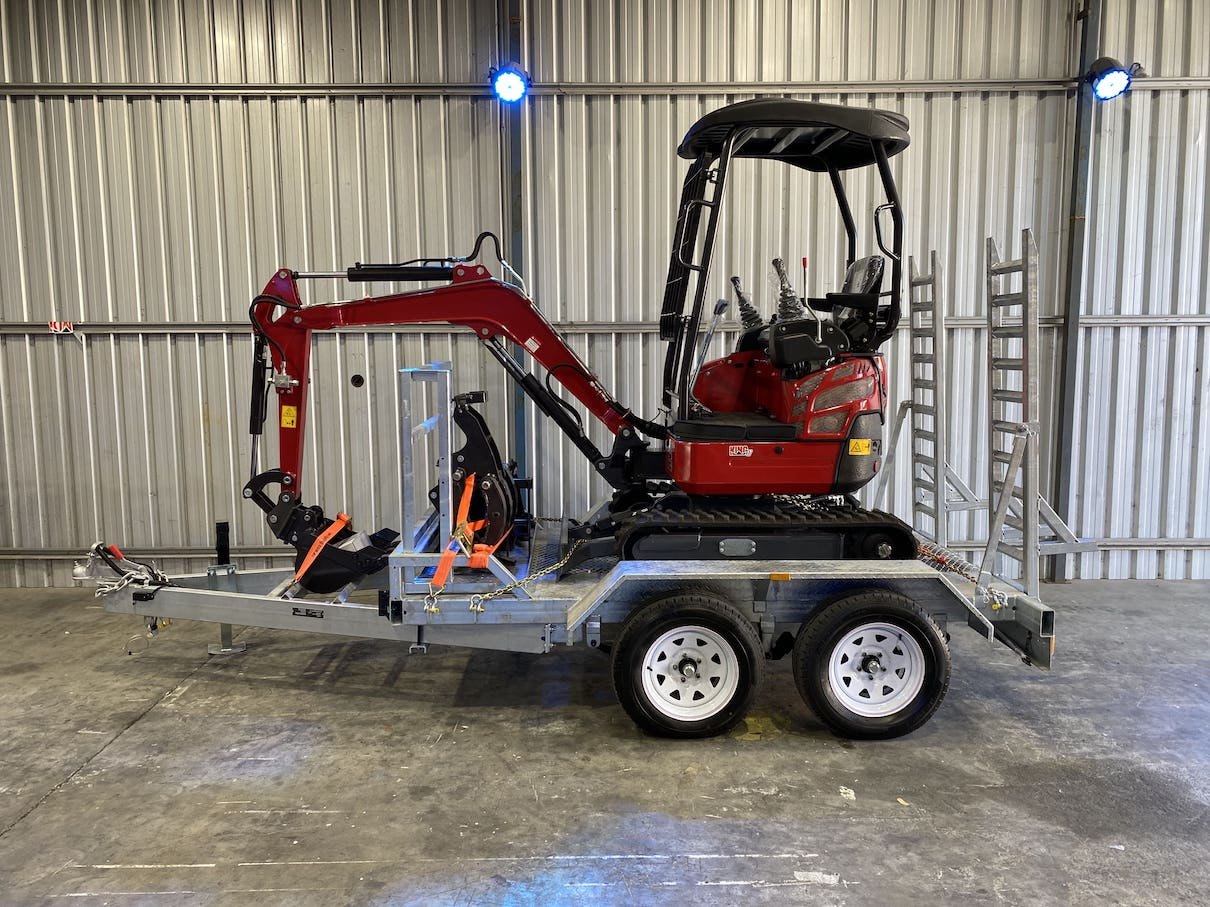

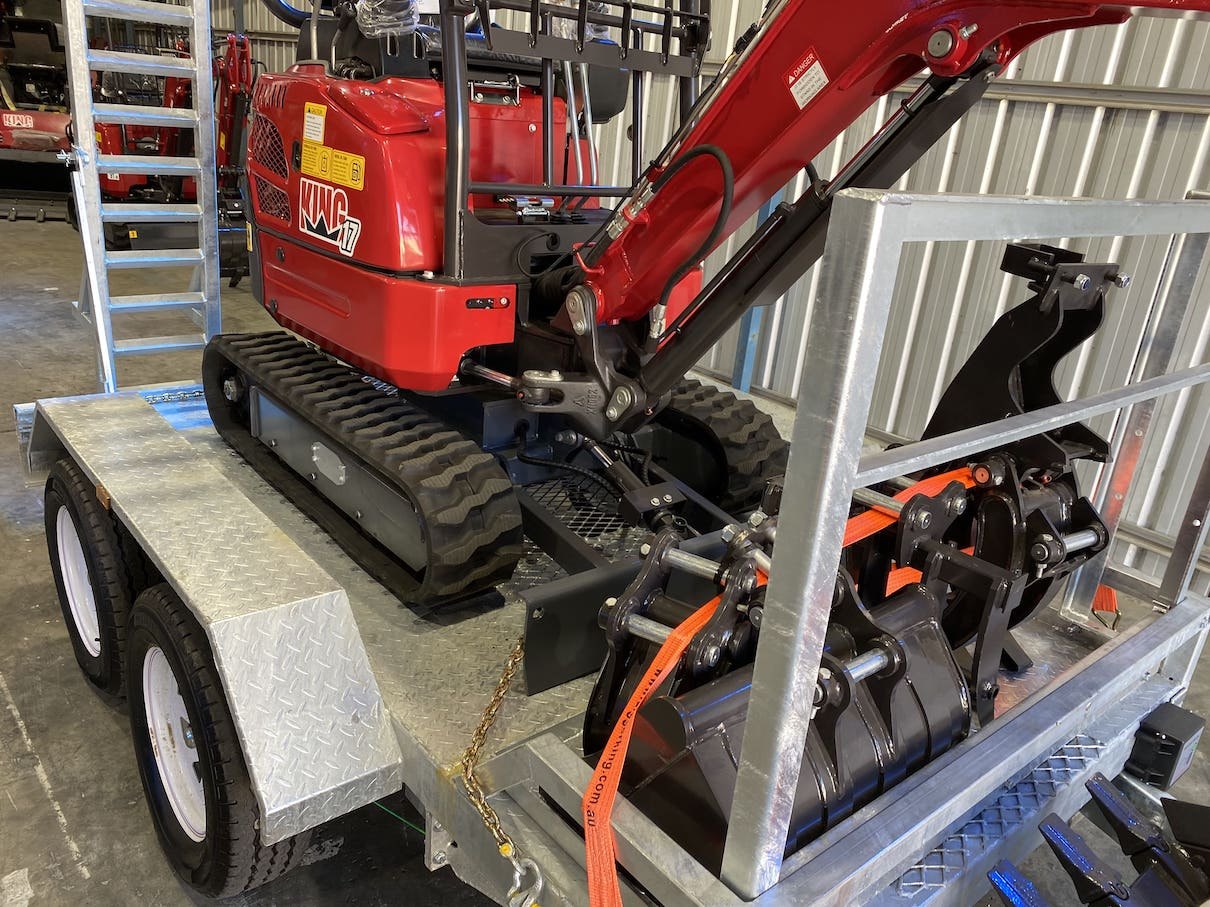

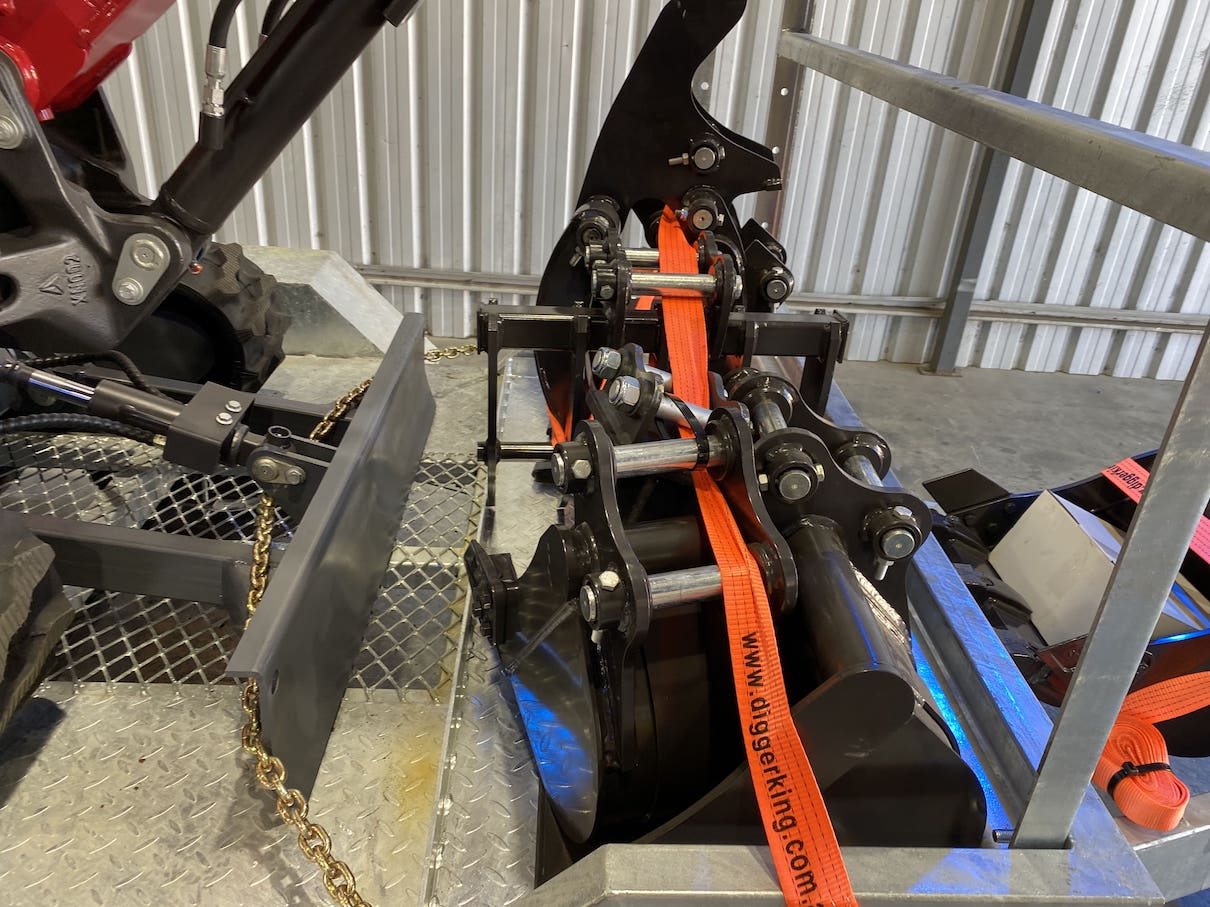

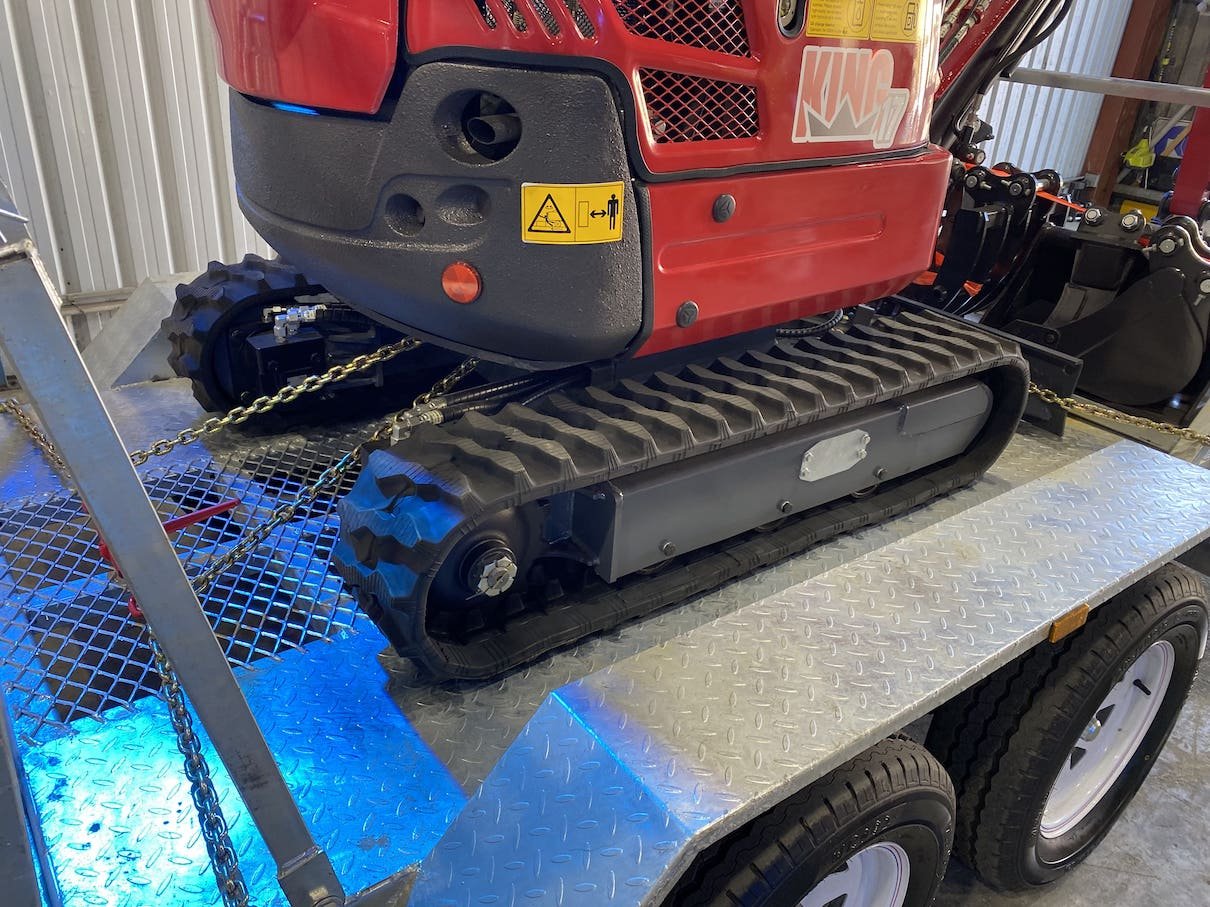

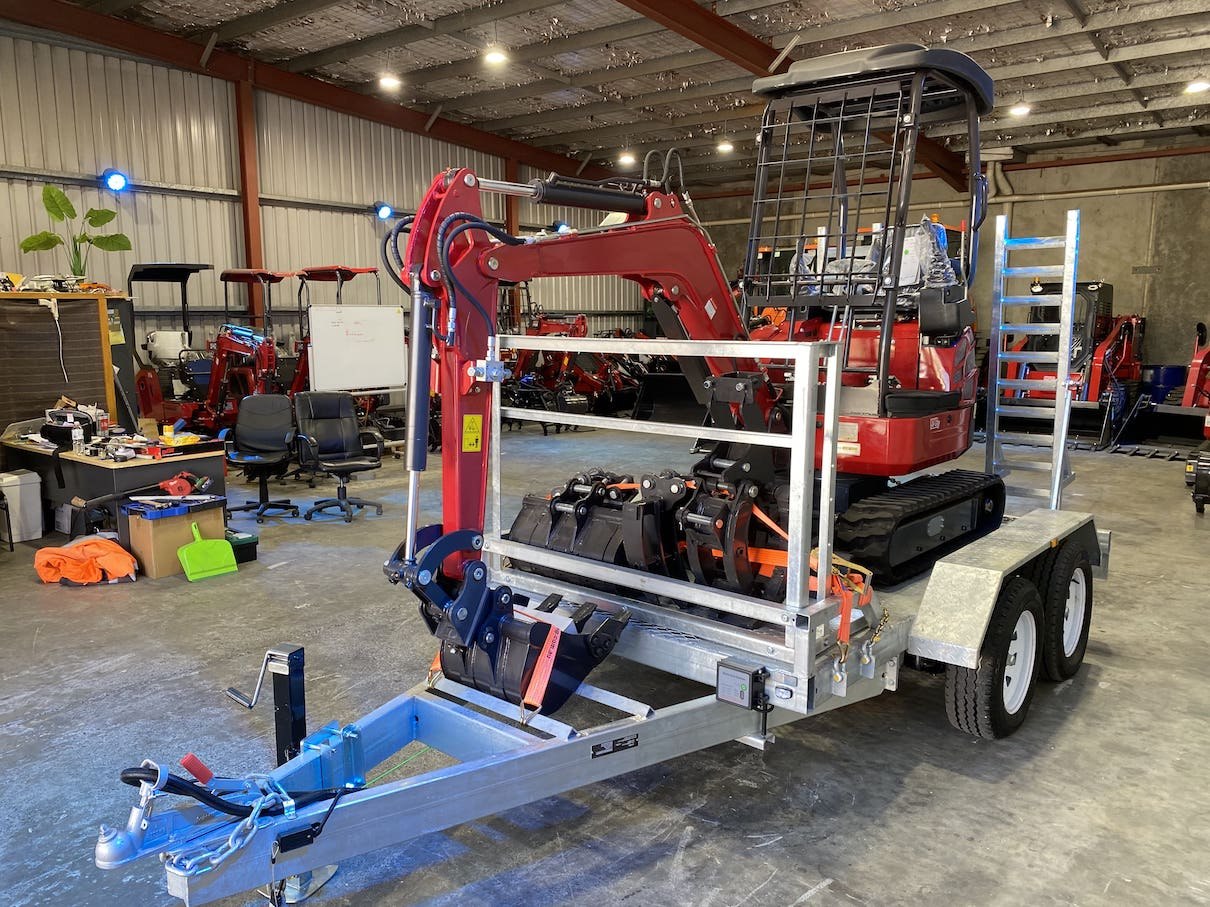

Full specs and video tour of the XL Digger Tipper Trailer
Delivery at cost or you can pick up.
We organise custom pricing including the attachments you require in your package, then raise your invoice so everything is clear for you. Once you are happy with everything, you either pay your deposit to go into production, with your balance due once production is complete and your digger is ready for delivery, or if you are applying for finance, you will deal with the finance broker directly to get your loan approved.
Please note: The finance is via a broker; the criteria for applicants is that you need to be a permanent resident or citizen, and either working PAYG, or have had income on an ABN either as a sole trader or through your company. Unfortunately Centrelink and Disability Pension do not qualify for finance.
Operating Weight | 1650 |
Bucket Capacity | 0.045 |
Bucket Type | Backhoe |
Kubota | 1400 |
Displacement | 0.854 |
Engine power / rpm | 14HP / 2200 |
Max. Torque | 51.9 / 1600 |
km / h | 1.5 |
Swing Speed rpm | 11 |
Max. Grade Ability | 30° |
Max. Digging Force kN | 10.5 |
Bucket Digging Force kN | 6.5 |
Max. Tractive Force kN | 13.5 |
Ground Pressure kPa | 35 |

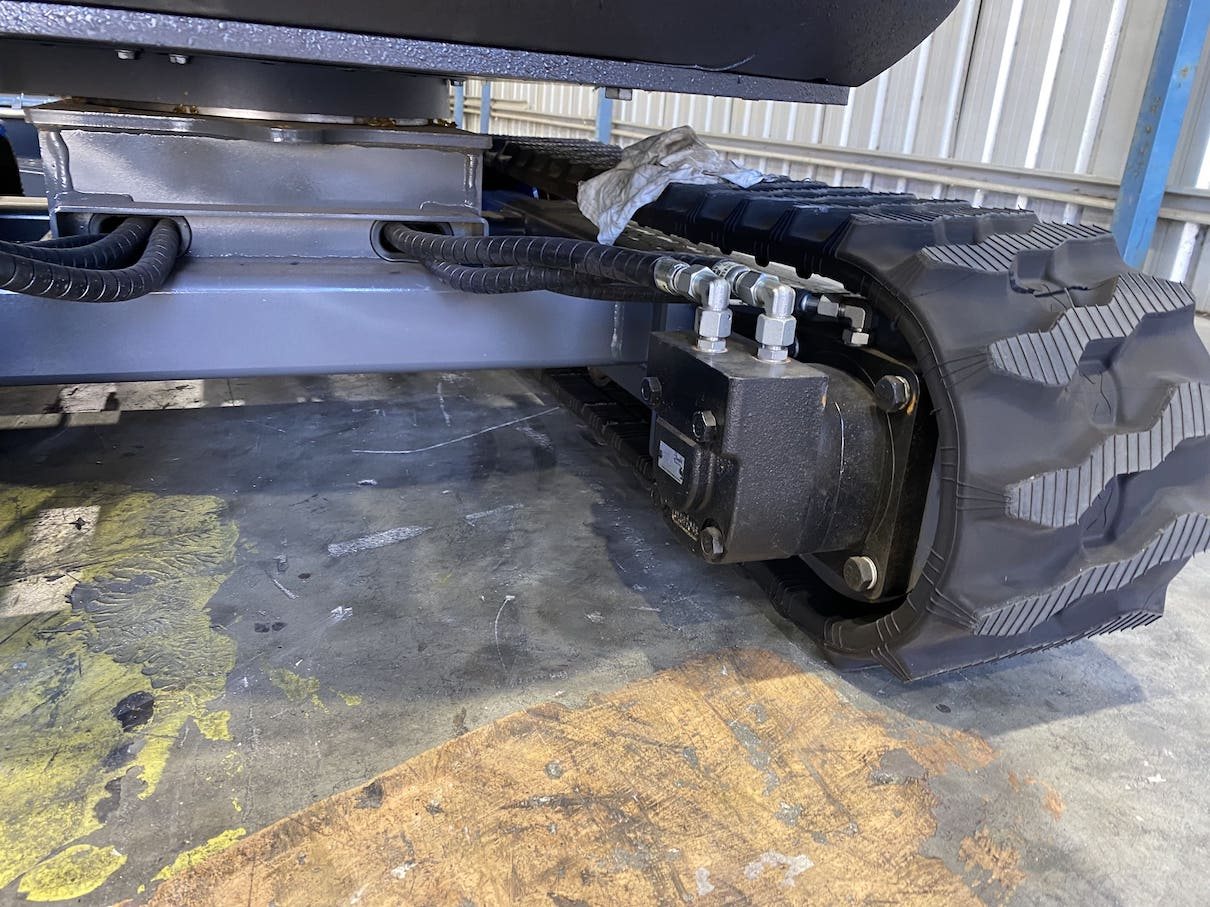

Track Material | Rubber |
Crawler Tension Device | Butter Oil Cylinder |
Breakout Force | 12.5 kN |
Pump Type | Gear Pump |
Pressure | 16Mpa |
Displacement | 23.3 L/min |
Capacity of Hydraulic Tank | 15.3 L |
Engine Oil Capacity | 2.8L ( 1.3 )L |
Fuel Tank Capacity | 19L |
Max. Digging Radius on Ground | 3470 |
Max. Digging Radius | 3560 |
Max. Digging Depth | 2150 |
Max. Digging Height | 3275 |
Max. Dumping Height | 2310 |
Min. Vertical Digging Depth | 1740 |
Min. Turning Radius | 1440 |
Max. Lift of Dozer | 262 |
Max. Depth of Dozer Blade | 192 |
Wheel Track | 1130 |
Track Length | 1450 |
Upper Chassis Ground Clearance | 437 |
Counter Weight Turning Radius | 740 |
Chassis Width | 1110 |
Track Width | 230 |
Track Length | 320 |
Transportation Length | 3160 |
Height of Seat to Ground | 1637 |
Total Height | 2377 |
